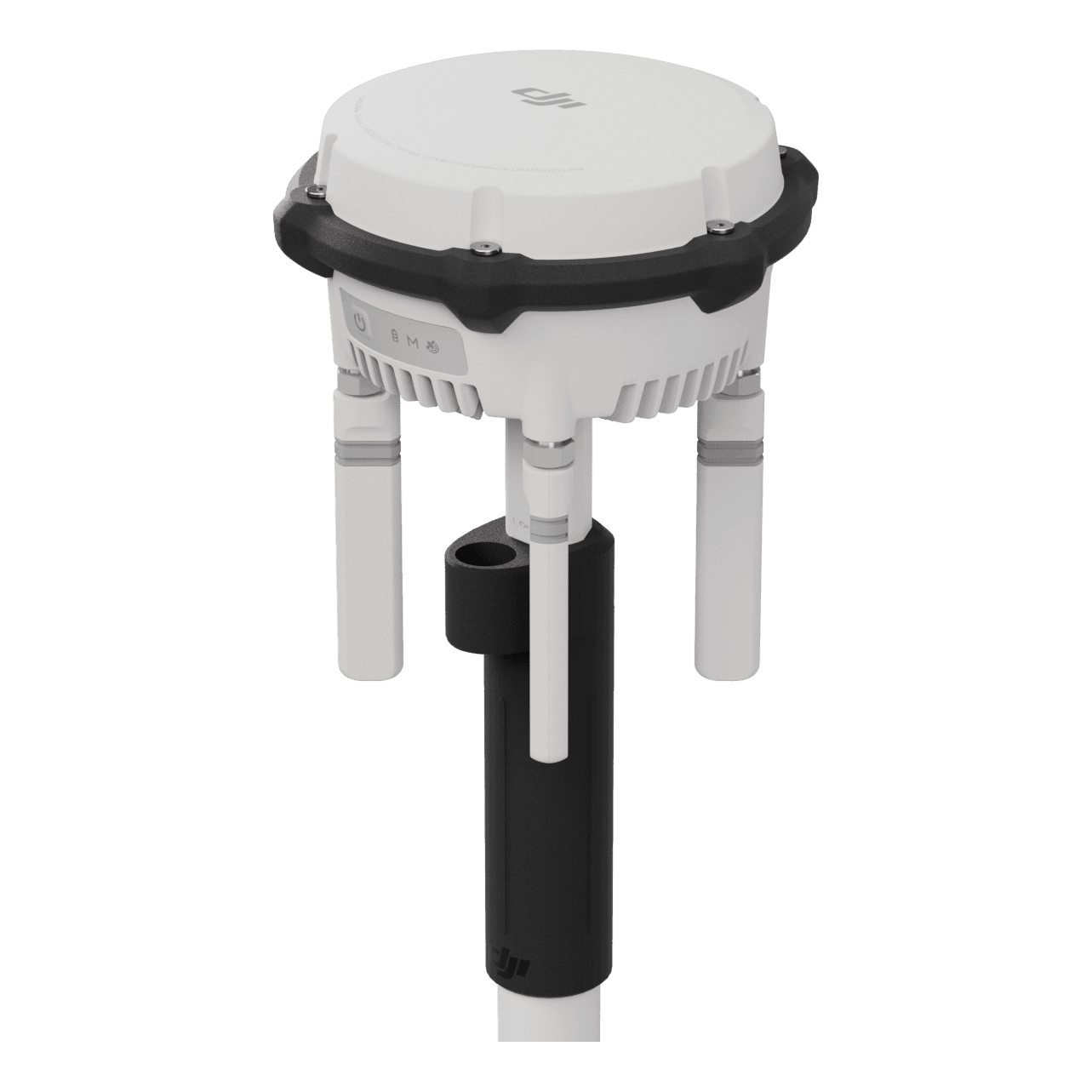

DJI D-RTK 3 AG Mobile Station
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The DJI D-RTK 3 AG Mobile Station is the agriculture version of the D-RTK 3, and the base station DJI pairs with the Agras T100, T70P and T25P. It delivers centimetre-level RTK positioning without configuring coordinates: stand it up, activate it from the DJI Agras app, and the aircraft flies to the line.
- Broadcast mode over O4 2.4G/5.8G, with a 15 km effective signal range (FCC) and 12 km (SRRC)
- Five constellations plus L-Band — GPS, BeiDou, Galileo, GLONASS and QZSS. Network RTK calibration to 0.8 cm horizontal and 1.5 cm vertical (RMS)
- Satellite-based PPP where there is no network coverage: 30 cm horizontal, 40 cm elevation, after a 20-minute convergence
- 7 hours on the 6500 mAh battery, recharged in 2.5 hours at 30 W — a full spray day on one charge
- IP67 housing, built to live in the ute and stand in the paddock
Use RTK for repeatable swath lines, accurate terrain following and prescription-map work, and to stop striping and overlap on long runs.
Broadcast mode only. If you need relay mode, rover mode, or an Enterprise aircraft such as the Matrice 4 series or FlyCart 100, the D-RTK 3 Multifunctional Station is the one you want. To extend an Agras signal, DJI sells the O4 Relay separately.
Mobile station only — the survey pole and tripod are not included.
