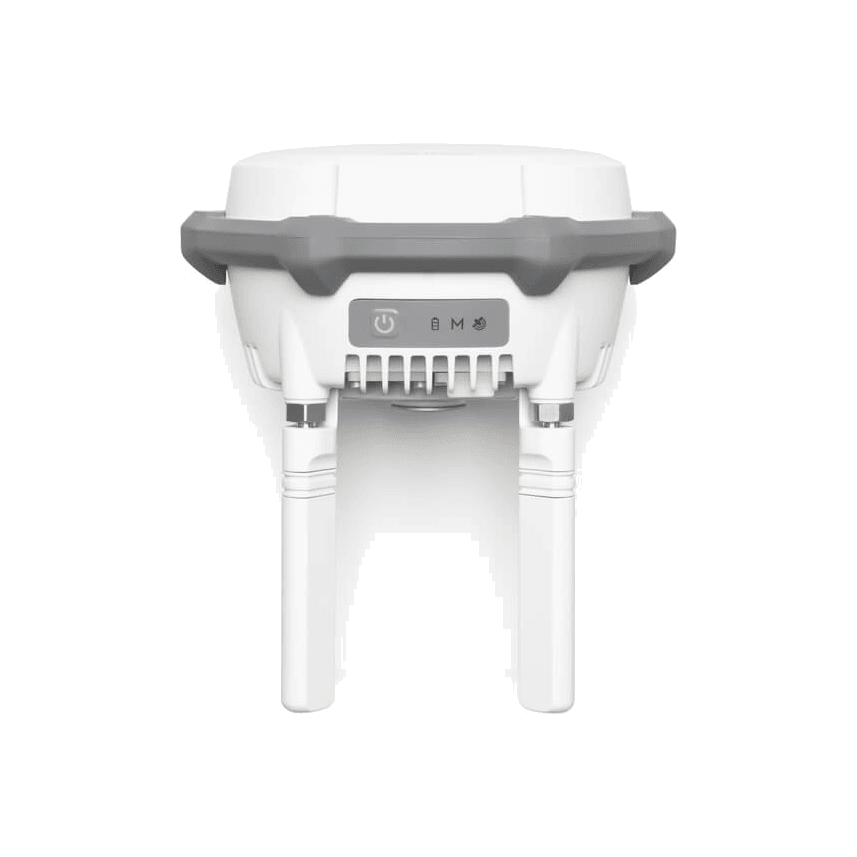

DJI D-RTK 3 Multifunctional Station

The DJI D-RTK 3 Multifunctional Station is the Enterprise version of the D-RTK 3. Where the AG version runs one mode, this one runs three: base station, relay and rover.

• Relay mode extends coverage to around 25 km, or three to five times the range through heavy obstruction. Station to Matrice 400 reaches 40 km (FCC); every other aircraft 15 km (FCC)

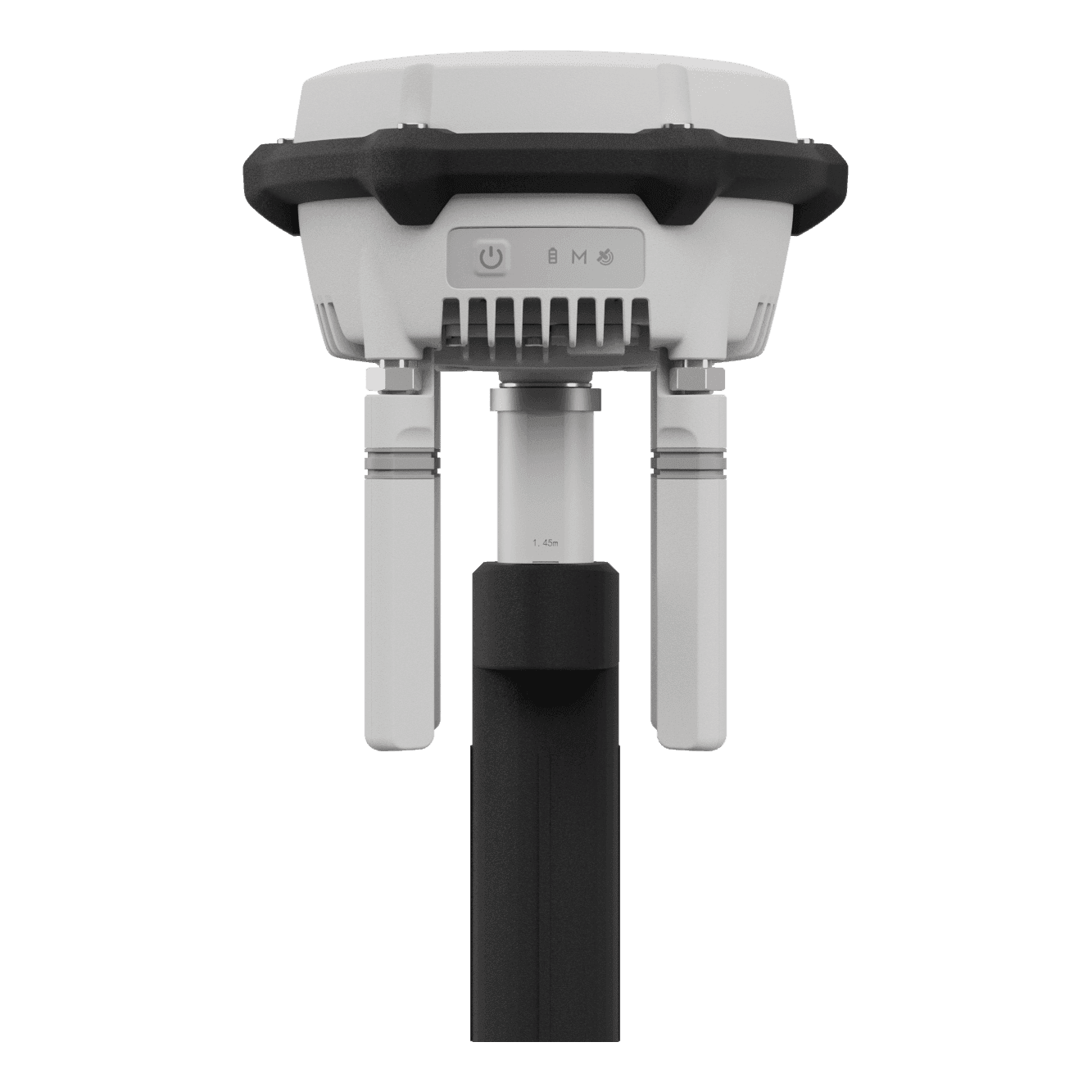

• Rover mode turns it into a survey instrument: walk the pole, collect ground control points, tilt survey from 0–60°, pair over Bluetooth to an Android device, then solve locally in DJI Terra
• Base station mode across five constellations plus L-Band on 19 frequency points. RTK fixed accuracy 0.8 cm horizontal and 1.5 cm vertical (RMS), +1 ppm
• 6500 mAh battery: 4 hours relaying, 7 hours as a base station, 10 hours roving. PoE for fixed deployment, with roughly 2 hours of internal reserve if the power drops
• IP67, rated to survive a 2 m drop with the pole, and to run from −20°C to 55°C

Supported on the Matrice 400, Matrice 4E/4T and 4D/4TD, Matrice 3D/3TD, Matrice 300/350 RTK, Matrice 30 series, Mavic 3 Enterprise, Inspire 3, Dock 3 and FlyCart 100, and as a base station for the Agras T50/T25, T40/T20P and FlyCart 30.

Flying an Agras T100, T70P or T25P? Those pair with the D-RTK 3 AG Mobile Station instead, which costs less and sets up straight from the DJI Agras app.

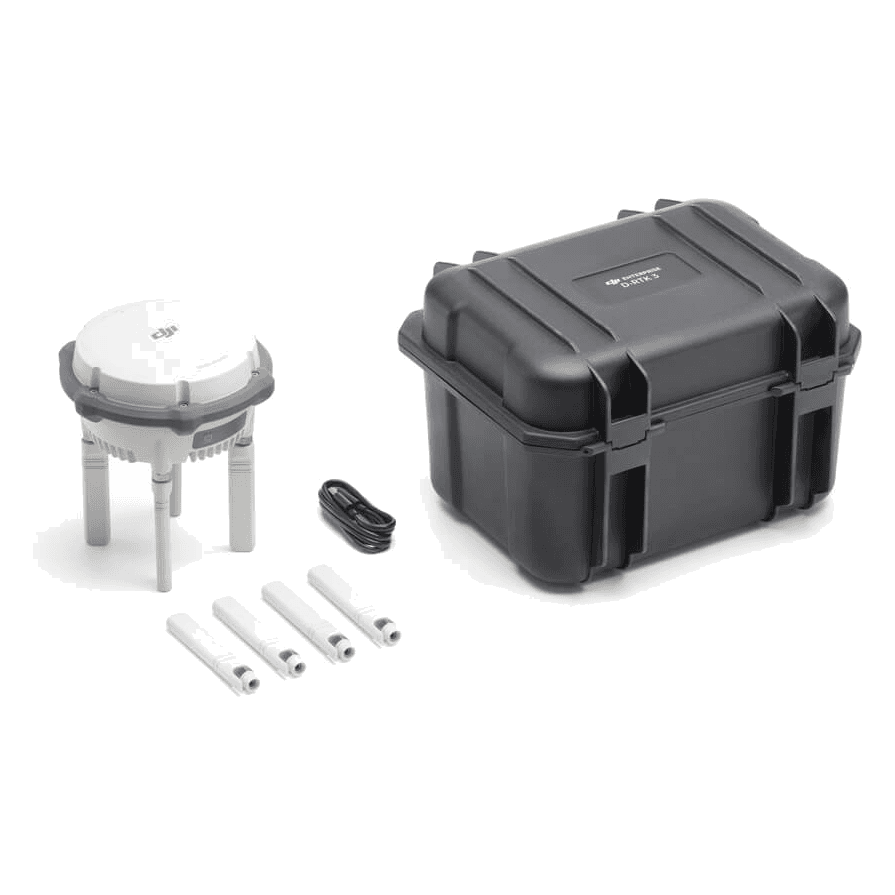

In the box: station, four spare OcuSync antennas, USB-A to USB-C cable and hard case. The survey pole and tripod kit is a separate purchase.
