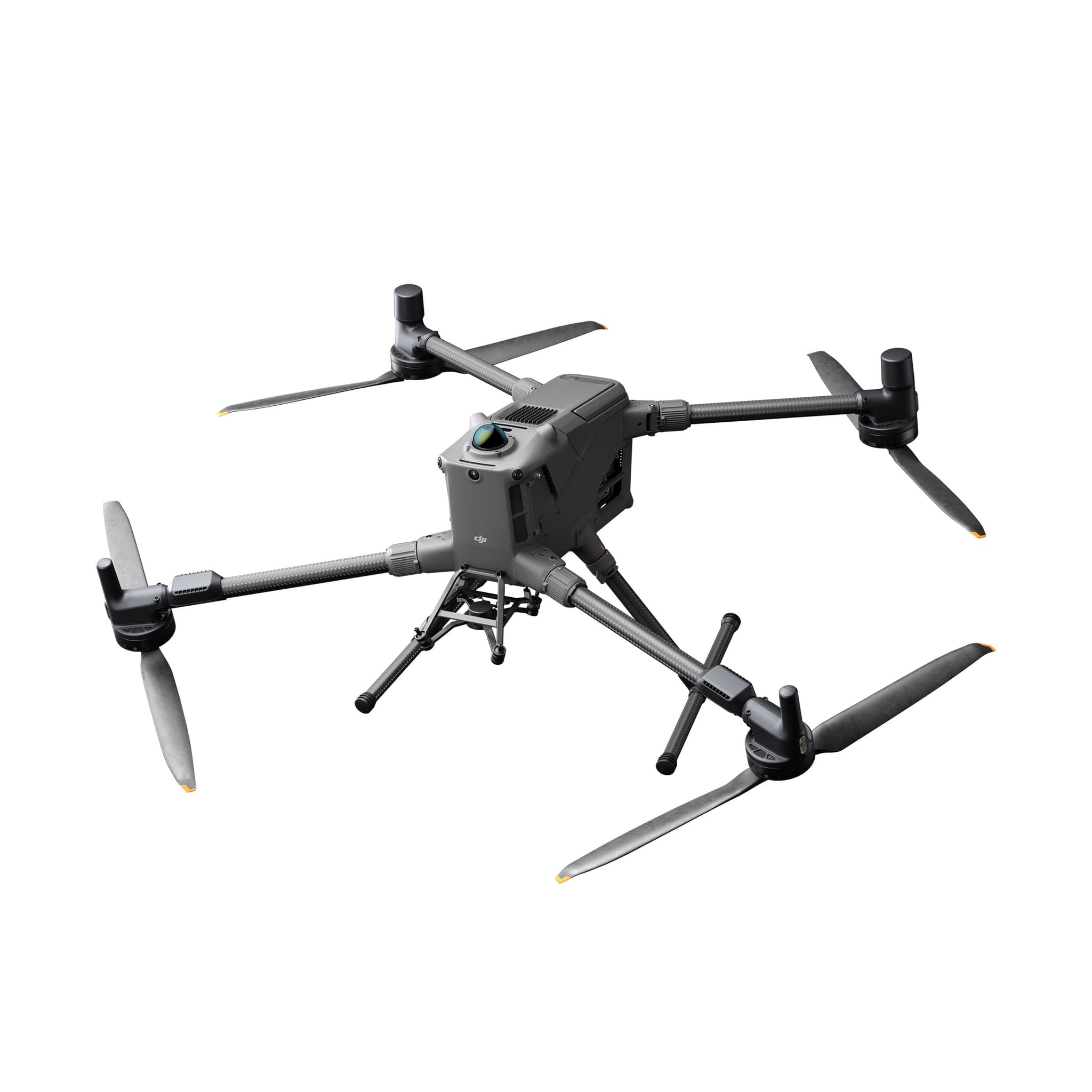

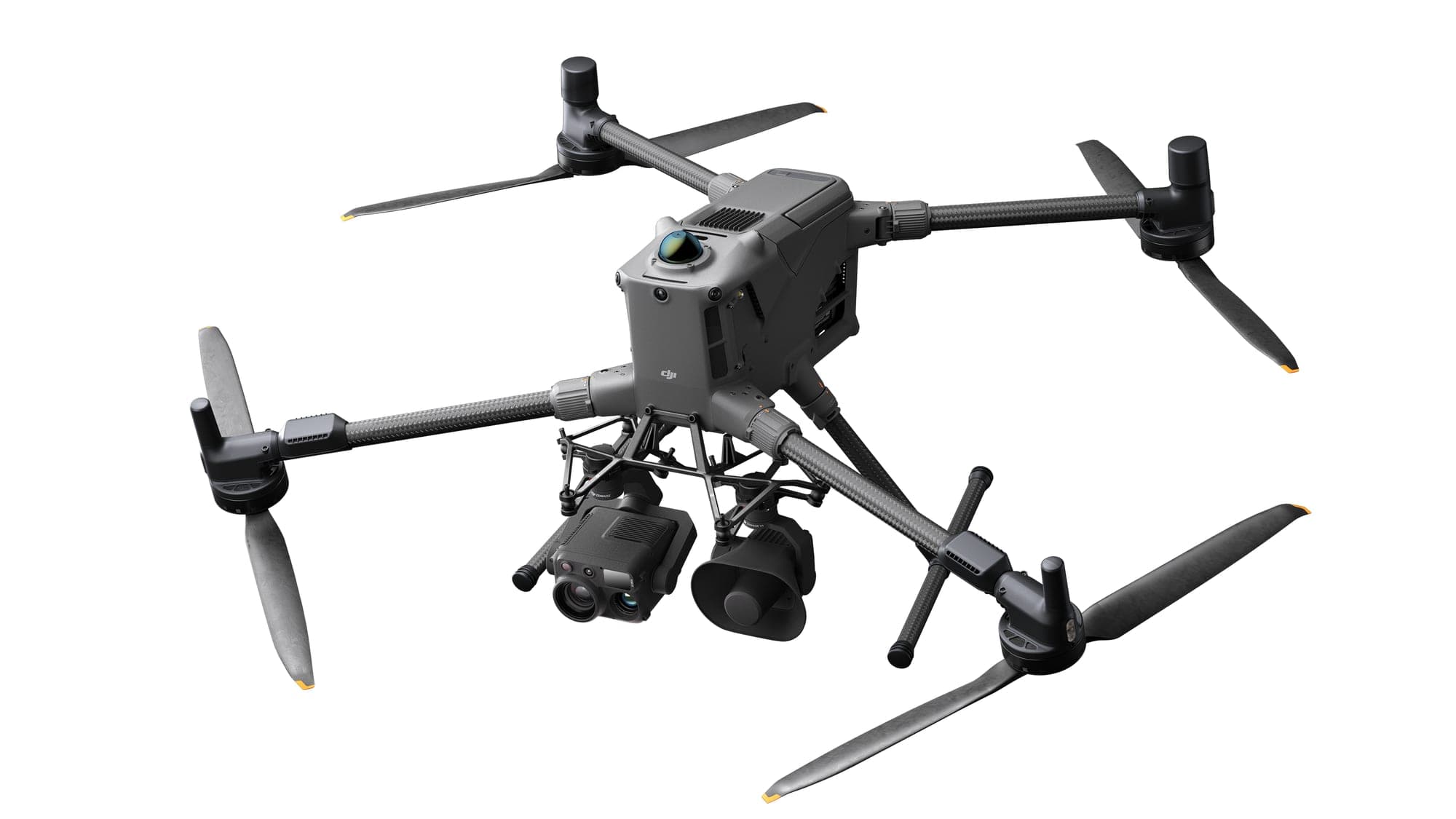

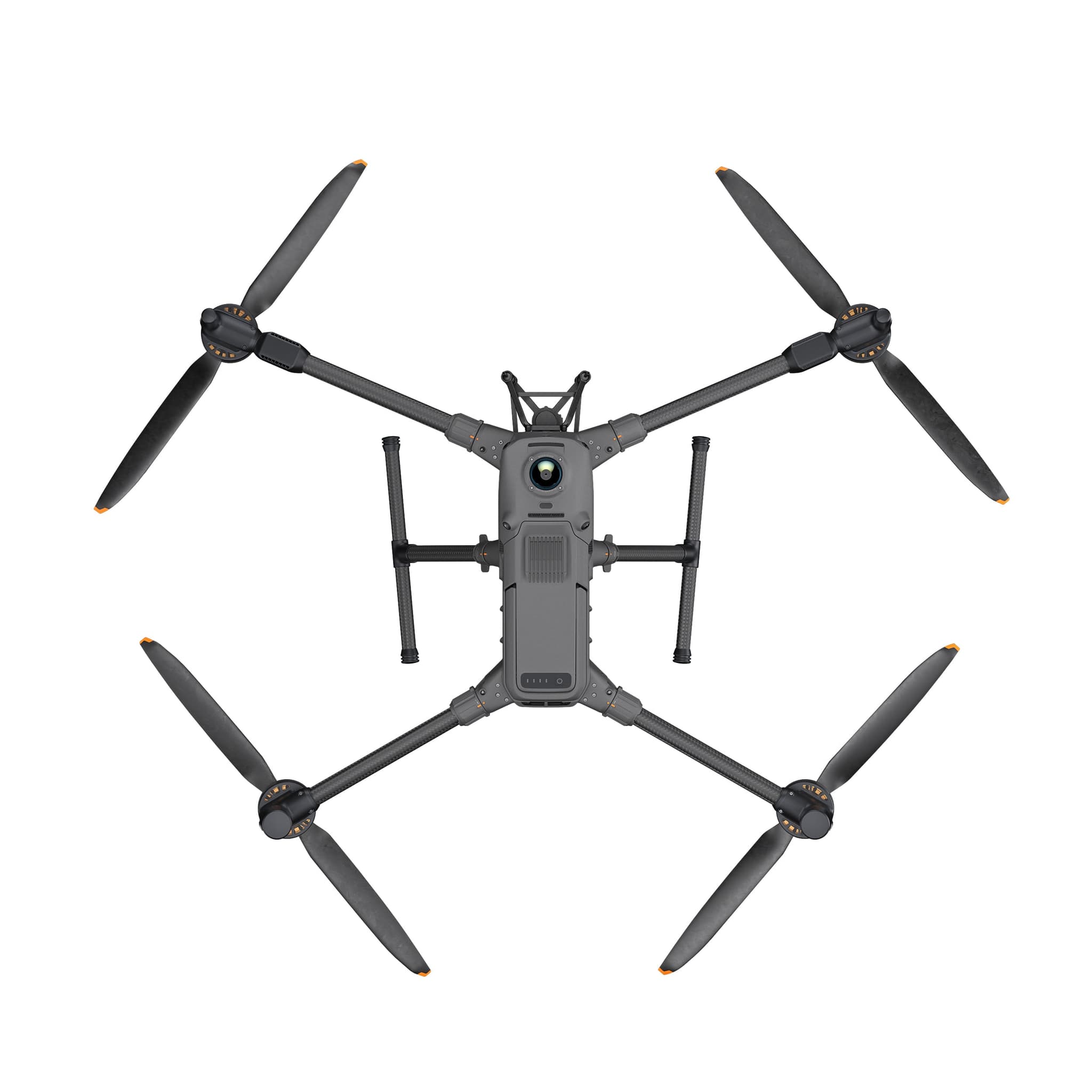

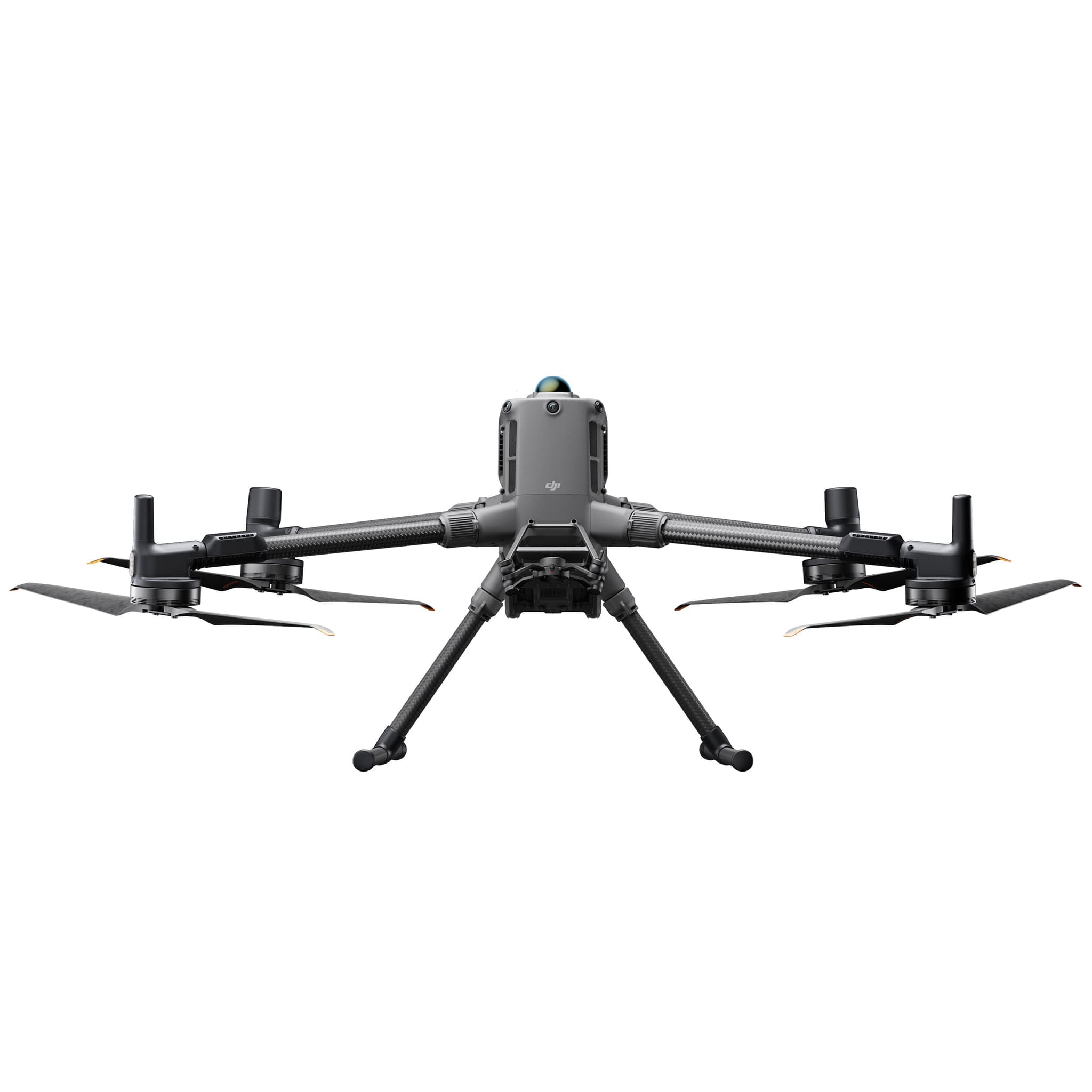

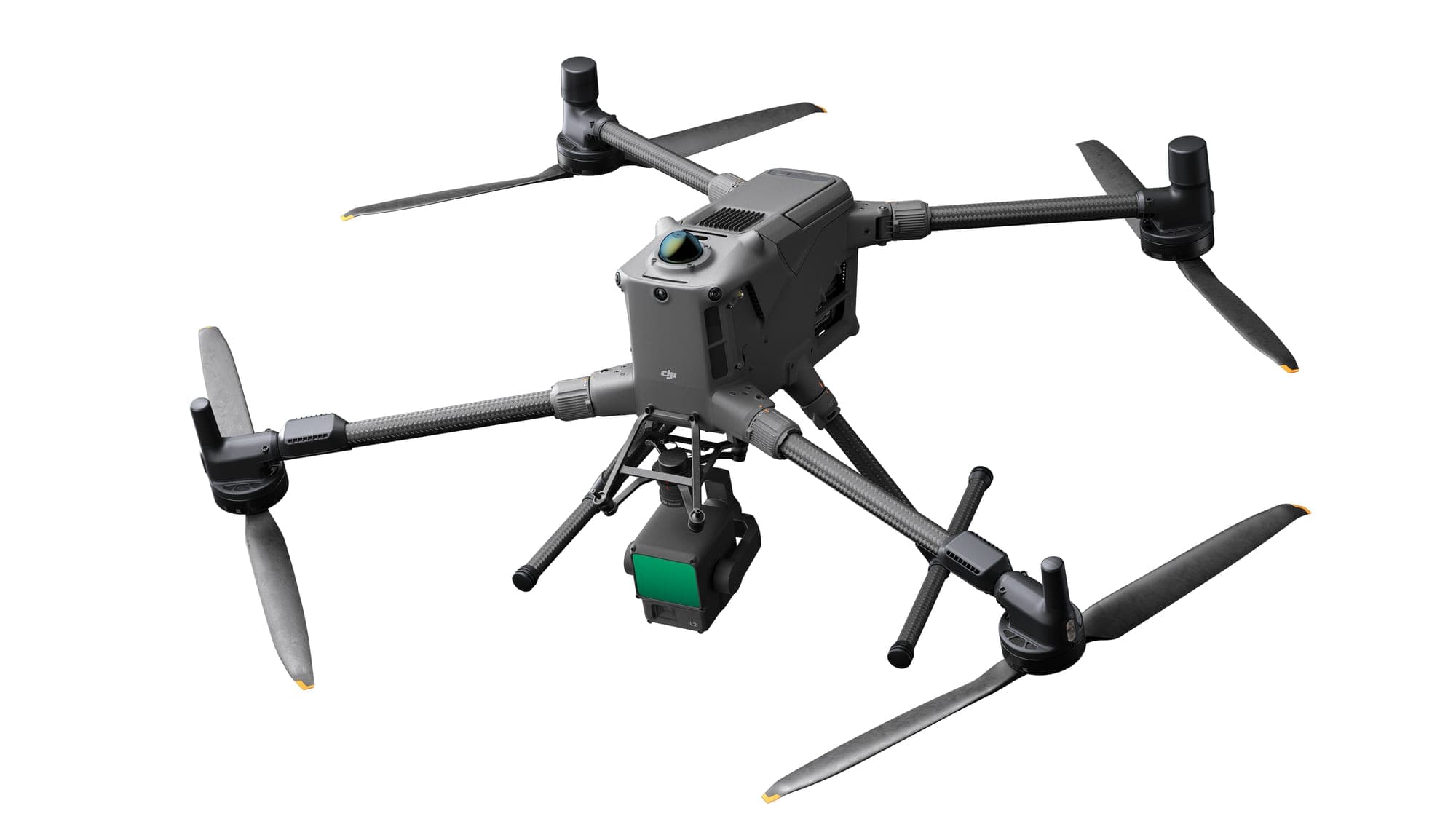

DJI Matrice 400

The flagship that flies for an hour. The DJI Matrice 400 is DJI's most capable enterprise drone, 59 minutes of flight time, a 6 kg payload budget across up to seven simultaneous payloads, and an obstacle-sensing suite that detects a 12 mm wire in rain, fog, or total darkness.

Endurance and payload that change the mission

• 59-minute flight time: around 50% longer than the Matrice 350 RTK, with a 49 km max flight distance
• 6 kg max payload across single, dual, and third gimbal connectors, fly LiDAR + RGB + thermal on one aircraft
• TB100 batteries (977 Wh, self-heating) hot-swap and fast-charge in 45 minutes on the BS100 station
• IP55-rated, −20°C to 50°C, 12 m/s wind resistance, 7,000 m ceiling

Power-line-level sensing

• Rotating LiDAR: 520,000 points/second, spots a 21.6 mm steel-core power line at 35 m in full daylight
• Millimetre-wave radar: detects a 12 mm wire at 36 m and keeps working in rain, fog and snow
• Low-light fisheye vision in every direction plus a starlight-grade FPV camera and built-in ADS-B receiver
• Smart AR projection: powerlines, routes and landing points rendered onto the live feed; AI detection of people, vehicles and vessels

Transmission that goes the distance

O4 Enterprise Enhanced delivers up to 20 km of control range in Australia with three simultaneous 1080p feeds, dual 4G dongle redundancy, and an airborne relay mode where one M400 extends the link for another.

Licensing in Australia

At 15.8 kg MTOW the M400 sits in CASA's small RPA category (under 25 kg): flown commercially under a standard RePL and ReOC with no medium-category type rating required. Our training and licensing courses can set up the pathway for your operation.

Choose your sensor payload

The M400 is a platform, the sensor makes it your tool. Select a configuration above, or talk to us about multi-payload setups:

• Zenmuse H30: 48MP wide + 40MP zoom (34× optical) + laser rangefinder + NIR aux light. The daytime inspection workhorse.
• Zenmuse H30T: adds a 1280×1024 radiometric thermal camera measuring up to 600°C (1,600°C with the optional density filter). The pick for night work, search and rescue, firefighting and powerline thermal inspection.
• Zenmuse P1: 45MP full-frame photogrammetry with mechanical shutter: 3 cm accuracy without GCPs, 3 km² per flight. For survey-grade orthomosaics and 3D models.
• Zenmuse L2: mid-range LiDAR with 5 returns for vegetation penetration and a 20MP mapping camera. For corridors, forestry and terrain under canopy.
• Zenmuse L3: DJI's flagship LiDAR, exclusive to the M400: 16 returns, ±10 mm ranging accuracy, dual 100MP RGB cameras, ~10 km² per flight at 300 m. For large-area survey-grade capture.
• Zenmuse S1 spotlight & V1 speaker: 10,000-lumen light and 129 dB speaker for public safety and SAR, mountable alongside a camera on the dual gimbal.

Specifications

Max flight time	59 minutes (53 min hover)
Max payload	6 kg, up to 7 simultaneous payloads
Compatible payloads	Zenmuse H30 / H30T / P1 / L2 / L3, S1, V1
Obstacle sensing	Rotating LiDAR + mmWave radar + low-light vision
Wire detection	12 mm wire at 36 m (radar), 21.6 mm at 35 m (LiDAR)
Transmission	O4 Enterprise Enhanced, up to 20 km (CE) / 40 km (FCC)
Battery	1 × TB100 (977 Wh, self-heating, hot-swap)
Charge time	45 min fast charge on BS100 station
Positioning	RTK 1 cm + 1 ppm (H) · ADS-B In
Protection	IP55 · −20°C to 50°C
Max speed	25 m/s
MTOW	15.8 kg, CASA small RPA category
Controller	DJI RC Plus 2 Enterprise Enhanced

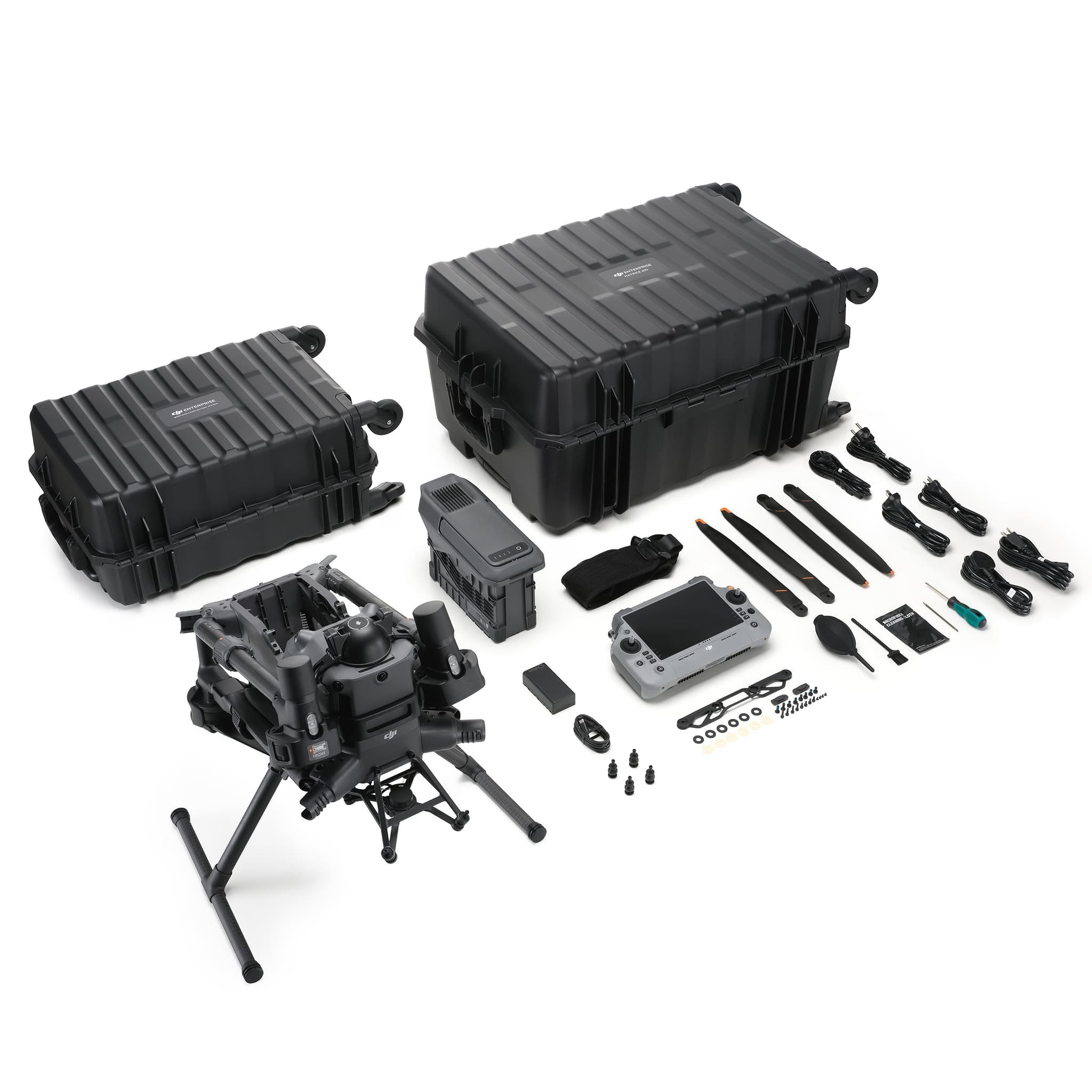

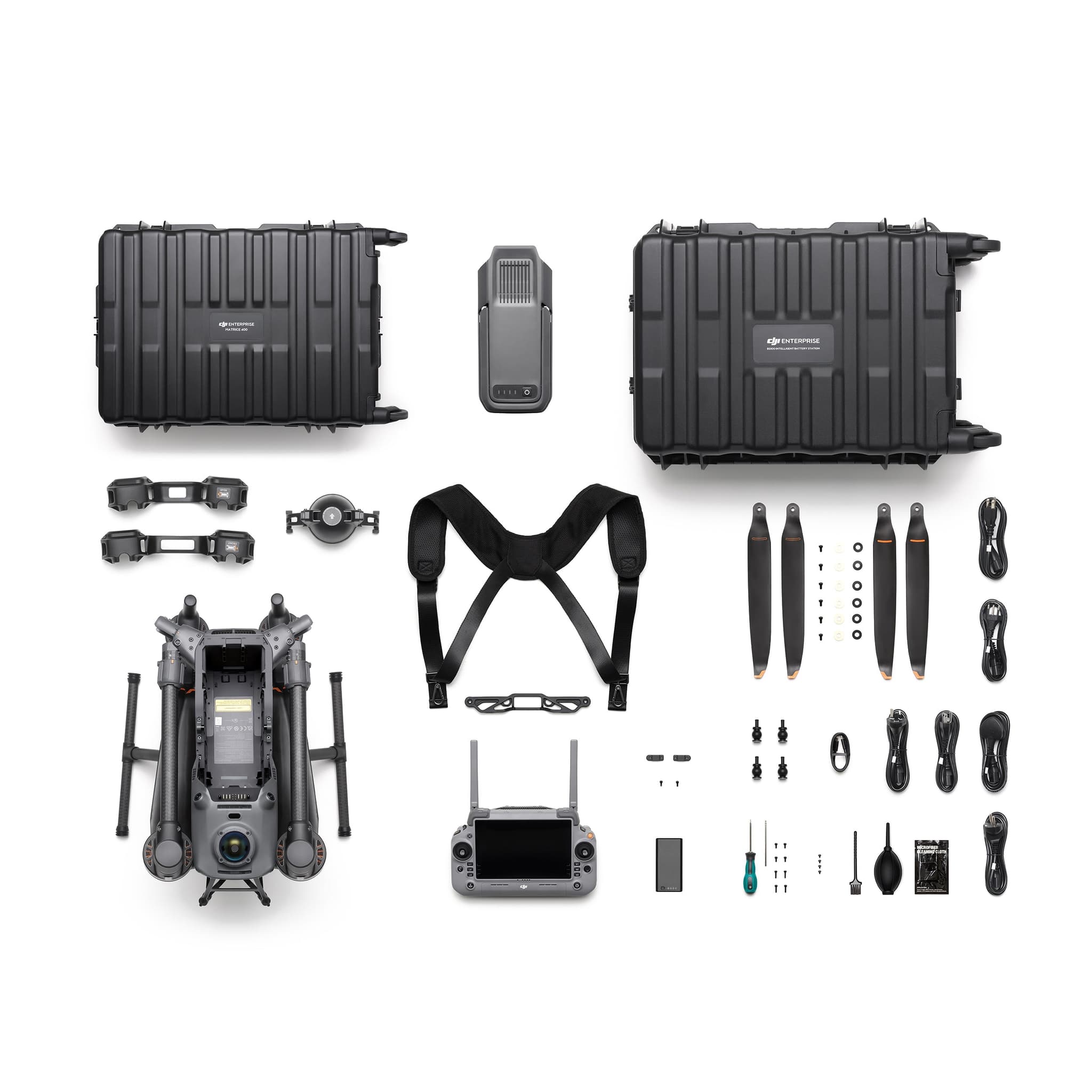

What's in the base package

• Matrice 400 aircraft with RC Plus 2 Enterprise Enhanced controller
• Carrying case, propellers, cables and tools
• Note: flight batteries are not included in the base aircraft package, choose a bundle configuration or add TB100 batteries and the BS100 station
