T50 Flow Meter Water
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

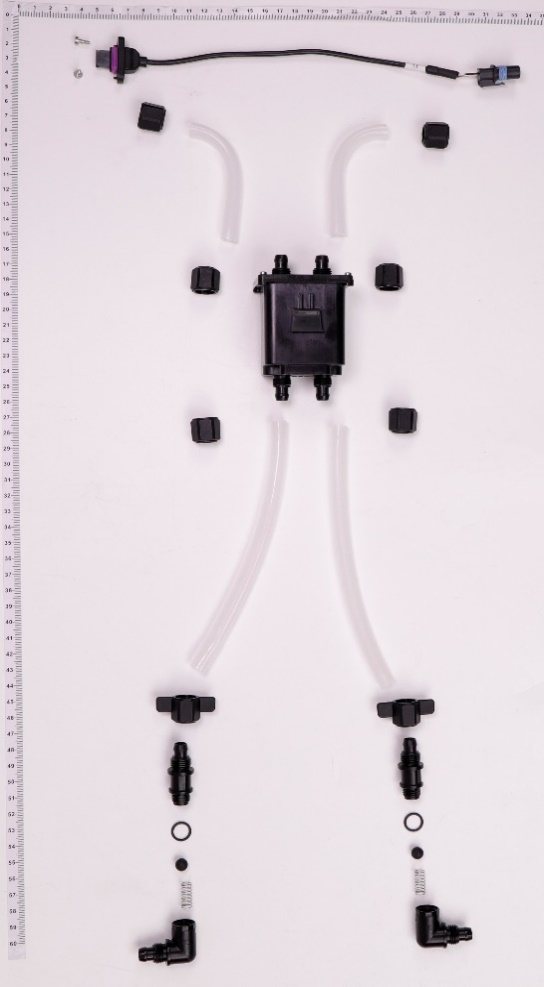

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 2 | Flow Meter Signal Cable YC.XC.XX000839 | — | |
| 3 | Hose Nut YC.JG.ZS002255 | — | |
| 4 | Impeller Pump Right-Angle Connector YC.JG.JS000022 | — | |
| 5 | Flow Meter Module (Including Signal Cable) BC.AG.SS000545 | — | |
| 6 | Flow Meter Water Outlet Curving Connector YC.JG.JS000027 | — | |
| 7 | Thumb Nut YC.JG.ZS002534 (now supplied as YC.JG.ZS003594) | — | |
| 8 | Hose Right-Angle Connector YC.JG.ZS002428 | — | |
| 9 | Pump_Connector Sealing Ring YC.XJ.QT000350 | — | |
| 10 | Sealing Ball YC.JG.MY000705 | — | |
| 11 | Spring YC.JG.TT000098 | — | |
| 12 | Impeller Pump Curving Connector YC.JG.ZS002348 | — | |
Flow Meter Signal Cable YC.XC.XX001004 | — | ||
Flow Meter Water Inlet Hose YC.JG.JS000032 | — | ||
Flow Meter Module BC.AG.SS000712 | — | ||
Flow Meter Water Outlet Hose YC.JG.JS000033 | — | ||
USE P/N T50CC - MULTIPLE PARTS YC.JG.ZS003478 | — |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
