T50 Rear Frame
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

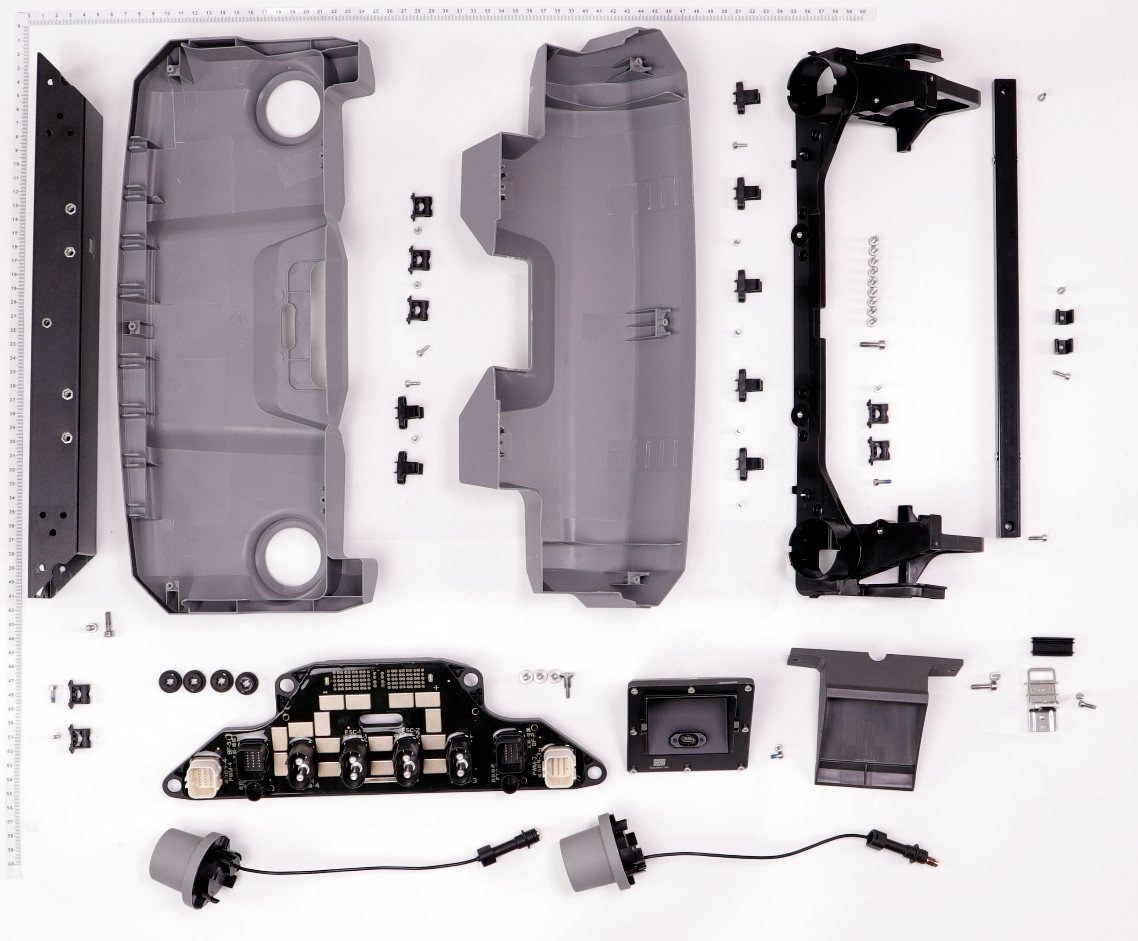

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Rear Frame Aluminum Tube BC.AG.SS000577 | — | |
| 2 | Outer Shell Buckle YC.JG.ZS002422 | — | |
| 3 | Rear Upper Cover YC.JG.ZS002298 | — | |
| 4 | T30-HC00800080-057030-5103-N YC.ST.LL000235 | — | |
| 5 | Rear Shell Small Buckle Base YC.JG.ZS000998 | — | |
| 6 | Rear Lower Cover YC.JG.ZS002299 | — | |
| 7 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 8 | Damping Pad YC.JG.MY000380 (now supplied as YC.JG.MY001054) | — | |
| 9 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 10 | Power Distribution Board Module BC.AG.SS000558 | — | |
| 11 | RTK Antenna Module BC.AG.SS000560 | — | |
| 12 | M30-HC01450080-100020-5103-Y YC.ST.LL000226 | — | |
| 13 | Backward Vision Sensor Radar Module BC.AG.SS000561 | — | |
| 13 | Backward Vision Sensor Radar Module (Outside of Mainland China) BC.AG.SS000655 | — | |
| 14 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 15 | Downward Vision Radar Bracket YC.JG.ZS002284 | — | |
| 16 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 17 | Battery Buckle YC.JG.FM000083 | — | |
| 18 | Battery Buckle Sealing Ring YC.JG.MY000736 | — | |
| 19 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 21 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 22 | Rear Frame Crossbeam YC.JG.QX002224 | — | |
| 23 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 24 | Buckle YC.JG.ZS002482 | — | |
| 25 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 26 | Real Shell Bracket YC.JG.ZS002222 | — | |
Rear Radar Module BC.AG.SS000940 | — | ||
Rear Vision Radar Signal Cable YC.XC.XX001012 | — | ||
Rear Cover of Rear Shell YC.JG.ZS003396 | — | ||
Lower Cover of Rear Shell YC.JG.ZS003443 | — | ||
Rear Shell Bottom Plate YC.JG.ZS003395 | — | ||
Rear Shell Sealing Stopper YC.JG.MY001058 | — | ||
Spraying Power Module BC.AG.SS000690 | — | ||
Power Distribution Board Module BC.AG.SS000691 | — | ||
Screw M30-HC01150050-120020-5103-Y YC.ST.LL000335 | — | ||
Spraying Adaptive Cable YC.XC.XX001001 | — | ||
Rear Frame Aluminum Tube BC.AG.SS000692 | — | ||
No Longer Available YC.JG.MY001057 | — | ||
Battery Buckle YC.JG.FM000122 | — | ||
Screw (M30-HC100100-55-85) YC.ST.LL000336 | — | ||
Power Distribution Board Waterproof Cover YC.JG.ZS003588 | — | ||
Screw M30-HC00550045-055012-5103-Y YC.ST.LL000382 | — | ||
Glue Baffle Plate YC.JG.MQ001973 | — | ||
RTK Antenna Module BC.AG.SS000694 | — | ||
RTK Rubber Ring YC.JG.MY001073 | — | ||
Rear Shell Module YC.JG.ZS003397 | — |
