T50 M1 Arm
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

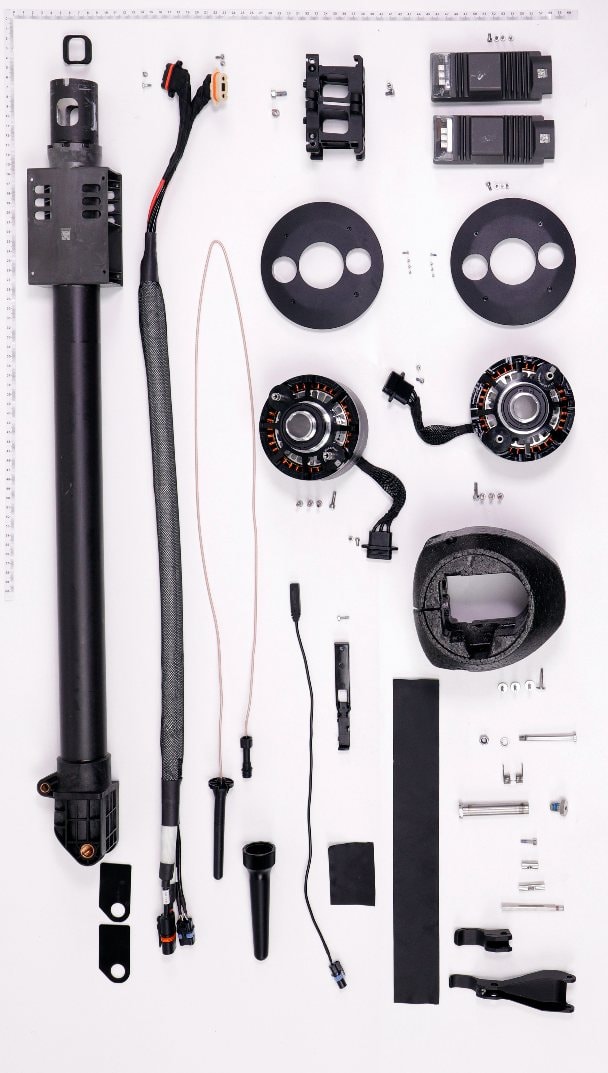

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Aircraft Arm Rubber YC.JG.MY000758 | — | |
| 2 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 3 | M50-HC01200120-087050-5103-Y YC.ST.LL000215 | — | |
| 4 | Motor Fixing Base YC.JG.QX002151 | — | |
| 5 | M1 Aircraft Arm (Front Right) BC.AG.SS000567 | — | |
| 6 | Motor Upper Cover YC.JG.ZS002379 | $11.00 | |
| 7 | M1&M2 Aircraft Arm ESC Composite Cable YC.XC.XS000011 | — | |
| 8 | 10033 Propulsion Motor BC.AG.SS000566 | — | |
| 9 | M40-HC01400140-070039-4105-Y YC.ST.LL000148 | — | |
| 10 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 11 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 12 | Aircraft Arm In-Position Detector Signal Cable YC.XC.XX000834 | — | |
| 13 | In-Position Detector Bracket YC.JG.ZS002278 | — | |
| 14 | Acetate Fabric FL.SC.BB000001 | — | |
| 15 | SDR Antenna YC.DZ.AA000275 | — | |
| 16 | Aircraft Arm Friction Plate YC.JG.ZS002394 | — | |
| 17 | SDR Protective Sleeve YC.JG.ZS002416 | — | |
| 18 | Locking Piece Handle BC.AG.SS000575 | — | |
| 19 | Locking Piece Handle Rubber Sleeve YC.JG.MY000720 (now supplied as YC.JG.ZS006831) | — | |
| 21 | Locking Piece Aircraft Arm Shaft YC.JG.QX002089 | $7.00 | |
| 22 | Locking Piece_Handle Connecting Rod Shaft YC.JG.QX001243 | — | |
| 23 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 24 | Aircraft Arm Fixing Screw YC.JG.LD000039 | — | |
| 25 | Locking Piece Spring YC.JG.TT000095 | — | |
| 26 | Aircraft Arm Fixing Screw Bolt YC.JG.QX002314 | — | |
| 27 | Locking Piece Fixing Screw Bolt YC.JG.LD000041 | $10.00 | |
| 29 | M30-HT01930060-110025-5103-Y YC.WJ.LL000213 | — | |
| 30 | M60-HX100060-5103_01 YC.WJ.LM000044 | $3.60 | |
| 31 | Motor Cover YC.JG.FP000018 | — | |
| 32 | M20-TC00700060-033010-0004-Y YC.ST.LL000208 | — | |
| 33 | ESC Module BC.AG.SS000563 | — | |
| 34 | Motor Locating Pin YC.JG.LD000032 | — | |
| 35 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 36 | Motor Base Locking Piece YC.JG.QX002788 | — | |
| Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | ||
ESC Module BC.AG.SS000700 | — | ||
Cable Sealing Pad YC.JG.MY000399 | — | ||
Three Phase Cable Sealing Silicone Rubber YC.JG.MY000397 | — | ||
Screw M50-HF01900080-095050-5103-Y YC.ST.LL000326 | — | ||
Hose Rubber Sleeve YC.JG.MY001062 | — | ||
Motor Base (Upper) YC.JG.QX003096 | — | ||
Screw (M20-PC01200100-040010-0323-Y) YC.ST.LL000380 | — | ||
Motor Base (Lower) YC.JG.QX003097 | — | ||
10033 Propulsion Motor - T50 BC.AG.SS000668.02 | — | ||
Motor Cover T50 YC.JG.FP000028 | — | ||
Anti-Wear Sleeve YC.JG.ZS003557 | — | ||
M1 Aircraft Arm (Front Right) BC.AG.SS000696 | — | ||
M2 Aircraft Arm (Front Left) BC.AG.SS000697 | — | ||
M1&M2 Aircraft Arm ESC Composite Cable YC.XC.DD000573 | — | ||
(NEW) Locking Piece Handle YC.JG.BJ003468 | — | ||
| Buckle Module BC.AG.SS000701 | $27.50 | ||
E-Shaped Circlip (6 mm) YC.JG.BJ002409 | — | ||
Buckle Torsion Spring YC.JG.TT000165 | — | ||
Buckle Rotation Shaft YC.JG.QX003014 | — |
