T50 Front Shell
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

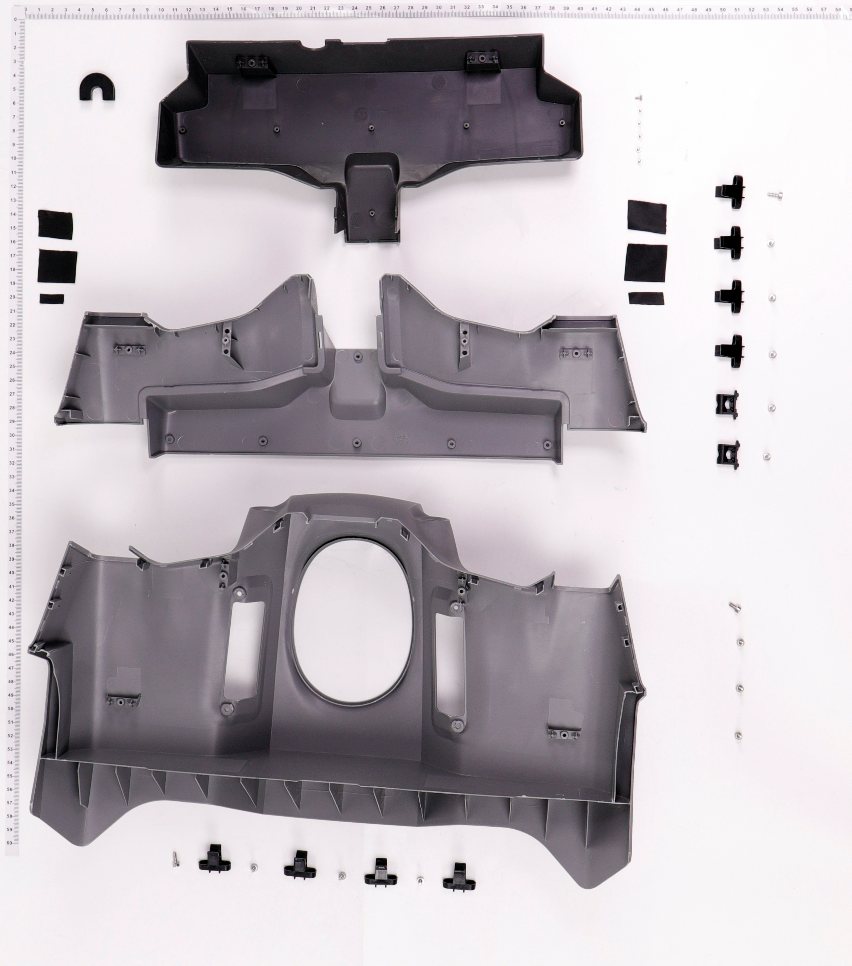

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Spraying Adaptive Cable Sleeve YC.JG.MY000776 | — | |
| 2 | Front Lower Shell 2 YC.JG.ZS002432 | — | |
| 3 | Acetate Fabric FL.SC.BB000001 | — | |
| 4 | Front Lower Shell YC.JG.ZS002283 | — | |
| 5 | Front Upper Shell YC.JG.ZS002282 | — | |
| 6 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 7 | Outer Shell Buckle YC.JG.ZS002422 | — | |
| 8 | T30-HC00800080-057030-5103-N YC.ST.LL000235 | — | |
| 9 | Rear Shell Small Buckle Base YC.JG.ZS000998 | — | |
| 10 | T20-PC00400040-040010-5103-N YC.ST.LL000236 | $0.95 | |
Auxiliary Bottom Light Sealing Ring YC.JG.MY001043 | — | ||
Auxiliary Bottom Light Module BC.AG.SS000677 | — | ||
Front Cover of Front Shell YC.JG.ZS003386 | — | ||
Auxiliary Bottom Light Signal Cable YC.XC.XX000999 | — |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
