T50 Spray Rod
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

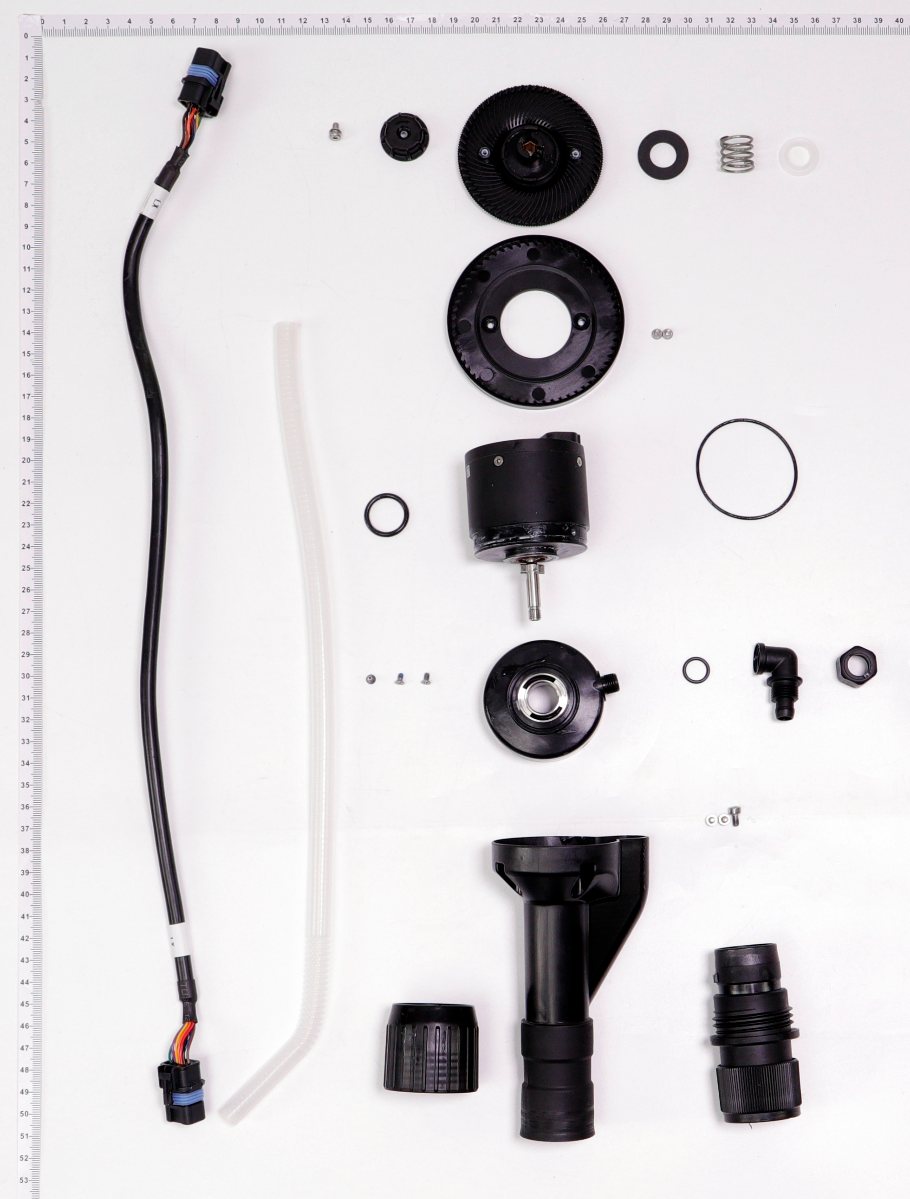

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Centrifugal Sprinkler Spring Bracket YC.JG.ZS002289 | $7.00 | |
| 2 | Screw M30-HCW00600060-055020-5103-N YC.WJ.LL000244 | — | |
| 3 | Centrifugal Sprinkler Spinner Disk_Lower Disk YC.JG.ZS001879 | — | |
| 4 | Centrifugal Sprinkler Signal Cable YC.XC.XX000841 | — | |
| 5 | Spray Rod Hose YC.JG.JS000019 | — | |
| 6 | Centrifugal Valve Rubber Pad YC.JG.MY000712 | — | |
| 7 | M25-PF00500035-047015-5103-N YC.ST.LL000224 | — | |
| 8 | Centrifugal Sprinkler Lower Cover BC.AG.SS000604 | — | |
| 9 | Centrifugal Spray Rod YC.JG.ZS002483 | — | |
| 10 | Spray Rod Quick-Release Sleeve YC.JG.ZS002254 | — | |
| 11 | Spray Rod Fixing Nut YC.JG.ZS002262 | — | |
| 12 | Spray Rod Adaptive Shaft YC.JG.ZS002253 | — | |
| 13 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 14 | Hose Curving Connector (Inner Thread) YC.JG.ZS002258 | — | |
| 15 | Hose Nut YC.JG.ZS002255 | — | |
| 16 | Pump_Connector Sealing Ring YC.XJ.QT000350 | — | |
| 17 | Centrifugal Motor BC.AG.SS000565 | $449.00 | |
| 18 | Motor Sealing Ring YC.JG.MY000704 | — | |
| 19 | Screw M25-HC00400040-050020-0003-N YC.WJ.LL000138 | $3.60 | |
| 21 | Centrifugal Sprinkler Friction Piece YC.JG.ZS002288 | — | |
| 22 | Centrifugal Sprinkler Spring YC.JG.TT000100 | — | |
| 23 | Centrifugal Sprinkler Sealing Ring YC.JG.MY000715 | — | |
Spray Lance Nut BC.AG.SS000752 | — | ||
Spray Lance Shell (Rear) T50 YC.JG.ZS003399 | — | ||
Atomized Sprinkler Lower Cover BC.AG.SS000708 | — | ||
Solenoid Valve Module BC.AG.SS000707 | — | ||
Atomized Sprinkler Adapter Cable (Rear) YC.XC.XX001000 | — | ||
Spray Lance Bellow Hose (Rear) YC.JG.JS000031 | — | ||
Spray Lance Soft Hose (Rear) YC.JG.JS000041 | — | ||
Spinner Disk Upper Disk YC.JG.ZS003459 | — | ||
Centrifugal Sprinkler Thumb Nut YC.JG.FM000092 | — | ||
Spinner Disk Lower Disk YC.JG.ZS003458 | — | ||
Spray Lance Shell (Front) T50 YC.JG.ZS003516 | — | ||
One-Way Valve Straight Connector T50 / T25 YC.JG.ZS003730 | — | ||
One-Way Valve Sealing Ring T50 / T25 YC.JG.MY001129 | — | ||
One-Way Valve Spring T50 / T25 YC.JG.TT000172 | — | ||
One-Way Valve Core T50 / T25 YC.JG.MY001113 | — | ||
Hose Clip YC.JG.ZS003479 | — | ||
Thumb Nut YC.JG.ZS003594 | — | ||
Spray Lance Fixing Base T25 YC.JG.ZS002291 | — | ||
Aircraft Arm Rubber T25 YC.JG.MY000759 | — |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
