T50 Front Frame
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

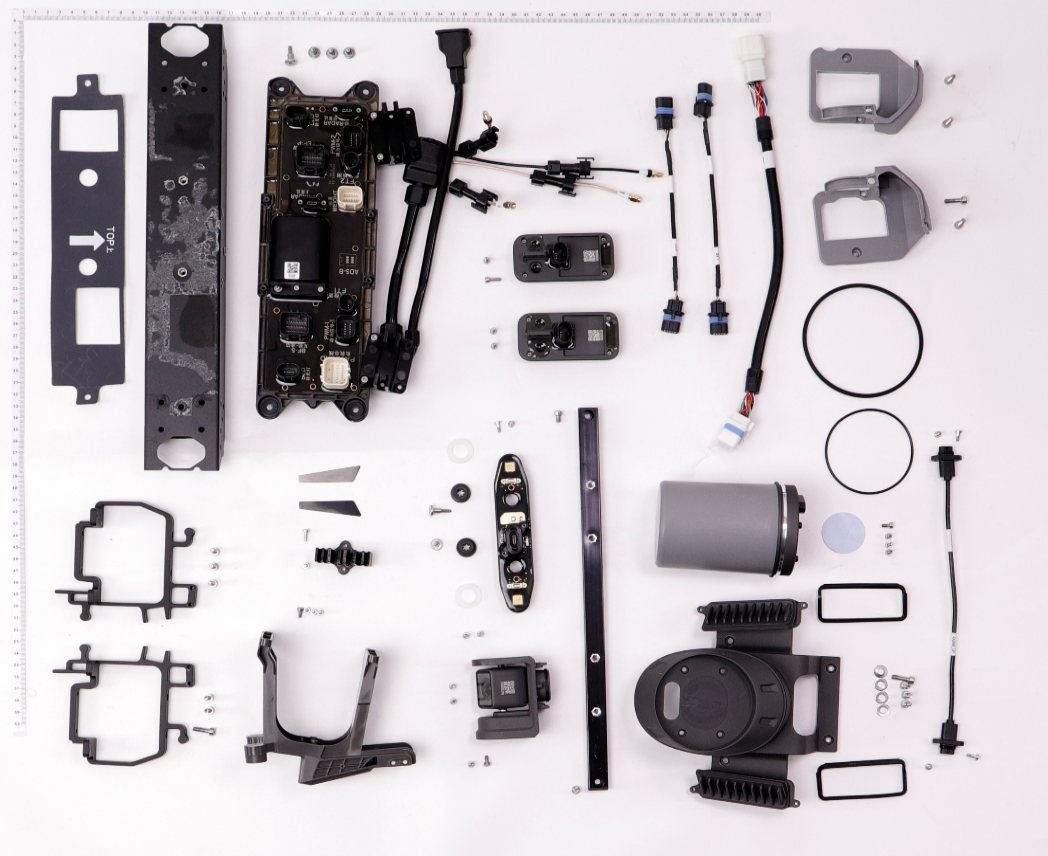

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | M30-HC01450080-100020-5103-Y YC.ST.LL000226 | — | |
| 2 | Front Frame Aluminum Tube BC.AG.SS000576 | — | |
| 3 | Front Frame Insulation Sheet YC.JG.MQ001382 | — | |
| 5 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 6 | M25-HC060060-45-85 YC.WJ.L01549 | $2.75 | |
| 7 | Dual Vision Sensors Sealing Ring YC.JG.MY000719 | — | |
| 8 | Damping Pad YC.JG.MY000380 (now supplied as YC.JG.MY001054) | — | |
| 9 | M30-HC01450080-100020-5103-Y YC.ST.LL000226 | — | |
| 10 | FPV Bracket Decorative Piece (Right) YC.JG.MQ001384 | — | |
| 11 | FPV Bracket Decorative Piece (Left) YC.JG.MQ001383 | — | |
| 12 | Front Shell Bracket (Right) YC.JG.QX002208 | — | |
| 13 | T30-HC00800080-057030-5103-N YC.ST.LL000235 | — | |
| 14 | Propulsion Cable Clip YC.JG.ZS002455 | — | |
| 15 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 16 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 17 | FPV Bracket YC.JG.ZS002279 | — | |
| 18 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 19 | Front Shell Bracket (Left) YC.JG.QX002209 | — | |
| 21 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 22 | Screw M40-HC060060-55-85 YC.WJ.L00876 | — | |
| 23 | Radar Crossbeam YC.JG.QX002207 | — | |
| 24 | Omnidirectional Radar Fixing Base_Heat Sink Part Sealing Ring YC.JG.MY000691 | — | |
| 25 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 26 | Omnidirectional Radar Fixing Base YC.JG.YZ000498 | — | |
| 27 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 29 | Omnidirectional Radar Fixing Base_Heat Sink Part Sealing Ring YC.JG.MY000691 | — | |
| 30 | Omnidirectional Radar Signal Cable YC.XC.XX000844 | — | |
| 31 | Radar Fixing Base Thermal Pad YC.JG.MQ000710 | — | |
| 32 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 33 | Omnidirectional Radar Module (Including Signal Cable) BC.AG.SS000551 | — | |
| 34 | Radar Hood Sealing Ring (Outer) YC.JG.MY000746 | — | |
| 35 | Forward Vision Sensor Module BC.AG.SS000562 | — | |
| 36 | Omnidirectional Radar Fixing Base Sealing Ring YC.JG.MY000745 | — | |
| 37 | Auxiliary Bottom Light Module (Including Signal Cable) BC.AG.SS000548 | — | |
| 38 | Front Frame Cable Bracket (Left) YC.JG.ZS002476 | — | |
| 39 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 40 | Auxiliary Bottom Light Signal Cable YC.XC.XX000853 | — | |
| 41 | Spraying Adaptive Cable YC.XC.XX000842 | — | |
| 42 | Front Frame Cable Bracket (Right) YC.JG.ZS002415 | — | |
| 43 | Side Arm YC.JG.ZS002304 | — | |
| 44 | M20-PC00400040-040010-5103-Y YC.ST.LL000228 | — | |
| 45 | Enhanced Supporting Piece YC.JG.QX002407 | — | |
| Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | ||
| Screw M30-HC1880-55-85 YC.WJ.L00873 | $3.05 | ||
| SDR Antenna (Front) YC.DZ.AA000462 | $46.55 | ||
| RTK Antenna Module BC.AG.SS001034 | $176.00 | ||
| Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667 | $0.65 | ||
| Power Distribution Board Dustproof Cover YC.JG.ZS004560 | $15.05 | ||
| FPV Signal Cable YC.XC.XX001419 | $63.00 | ||
| Front Radar Signal Cable YC.XC.XX001467 | $46.55 | ||
| Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | ||
| Front Frame Aluminum Tube BC.AG.SS001103 | $188.75 | ||
| Power Cable Clamp B0 YC.JG.ZS006714 | $9.35 | ||
| FPV Sealing Foam YC.JG.MQ003801 | $2.80 | ||
| FPV Bracket YC.JG.ZS006589 | $58.00 | ||
| Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 | $0.70 | ||
| Wear-Resistant Foam (77×30) YC.JG.MQ003860 | $2.80 | ||
| Laser Radar Insulation Spacer YC.JG.ZS006590 | $1.35 | ||
| Laser Radar Bracket YC.JG.YZ001068 | $50.00 | ||
| Screw (M25-HC00580058-050025-5103-Y) YC.ST.LL000726 | $0.65 | ||
| Power Distribution Board Protective Cover YC.JG.ZS006649 | $13.30 | ||
| Power Distribution Board Module BC.AG.SS001090 | $432.40 | ||
| Screw (M50-HC01300107-087050-5103-N) YC.ST.LL000699 | $2.80 | ||
| Screw (M40-HC03800090-135020-5103-Y) YC.ST.LL000697 | $1.35 | ||
| Power Distribution Module Spring YC.JG.TT000282 | $1.35 | ||
| Power Distribution Module Spring Pad YC.JG.ZS006775 | $1.35 | ||
| Thermal Conductive Pad (49.6×35.6 mm) YC.JG.MQ003697 | $1.35 | ||
| Screw (M20-PC01200100-040010-0323-Y) YC.ST.LL000551 | $0.65 | ||
| Laser Radar Signal Cable YC.XC.XX001498 | $30.60 | ||
| Laser Radar Module (Overseas) BC.AG.SS001166 | $1,420.30 | ||
| Front Radar Bracket YC.JG.YZ001069 | $58.00 | ||
| Power Cable Clamp B1 YC.JG.ZS006715 | $6.65 | ||
| RTK Bracket YC.JG.ZS006627 | $6.65 | ||
| RTK Lower Cover YC.JG.ZS006626 | $8.30 | ||
| RTK Sealing Ring YC.JG.MY001919 | $3.41 | ||
| RTK Rubber Ring YC.JG.MY001898 | $6.65 | ||
| Front Radar Sealing Foam YC.JG.MQ003696 | $6.65 | ||
| Front Top Shell YC.JG.ZS006459 | $77.00 | ||
| Cable Rubber Stopper YC.JG.MY001896 | $6.65 | ||
| Front Shell Bottom Cover YC.JG.ZS006460 | $83.00 | ||
| Downward Radar Signal Cable YC.XC.XX001427 | $50.00 | ||
| Downward Radar Module BC.AG.SS001087 | $368.20 | ||
| Front Radar Base Bracket YC.JG.ZS006690 | $25.25 | ||
| Quad Vision Sensor Cable Decorative Cover YC.JG.ZS006691 | $12.00 | ||
| Front Radar Module (Overseas) BC.AG.SS001167 | $1,704.50 | ||
| Radar Protective Foam YC.JG.MQ003829 | $1.35 | ||
| Quad-Fisheye Vision Sensor Module BC.AG.SS001093 | $759.55 | ||
| M30-HC02050080-070020-5103-Y_01 YC.WJ.LL000211 | $2.05 | ||
| Quad Vision Sensor Cover Plate YC.JG.MQ003804 | $6.65 | ||
SDR Antenna (Front) YC.DZ.AA000326 | — | ||
Forward Vision Sensor Signal Cable YC.XC.XX001013 | — | ||
Damping Silicone Rubber YC.JG.MY001038 | — | ||
Forward Vision Sensor Module BC.AG.SS000671 | — | ||
RF Cable Clip YC.JG.ZS003455 | — | ||
Top Cover of Front Shell YC.JG.ZS003389 | — | ||
Forward Radar Bracket YC.JG.YZ000671 | — | ||
FPV Camera Bracket Supporting Piece YC.JG.QX003038 | — | ||
Auxiliary Arm YC.JG.ZS003435 | — | ||
Lens Cap Sealing Gasket YC.JG.MY000985 | — | ||
Lens Cap Module BC.AG.SS000682 | — | ||
FPV Camera Module BC.AG.SS000681 | — | ||
Front Shell Sealing Stopper YC.JG.MY001079 | — | ||
Front Shell Bottom Plate YC.JG.ZS003388 | — | ||
Front Frame Aluminum Tube BC.AG.SS000672 | — | ||
FPV Camera Bracket YC.JG.ZS003425 | — | ||
Binocular Vision Sensors Sealing Ring YC.JG.MY001044 | — | ||
Outer Shell Side Cover YC.JG.ZS003452 | — | ||
Front Shell Module YC.JG.ZS003387 | — | ||
Radar Sealing Ring YC.JG.MY001041 | — | ||
Forward Radar Base YC.JG.YZ000672 | — | ||
Radar Base Sealing Ring YC.JG.MY001042 | — | ||
Forward Radar Module BC.AG.SS000939 | — | ||
Forward Radar Signal Cable YC.XC.XX001011 | — | ||
Radar Left Supporting Piece YC.JG.ZS003493 | — | ||
Radar Supporting Piece (Right) YC.JG.ZS003492 | — |
