T50 Middle Frame
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

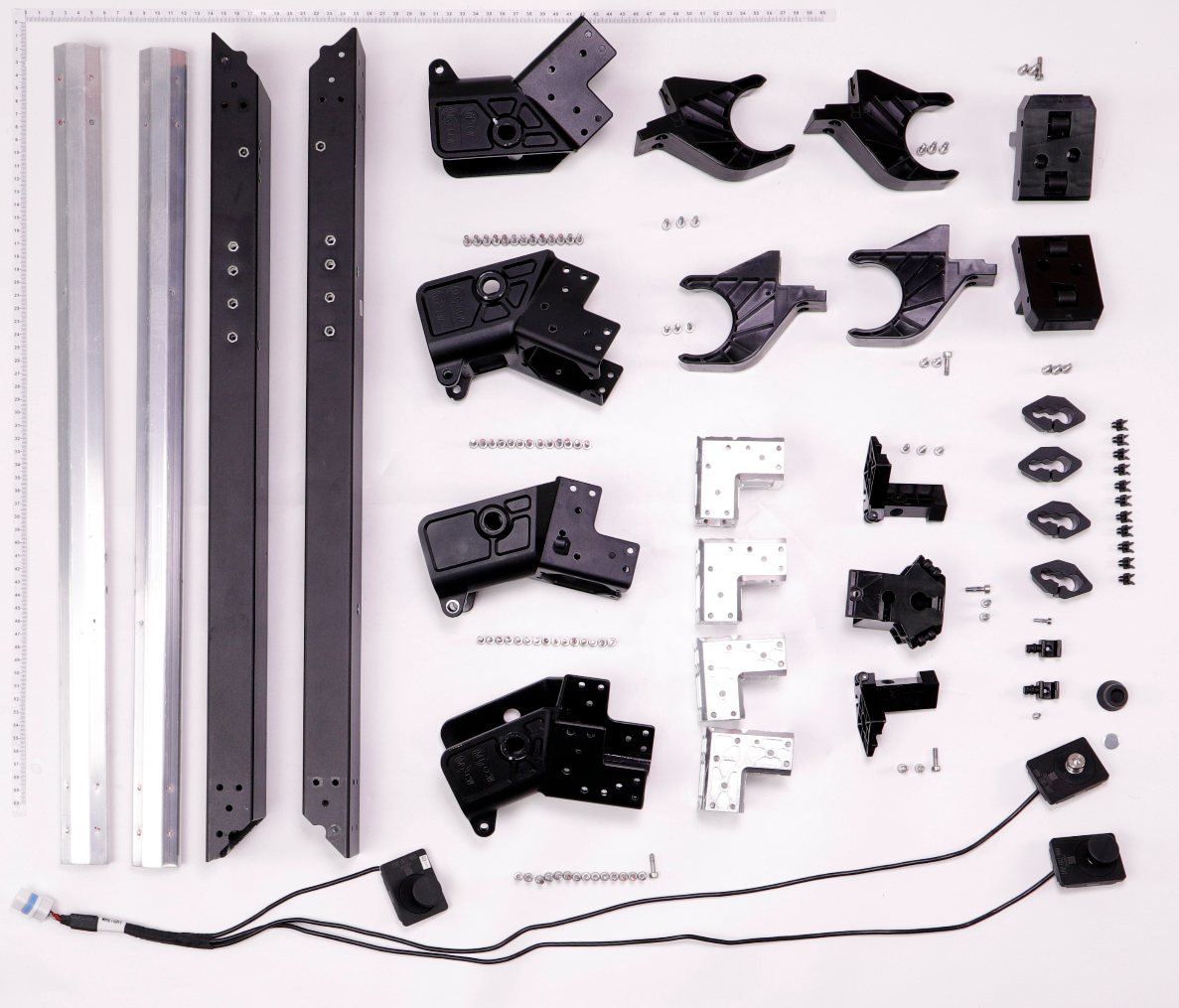

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Cable Tube YC.JG.QX002085 | — | |
| 2 | M4 Aircraft Arm Connector YC.JG.QX002258 | — | |
| 3 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 4 | M3 Aircraft Arm Connector YC.JG.QX002257 | — | |
| 5 | Middle Frame Aluminum Tube (Right) BC.AG.SS000579 | — | |
| 6 | Middle Frame Aluminum Tube (Left) BC.AG.SS000578 | — | |
| 7 | M2 Aircraft Arm Connector YC.JG.QX002136 | — | |
| 8 | M1 Aircraft Arm Connector YC.JG.QX002135 | — | |
| 9 | Load Sensor Module BC.AG.SS000550 | — | |
| 10 | Middle Frame Insert Part YC.JG.QX002110 | — | |
| 12 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 13 | Weight Sensor Module Fixing Piece YC.JG.BJ000942 | — | |
| 14 | Load Sensor Rubber Cover YC.JG.MY000790 | — | |
| 15 | Hose Clip YC.JG.ZS002259 (now supplied as YC.JG.ZS003479) | — | |
| 16 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 18 | Load Sensor Cable Clip YC.JG.ZS002229 | — | |
| 21 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 22 | Aircraft Arm Fixing Piece (Left) YC.JG.ZS002191 | — | |
| 25 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 26 | Aircraft Arm Fixing Piece (Right) YC.JG.ZS002192 | — | |
| M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 | ||
| Landing Gear Fixing Piece (Front Right) YC.JG.ZS003464 | $69.00 | ||
| Spray Tank Fixing Piece_Internal Roller YC.SJ.WS002500 | $2.05 | ||
| Landing Gear Fixing Piece (Front Left) YC.JG.ZS003465 | $69.00 | ||
Battery Supporting Piece (Left) YC.JG.ZS003438 | — | ||
M3 Aircraft Arm Connector BC.AG.SS000685 | — | ||
Middle Frame Aluminum Tube (Left) BC.AG.SS000687 | — | ||
Cable Clip YC.JG.ZS003589 | — | ||
Middle Frame Insert Part YC.JG.QX003017 | — | ||
Cable Tube Rubber Stopper YC.JG.MY001051 | — | ||
Cable Tube YC.JG.JS000035 | — | ||
Middle Frame Aluminum Tube (Right) BC.AG.SS000688 | — | ||
M4 Aircraft Arm Connector BC.AG.SS000686 | — | ||
Battery Supporting Piece (Right) YC.JG.ZS003439 | — | ||
Weighing Sensor Bracket (Right) YC.JG.ZS003599 | — | ||
Aircraft Arm Fixing Piece (Right) YC.JG.ZS003463 | — | ||
M1 Aircraft Arm Connector BC.AG.SS000683 | — | ||
Weighing Sensor Bracket (Front) YC.JG.ZS003601 | — | ||
Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 | — | ||
M2 Aircraft Arm Connector BC.AG.SS000684 | — | ||
Aircraft Arm Fixing Piece (Left) YC.JG.ZS003462 | — | ||
Anti-Collision Pad YC.JG.MY001055 | — | ||
Weighing Sensor Bracket (Left) YC.JG.ZS003600 | — | ||
Weighing Sensor Bracket Roller YC.JG.ZS003602 | — |
