T50 Impeller Pump (2)
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

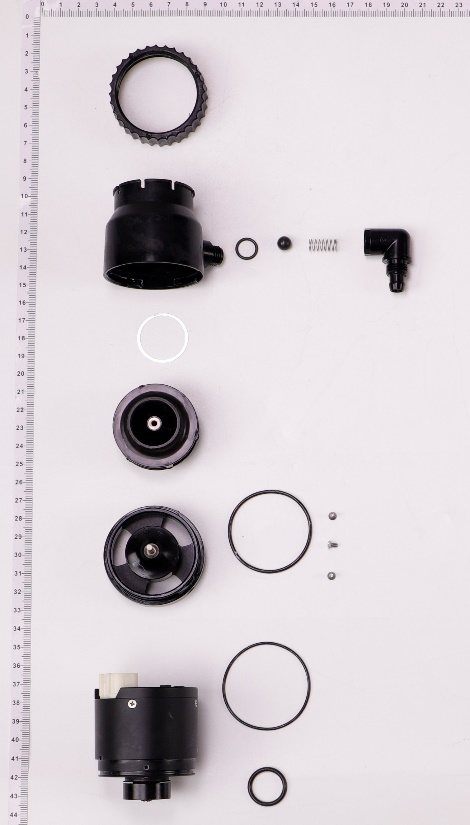

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Water Outlet Rotation Cover YC.JG.ZS002233 | $3.65 | |
| 2 | Impeller Pump Shell YC.JG.ZS002214 | — | |
| 4 | Impeller BC.AG.SS000544 | — | |
| 5 | Pump Sealing Ring YC.JG.MY000703 | — | |
| 6 | Impeller Pump YC.JG.ZS002216 (now supplied as YC.JG.ZS003417) | — | |
| 7 | Motor Sealing Ring YC.JG.MY000704 | — | |
| 8 | Impeller Pump Motor BC.AG.SS000543 | $429.00 | |
| 9 | Centrifugal Valve Rubber Pad YC.JG.MY000712 | — | |
| 10 | M25-PF00500035-047015-5103-N YC.ST.LL000224 | — | |
| 11 | Impeller Pump Curving Connector YC.JG.ZS002348 | — | |
| 12 | Spring YC.JG.TT000098 | — | |
| 13 | Sealing Ball YC.JG.MY000705 | — | |
| 14 | Pump_Connector Sealing Ring YC.XJ.QT000350 | — |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
