T50 M3 Arm
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

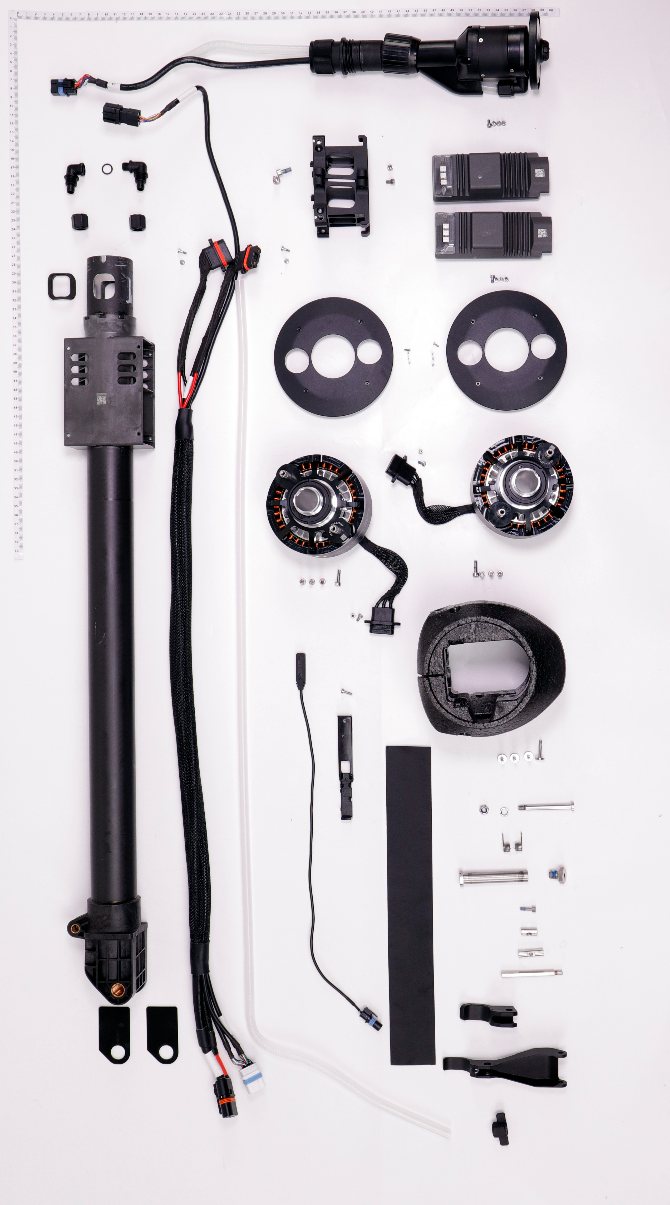

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Hose Curving Connector (Outer Thread) YC.JG.ZS002257 | — | |
| 2 | Pump_Connector Sealing Ring YC.XJ.QT000350 | — | |
| 3 | Hose Curving Connector (Inner Thread) YC.JG.ZS002258 | — | |
| 4 | Hose Nut YC.JG.ZS002255 | — | |
| 5 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 6 | Aircraft Arm Rubber YC.JG.MY000758 | — | |
| 7 | M3 Aircraft Arm (Rear Left) BC.AG.SS000569 | — | |
| 8 | M3&M4 Aircraft Arm ESC Composite Cable YC.XC.XS000012 | — | |
| 9 | Aircraft Arm Hose YC.JG.JS000018 | — | |
| 10 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 11 | Aircraft Arm In-Position Detector Signal Cable YC.XC.XX000834 | — | |
| 12 | In-Position Detector Bracket YC.JG.ZS002278 | — | |
| 13 | Acetate Fabric FL.SC.BB000001 | — | |
| 14 | Aircraft Arm Friction Plate YC.JG.ZS002394 | — | |
| 15 | Thumb Nut YC.JG.ZS002534 (now supplied as YC.JG.ZS003594) | — | |
| 16 | Locking Piece Handle BC.AG.SS000575 | — | |
| 17 | Locking Piece Handle Rubber Sleeve YC.JG.MY000720 (now supplied as YC.JG.ZS006831) | — | |
| 18 | Aircraft Arm Fixing Screw Bolt YC.JG.QX002314 | — | |
| 19 | Locking Piece Connection Rod YC.JG.QX002088 | $9.00 | |
| 21 | Locking Piece_Handle Connecting Rod Shaft YC.JG.QX001243 | — | |
| 22 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 23 | Aircraft Arm Fixing Screw YC.JG.LD000039 | — | |
| 24 | Locking Piece Spring YC.JG.TT000095 | — | |
| 25 | Locking Piece Fixing Screw Bolt YC.JG.LD000041 | $10.00 | |
| 27 | M30-HT01930060-110025-5103-Y YC.WJ.LL000213 | — | |
| 28 | M60-HX100060-5103_01 YC.WJ.LM000044 | $3.60 | |
| 29 | Motor Cover YC.JG.FP000018 | — | |
| 30 | M40-HC01400140-070039-4105-Y YC.ST.LL000148 | — | |
| 31 | 10033 Propulsion Motor BC.AG.SS000566 | — | |
| 32 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 33 | M20-TC00700060-033010-0004-Y YC.ST.LL000208 | — | |
| 34 | Motor Upper Cover YC.JG.ZS002379 | $11.00 | |
| 35 | ESC Module BC.AG.SS000563 | — | |
| 36 | Motor Fixing Base YC.JG.QX002151 | — | |
| 37 | Motor Locating Pin YC.JG.LD000032 | — | |
| 38 | M50-HC01200120-087050-5103-Y YC.ST.LL000215 | — | |
| 39 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 41 | Motor Base Locking Piece YC.JG.QX002788 | — | |
| Hose Nut (M15) YC.JG.ZS003460 | $2.50 | ||
Elbow Connector (180 Degrees) BC.AG.SS000986 | — | ||
Aircraft Arm Hose T50 YC.JG.JS000030 | — | ||
M3 Aircraft Arm (H)(Rear Left) BC.AG.SS000846 | — | ||
M4 Aircraft Arm (H)(Rear Right) BC.AG.SS000847 | — | ||
M3&M4 Aircraft Arm ESC Composite Cable YC.XC.DD000572 | — |
