T70P Arm 3

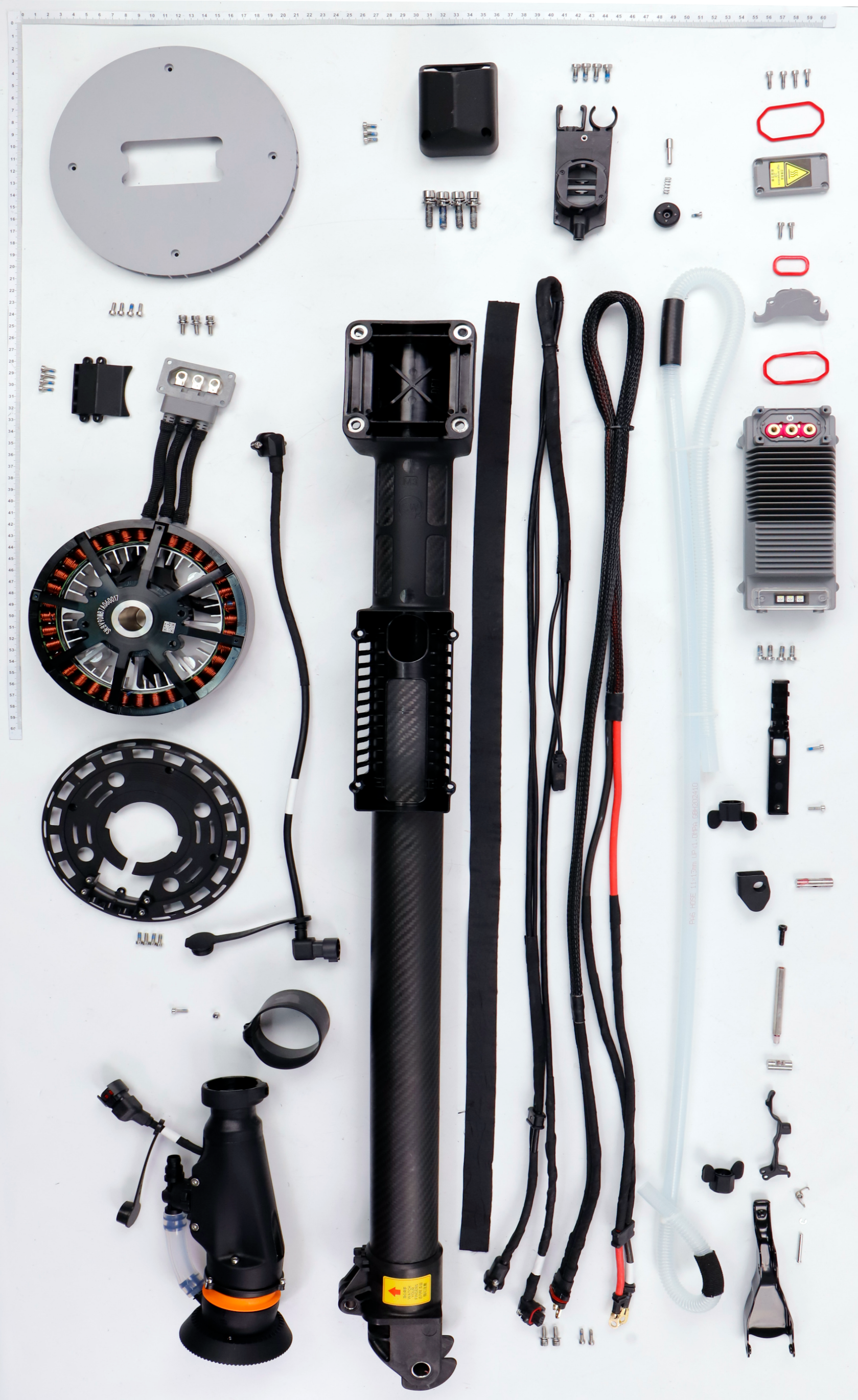

Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Motor protection cover YC.JG.ZS006718 | — | |
| 2 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 3 | Motor Upper Cover YC.JG.ZS006183 | — | |
| 4 | Screw (M60-NCW02300200-120060-5103-N) YC.ST.LL000750 | — | |
| 5 | Aircraft Arm Signal Cable (Rear) YC.XC.XX001392 | — | |
| 6 | YC.JG.MQ002156 YC.JG.MQ002156 | — | |
| 7 | Screw (M30-HC00800080-055030-5103-Y) YC.ST.LL000612 | $0.65 | |
| 8 | Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667 | $0.65 | |
| 9 | M3 Aircraft Arm (Rear Left) BC.AG.SS001134 | — | |
| 10 | Screw (M30-HC00800080-055030-5103-Y) YC.ST.LL000612 | $0.65 | |
| 11 | Motor Cable Protective Cover YC.JG.ZS006181 | — | |
| 12 | 15522 Motor BC.AG.SS001048 | — | |
| 13 | ESC Sprinkler Adapter Cable YC.XC.XX001463 | — | |
| 14 | Motor Lower Cover YC.JG.ZS006180 | — | |
| 15 | Screw (M30-HC00800080-055030-5103-Y) YC.ST.LL000612 | $0.65 | |
| 16 | M3 Nut YC.WJ.L00877 | — | |
| 17 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 18 | Anti-Wear Sleeve YC.JG.ZS003557 | — | |
| 19 | M60-HX100060-5103_01 YC.WJ.LM000044 | $3.60 | |
| 20 | Locking Piece Fixing Screw Bolt YC.JG.LD000041 | $10.00 | |
| 21 | Aircraft Arm Fixing Screw YC.JG.LD000039 | — | |
| 22 | Aircraft Arm Fixing Screw Bolt YC.JG.QX002314 | — | |
| 23 | Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667 | $0.65 | |
| 24 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 25 | Locking Piece Handle YC.JG.BJ003468 | — | |
| 26 | Buckle Rotation Shaft YC.JG.QX003014 | — | |
| 27 | E-Shaped Circlip (6 mm) YC.JG.BJ002409 | — | |
| 28 | Buckle Torsion Spring YC.JG.TT000165 | — | |
| 29 | Thumb Nut YC.JG.ZS006171 | $2.30 | |
| 30 | Buckle Module BC.AG.SS000701 | $27.50 | |
| 31 | Locking Piece_Handle Connecting Rod Shaft YC.JG.QX004662 | — | |
| 32 | Locking Piece Connection Rod YC.JG.QX003942 | — | |
| 33 | Screw (M40-HC01400140-070039-4105-Y) YC.ST.LL000148 | — | |
| 34 | Locking Piece Handle Rubber Sleeve YC.JG.ZS006831 | — | |
| 35 | Locking Piece Aircraft Arm Shaft YC.JG.QX002089 | $7.00 | |
| 36 | Thumb Nut YC.JG.ZS006171 | $2.30 | |
| 37 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 38 | In-Position Detector Bracket YC.JG.ZS002278 | — | |
| 39 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 | |
| 40 | ESC Module BC.AG.SS001022 | — | |
| 41 | Aircraft Arm Power Cable (Rear) YC.XC.DD000797 | — | |
| 42 | ESC Three-Phase Waterproof Cover Rubber Seal YC.JG.MY001804 | — | |
| 43 | Aircraft Arm Hose YC.JG.JS000073 | — | |
| 44 | ESC Bus Waterproof Cover YC.JG.ZS006196 | — | |
| 45 | ESC Bus Waterproof Cover Rubber Seal YC.JG.MY001805 | — | |
| 46 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 47 | ESC Three-Phase Cable Waterproof Cover YC.JG.ZS006195 | — | |
| 48 | ESC Three-Phase Waterproof Cover Rubber Seal YC.JG.MY001804 | — | |
| 49 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 50 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 | |
| 51 | Aircraft Arm Power Cable (Front) YC.XC.DD000796 | — |
