T70P Propellers
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

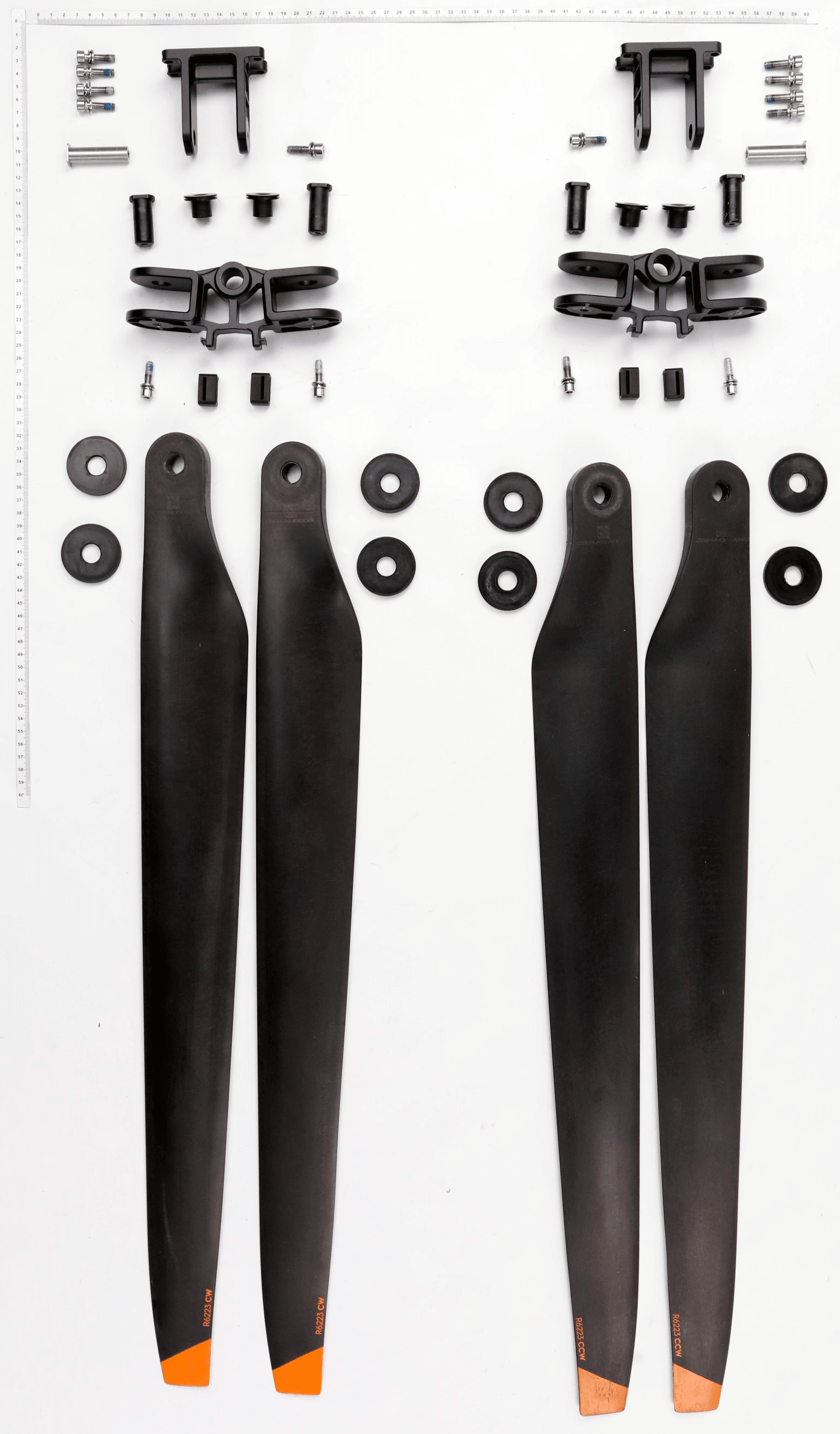

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw (M60-NCW02300200-120060-5103-N) YC.ST.LL000750 | — | |
| 2 | Propeller Clamp Base YC.JG.QX004523 | — | |
| 3 | Propeller Clamp Base Shaft YC.JG.QX004525 | — | |
| 4 | Screw (M60-NCW02300200-120060-5103-N) YC.ST.LL000750 | — | |
| 5 | Propeller Shaft YC.JG.QX004524 | — | |
| 6 | Propeller Clamp Bearing YC.JG.ZS006832 | — | |
| 7 | Propeller Clamp YC.JG.QX004522 | — | |
| 8 | Screw (M60-NCW02300200-120060-5103-N) YC.ST.LL000750 | — | |
| 9 | Propeller Clamp Damping Pad YC.JG.ZS007564 | — | |
| 10 | Propeller Gasket YC.JG.ZS006404 (now supplied as YC.JG.ZS008218) | $7.26 | |
| 11 | Propeller (CW) YC.JG.XW000292 | $296.00 | |
| 12 | Propeller (CCW) YC.JG.XW000291 | $296.00 | |
| M50-HF01430102-116041-0003-Y YC.ST.LL000209 | $2.20 | ||
| Nut (M80-HX130087-5103) YC.ST.LM000115 | $2.80 | ||
| Propeller Clamp YC.JG.QX004794 | $47.45 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
