T70P Spreading Auger
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

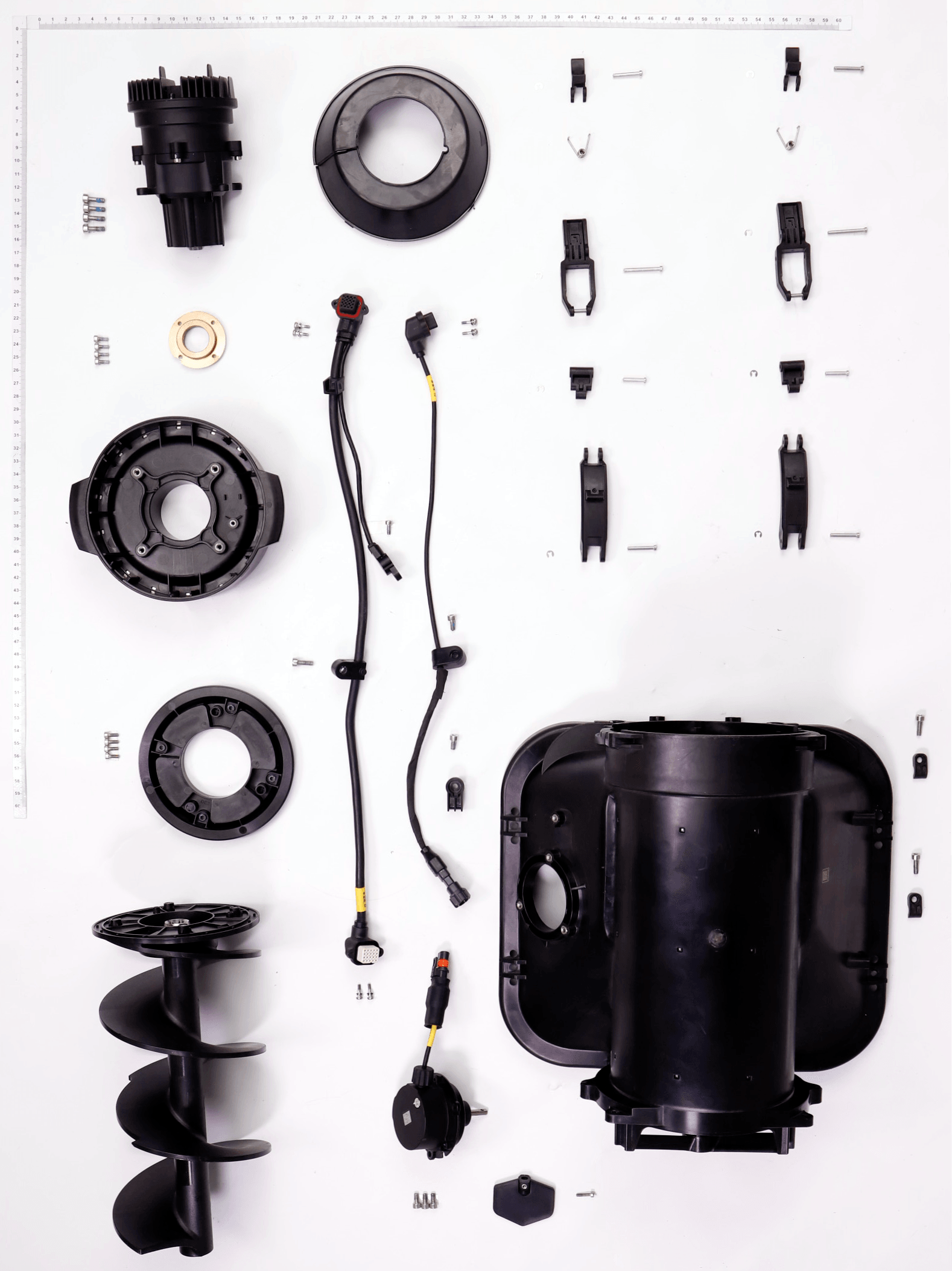

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Auger Motor Cover YC.JG.ZS006137 | $9.00 | |
| 2 | Auger Motor BC.AG.SS001062 | $621.10 | |
| 3 | Screw (M40-HC01200120-072040-5103-Y) YC.ST.LL000705 | $0.60 | |
| 4 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 | $0.65 | |
| 5 | Sliding Bearing YC.ST.CG000018 | $4.00 | |
| 6 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 7 | Auger Sensor BC.AG.SS001061 | $78.00 | |
| 8 | Auger Motor Base YC.JG.ZS005954 | $38.00 | |
| 9 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 10 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 11 | 4-pin Cable Sleeve YC.JG.MY001491 | $0.90 | |
| 12 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 | $0.65 | |
| 13 | Extra Large Auger BC.AG.SS001067 | $219.00 | |
| 14 | Drain Hole Waterproof Ring YC.JG.MY000314 | $2.50 | |
| 15 | Screw M40-HC00450039-076020-0003-Y YC.ST.LL000112 | $2.00 | |
| 16 | Material Detection Motor BC.AG.SS000914 | $392.00 | |
| 17 | Reduction Gearbox Motor Dustproof Cover YC.JG.MY000387 | $6.60 | |
| 18 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 19 | Sensing Part YC.JG.ZS004580 | $7.00 | |
| 20 | Hexagonal Socket Head Cap Screws M2.5*12 YC.WJ.L00006 | $1.38 | |
| 21 | Auger Shell YC.JG.ZS005952 | $213.00 | |
| 22 | Cable Clip YC.JG.ZS004913 | $0.90 | |
| 23 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 24 | Cable Clamp 04 YC.JG.ZS006306 | $1.00 | |
| 25 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 26 | Motor Adapter Cable YC.XC.XX001400 | $46.00 | |
| 27 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 28 | E-Shaped Circlip (6 mm) YC.JG.BJ002409 | — | |
| 29 | Medium Pin (22.2 mm) YC.JG.QX003649 | $4.30 | |
| 30 | Quick-Release Clamp YC.JG.ZS004696 | $4.30 | |
| 31 | Quick-Release Rod YC.JG.ZS004557 | $4.30 | |
| 32 | Short Pin (17.6 mm) YC.JG.QX003650 | $4.30 | |
| 33 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 | $0.65 | |
| 34 | Lever 1 YC.JG.ZS004555 | $4.30 | |
| 35 | Long Pin (29.4 mm) YC.JG.QX003648 | $4.00 | |
| 36 | Torsion Spring YC.JG.TT000204 | $0.90 | |
| 37 | Lever 2 YC.JG.ZS004556 | $2.60 | |
| 38 | Medium Pin (22.2 mm) YC.JG.QX003649 | $4.30 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
