T70P Spray Tank 1
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

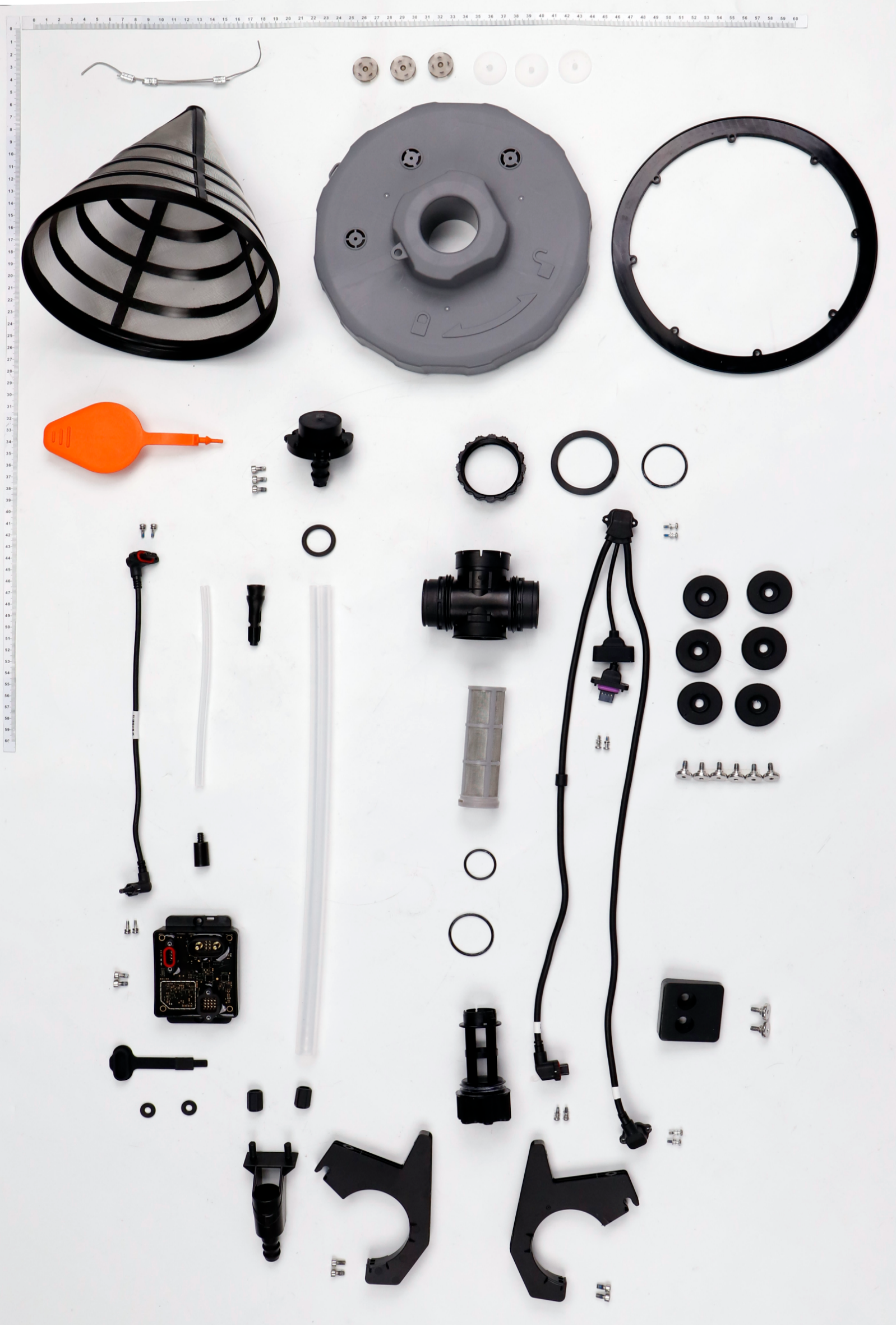

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Plastic-Coated Steel Wire Rope YC.ST.AS000022 | — | |
| 2 | Aluminum Clamp YC.JG.QX003883 | — | |
| 3 | Spray Tank Inlet Filter YC.JG.ZS006111 | $41.80 | |
| 4 | Vent Trap YC.SJ.S00717 | $37.25 | |
| 5 | Dosing Part Rubber Cover YC.JG.MY001721 | $31.46 | |
| 6 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 8 | YC.JG.MY001723 YC.JG.MY001723 | — | |
| 7 | Liquid Level Gauge Module BC.AG.SS001122 | $153.90 | |
| 9 | Liquid Level Gauge External Hose YC.JG.JS000085 | $3.10 | |
| 10 | Liquid Level Gauge Signal Cable YC.XC.XX001397 | — | |
| 11 | Liquid Level Gauge Hose Module BC.AG.SS001121 | $34.60 | |
| 12 | Liquid Level Gauge External Hose Rubber Stopper YC.JG.ZS006843 | $7.55 | |
| 13 | Spraying Payload Module BC.AG.SS001030 | — | |
| 14 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 15 | Socket Rubber Stopper YC.JG.MY001832 | — | |
| 16 | Liquid Level Gauge Base Sealing Ring YC.JG.MY001801 | $1.55 | |
| 17 | Liquid Level Gauge Nut YC.JG.ZS004726 | — | |
| 18 | Liquid Level Gauge Base YC.JG.ZS006114 | $28.60 | |
| 19 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 20 | Impeller Pump Bracket YC.JG.ZS006360 | $13.55 | |
| 21 | Payload Adapter Cable YC.XC.DD000798 | — | |
| 22 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 23 | Impeller Pump Bracket YC.JG.ZS006360 | $13.55 | |
| 24 | Spray Tank Y-tee Part Nut YC.JG.ZS005453 | $5.75 | |
| 25 | Screw (M40-HC00600060-120030-0003-N) YC.ST.LL000668 | — | |
| 26 | Spray Tank Rear Support Pad YC.JG.MY001727 | — | |
| 27 | Filter Rubber Ring YC.SJ.J01186 | $5.85 | |
| 28 | Spray Tank Y-tee Part Sealing Ring YC.JG.MY000687 | $3.80 | |
| 29 | Liquid Level Gauge Hose Module YC.JG.ZS005454 | $35.15 | |
| 30 | Screw (M40-HC00600060-120030-0003-N) YC.ST.LL000668 | — | |
| 31 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 | $0.65 | |
| 32 | Spray Tank Side Support Pad YC.JG.MY001728 | — | |
| 33 | Delivery Pump Flow Meter Cable YC.XC.XX001395 | — | |
| 34 | Spray Tank Y-tee Part YC.JG.ZS002232 | $21.90 | |
| 35 | Spray Tank Y-tee Part Sealing Ring YC.JG.MY000687 | $3.80 | |
| 36 | Damping Rubber Pad YC.JG.MY000845 | $0.95 | |
| 37 | Water Outlet Rotation Cover YC.JG.ZS002233 | $3.65 | |
| 38 | Spray Tank Cover Sealing Ring YC.JG.MY001720 | $22.55 | |
| 39 | Spray Tank Cover YC.JG.ZS006110 | $28.60 | |
| 40 | Spray Tank Cover Waterproof Permeability Film YC.JG.MY000678 | $2.85 | |
| 41 | Dosing Part Rubber Cover YC.JG.ZS002250 | $0.95 | |
| Spray Tank Cover Sealing Ring YC.JG.MY000679 | $3.65 | ||
| Flow Meter Bracket YC.JG.ZS004712 | $1.65 | ||
| M30-HC02050080-070020-5103-Y_01 YC.WJ.LL000211 | $2.05 | ||
| Spray Tank Cover YC.JG.ZS002251 | $55.00 | ||
| M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 | ||
| Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | ||
| Spray Tank (100L) YC.JG.CS000050 | $480.70 | ||
| Aluminum Clip YC.ST.AS000053 | $6.65 | ||
| Spray Tank Lanyard YC.ST.AS000043 | $6.65 | ||
| 16-pin Connector Sealing Ring YC.JG.MY001811 | $1.35 | ||
| 16-pin Connector Plastic Cover YC.JG.ZS006291 | $1.35 | ||
| Payload Control Board BC.AG.SS001068 | $552.70 | ||
| 20-pin Connector Plastic Cover YC.JG.ZS006858 | $1.35 | ||
| 20-pin Connector Sealing Ring YC.JG.MY001989 | $1.35 | ||
| Liquid Level Gauge Signal Cable YC.XC.XX001398 | $30.60 | ||
| Delivery Pump Flow Meter Cable YC.XC.XX001396 | $58.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
