T70P Front Frame 2
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

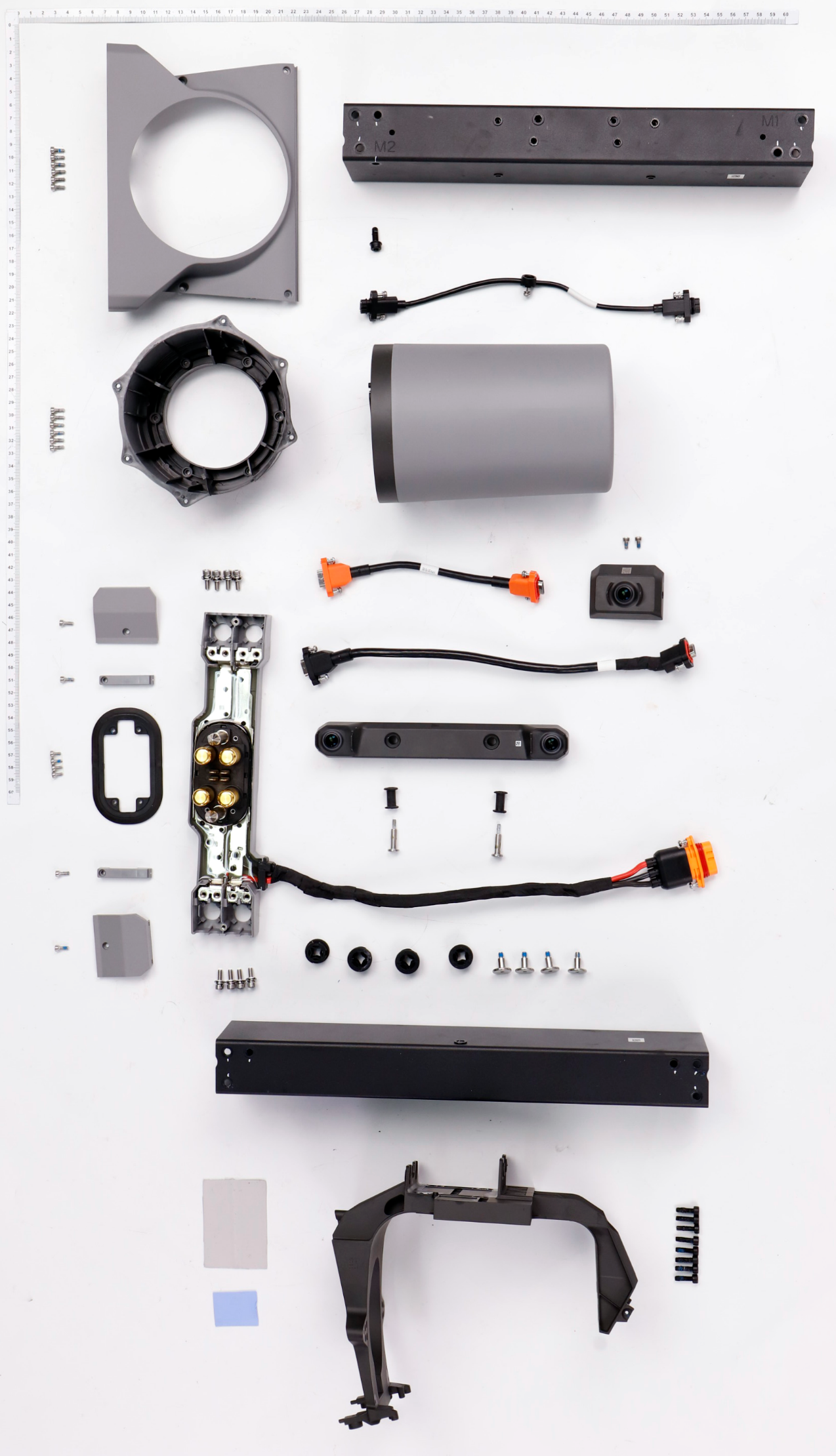

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Top Cover of Front Shell YC.JG.ZS004550 | — | |
| 2 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 3 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 4 | Front Radar Base Bracket YC.JG.ZS006700 | — | |
| 5 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 6 | Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667 | $0.65 | |
| 7 | Power Distribution Board Protective Cover YC.JG.ZS006148 | — | |
| 8 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 9 | Cable Cover Plate YC.JG.ZS006149 | — | |
| 10 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 11 | Power Distribution Board Dustproof Cover YC.JG.ZS004560 | $15.05 | |
| 12 | Screw (M25-HC00850060-055025-5103-Y) YC.ST.LL000715 | — | |
| 13 | Power Distribution Board Module BC.AG.SS001023 | — | |
| 14 | Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667 | $0.65 | |
| 15 | Rear Frame Aluminum Tube BC.AG.SS001050 | — | |
| 16 | Thermally Conductive Pad (71 x 51 mm) YC.JG.MQ002494 | — | |
| 17 | Thermally Conductive Pad (35 x 27 mm) YC.JG.MQ002497 | — | |
| 18 | Front Radar Bracket YC.JG.YZ000802 | — | |
| 19 | Screw M40-HC01400140-070042-4203-Y YC.ST.LL000482 | — | |
| 20 | YC.JG.MY001803 YC.JG.MY001803 | — | |
| 21 | Screw M40-HC01620050-155020-5103-Y YC.ST.LL000493 | — | |
| 22 | Screw M30-HC02380080-094020-5103-Y YC.ST.LL000541 | — | |
| 23 | Binocular Vision Sensor Damping Pad YC.JG.MY001353 | — | |
| 24 | Binocular Fisheye Sensor (Incl. Signal Cable) BC.AG.SS001026 | — | |
| 25 | Binocular Vision Sensor Signal Cable YC.XC.XX001420 | — | |
| 26 | FPV Module BC.AG.SS001021 | — | |
| 27 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 28 | FPV Signal Cable YC.XC.XX001419 | $63.00 | |
| 29 | Front Radar Module BC.AG.SS001165 | — | |
| 30 | Front Radar Signal Cable YC.XC.XX001467 | $46.55 | |
| 31 | Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | |
| 32 | Front Frame Aluminum Tube BC.AG.SS001049 | — |
