T70P Front Frame 1
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

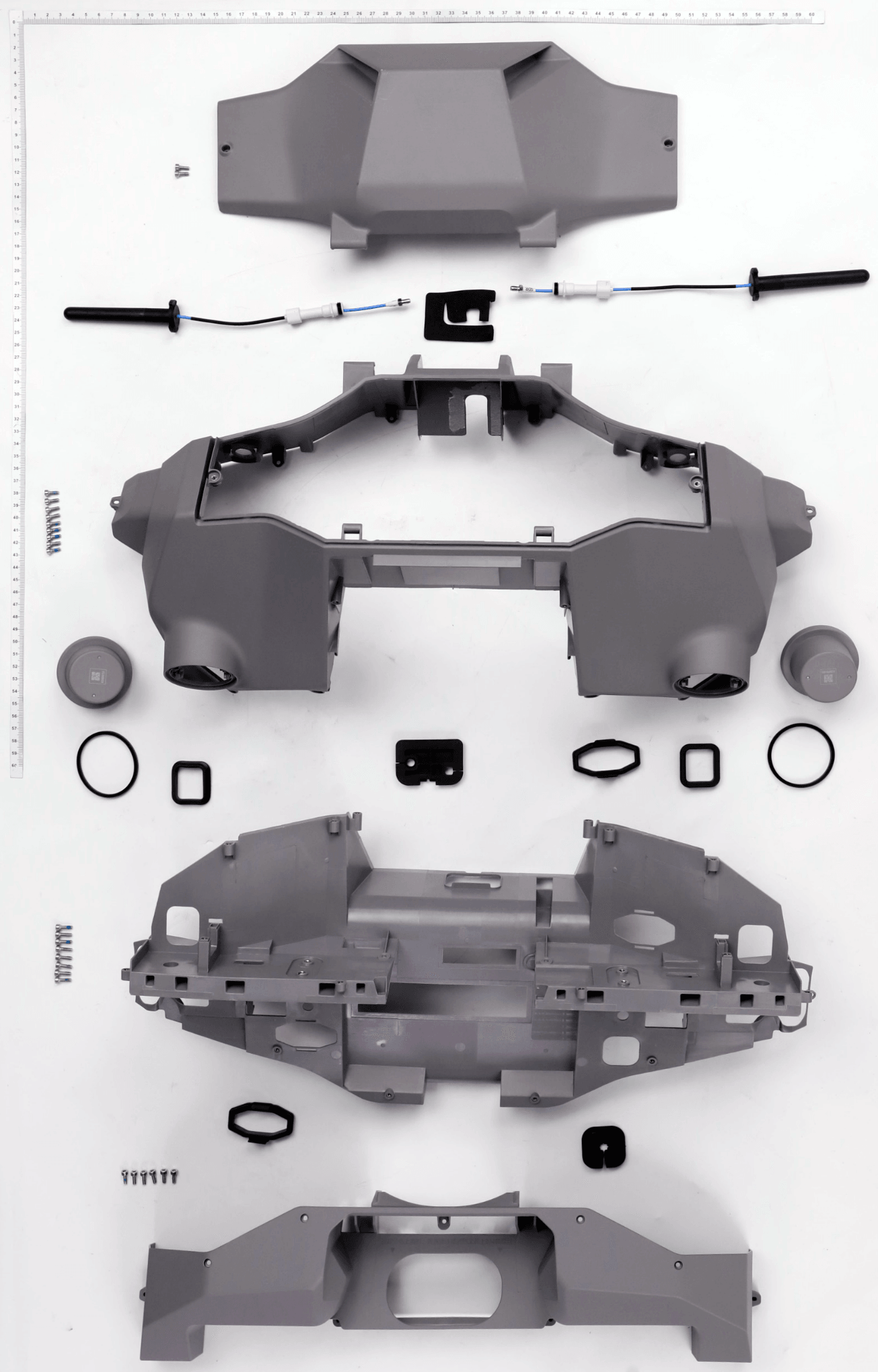

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Front Cover of Front Shell YC.JG.ZS004469 | — | |
| 2 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 3 | SDR Antenna (Front) YC.DZ.AA000462 | $46.55 | |
| 4 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 5 | Front Shell Module YC.JG.ZS004470 | — | |
| 6 | RTK Antenna Module BC.AG.SS001034 | $176.00 | |
| 7 | RTK Rubber Ring YC.JG.MY001073 | — | |
| 8 | Power Distribution Board Cable Sealing Ring YC.JG.MY001387 | — | |
| 9 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 10 | Cable Rubber Seal YC.JG.MY001846 | — | |
| 11 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 12 | Power Distribution Board Upper Cover YC.JG.ZS004612 | — | |
| 13 | Front Shell Sealing Stopper YC.JG.MY001079 | — | |
| 14 | Front Shell Bottom Plate YC.JG.ZS006145 | — | |
| 15 | Cable Rubber Seal YC.JG.MY001846 | — | |
| 16 | Power Distribution Board Cable Sealing Ring YC.JG.MY001387 | — | |
| 17 | RTK Rubber Ring YC.JG.MY001073 | — | |
| 18 | Cable Rubber Stopper YC.JG.MY001453 | — | |
| 19 | Cable Threading Hole Foam Pad YC.JG.MQ002999 | — | |
| Screw M30-HC1880-55-85 YC.WJ.L00873 | $3.05 | ||
| Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | ||
| Front Frame Aluminum Tube BC.AG.SS001103 | $188.75 | ||
| Power Cable Clamp B0 YC.JG.ZS006714 | $9.35 | ||
| FPV Sealing Foam YC.JG.MQ003801 | $2.80 | ||
| FPV Bracket YC.JG.ZS006589 | $58.00 | ||
| Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 | $0.70 | ||
| Wear-Resistant Foam (77×30) YC.JG.MQ003860 | $2.80 | ||
| Laser Radar Insulation Spacer YC.JG.ZS006590 | $1.35 | ||
| Laser Radar Bracket YC.JG.YZ001068 | $50.00 | ||
| Screw (M25-HC00580058-050025-5103-Y) YC.ST.LL000726 | $0.65 | ||
| Power Distribution Board Protective Cover YC.JG.ZS006649 | $13.30 | ||
| Power Distribution Board Module BC.AG.SS001090 | $432.40 | ||
| Screw (M50-HC01300107-087050-5103-N) YC.ST.LL000699 | $2.80 | ||
| Screw (M40-HC03800090-135020-5103-Y) YC.ST.LL000697 | $1.35 | ||
| Power Distribution Module Spring YC.JG.TT000282 | $1.35 | ||
| Power Distribution Module Spring Pad YC.JG.ZS006775 | $1.35 | ||
| Power Distribution Board Dustproof Cover YC.JG.ZS004560 | $15.05 | ||
| Thermal Conductive Pad (49.6×35.6 mm) YC.JG.MQ003697 | $1.35 | ||
| Screw (M20-PC01200100-040010-0323-Y) YC.ST.LL000551 | $0.65 | ||
| Laser Radar Signal Cable YC.XC.XX001498 | $30.60 | ||
| Laser Radar Module (Overseas) BC.AG.SS001166 | $1,420.30 | ||
| Front Radar Bracket YC.JG.YZ001069 | $58.00 | ||
| Power Cable Clamp B1 YC.JG.ZS006715 | $6.65 | ||
| RTK Bracket YC.JG.ZS006627 | $6.65 | ||
| RTK Lower Cover YC.JG.ZS006626 | $8.30 | ||
| RTK Sealing Ring YC.JG.MY001919 | $3.41 | ||
| RTK Rubber Ring YC.JG.MY001898 | $6.65 | ||
| Front Radar Sealing Foam YC.JG.MQ003696 | $6.65 | ||
| Front Top Shell YC.JG.ZS006459 | $77.00 | ||
| Cable Rubber Stopper YC.JG.MY001896 | $6.65 | ||
| Front Shell Bottom Cover YC.JG.ZS006460 | $83.00 | ||
| Downward Radar Signal Cable YC.XC.XX001427 | $50.00 | ||
| Downward Radar Module BC.AG.SS001087 | $368.20 | ||
| FPV Signal Cable YC.XC.XX001419 | $63.00 | ||
| Front Radar Signal Cable YC.XC.XX001467 | $46.55 | ||
| Front Radar Base Bracket YC.JG.ZS006690 | $25.25 | ||
| Quad Vision Sensor Cable Decorative Cover YC.JG.ZS006691 | $12.00 | ||
| Front Radar Module (Overseas) BC.AG.SS001167 | $1,704.50 | ||
| Radar Protective Foam YC.JG.MQ003829 | $1.35 | ||
| Quad-Fisheye Vision Sensor Module BC.AG.SS001093 | $759.55 | ||
| Quad Vision Sensor Cover Plate YC.JG.MQ003804 | $6.65 |
