T70P Middle Frame
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

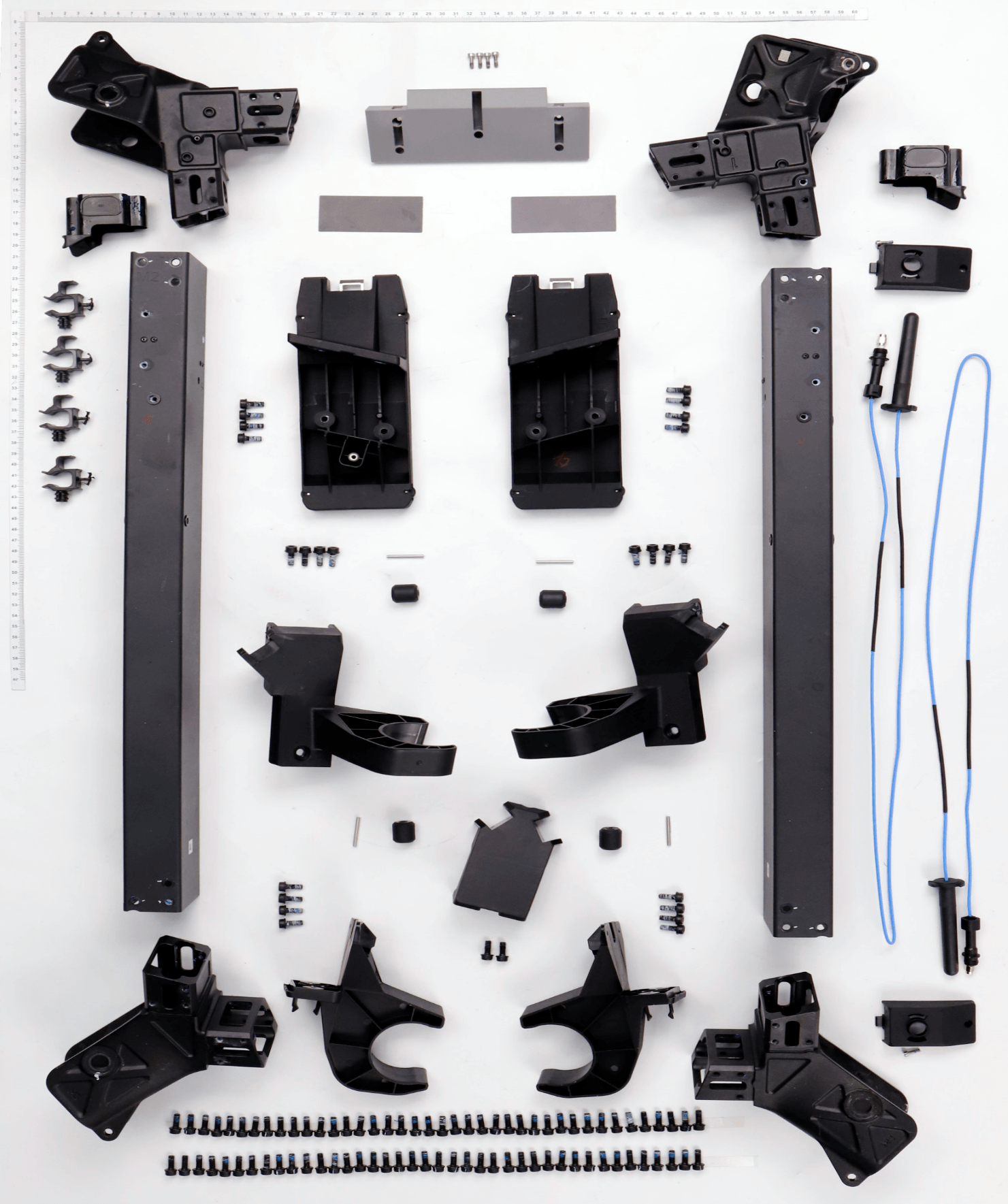

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Power Distribution Board Supporting Piece YC.JG.ZS005318 | — | |
| 2 | M2 Aircraft Arm Connector BC.AG.SS000901 | — | |
| 3 | Cable Tube YC.JG.ZS006286 | — | |
| 4 | Pipe clip YC.JG.ZS006927 | — | |
| 5 | Left Battery Slider Module BC.AG.SS001040 | — | |
| 6 | Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | |
| 7 | Roller Shaft YC.JG.QX004396 | — | |
| 8 | Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | |
| 9 | Roller YC.JG.ZS006300 | — | |
| 10 | Middle Frame Aluminum Tube (Left) BC.AG.SS001051 | — | |
| 11 | Aircraft Arm Fixing Piece (Front Left) YC.JG.ZS006121 | — | |
| 12 | Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | |
| 13 | M3 Aircraft Arm Connector BC.AG.SS001037 | — | |
| 14 | Aircraft Arm Fixing Piece (Rear Left) YC.JG.ZS006124 | — | |
| 15 | Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | |
| 16 | M4 Aircraft Arm Connector BC.AG.SS001038 | — | |
| 17 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 18 | SDR Antenna Rear Shell YC.JG.ZS006128 | — | |
| 19 | Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | |
| 20 | Aircraft Arm Fixing Piece (Rear Right) YC.JG.ZS006123 | — | |
| 21 | Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | |
| 22 | Payload Rear Bracket YC.JG.ZS006125 | — | |
| 23 | Aircraft Arm Fixing Piece (Front Right) YC.JG.ZS006122 | — | |
| 24 | Middle Frame Aluminum Tube (Right) BC.AG.SS001052 | — | |
| 25 | Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | |
| 26 | Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485 | $1.85 | |
| 27 | SDR Antenna (Rear) YC.DZ.AA000556 | — | |
| 28 | Right Battery Slider Module BC.AG.SS001039 | — | |
| 29 | Cable Tube YC.JG.ZS006286 | — | |
| 30 | M1 Aircraft Arm Connector BC.AG.SS000900 | — | |
| 31 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| Landing Gear Fixing Piece (Front Right) YC.JG.ZS003464 | $69.00 | ||
| Spray Tank Fixing Piece_Internal Roller YC.SJ.WS002500 | $2.05 | ||
| Landing Gear Fixing Piece (Front Left) YC.JG.ZS003465 | $69.00 |
