T70P Spreading Spray Tank
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

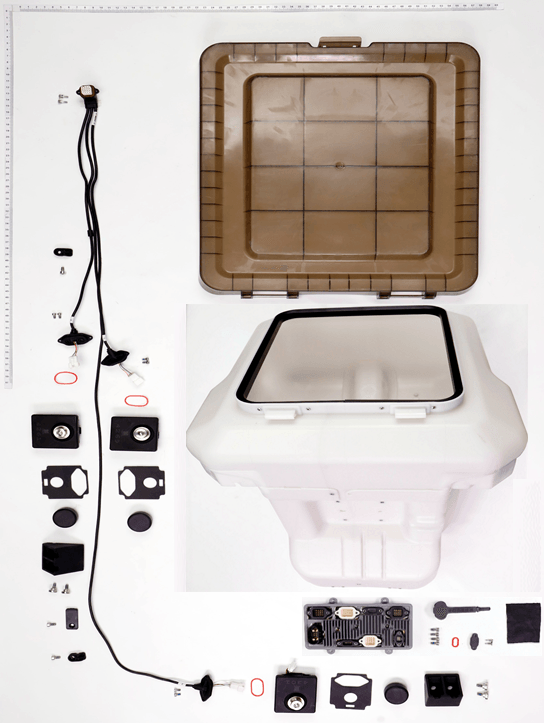

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 | $0.65 | |
| 2 | Weight Sensor Signal Cable YC.XC.XX001401 | — | |
| 3 | Cable Clamp 01 YC.JG.ZS006138 | — | |
| 4 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 5 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 6 | Weight Sensor Module BC.AG.SS000887 | — | |
| 7 | Damping Rubber Pad YC.JG.MQ002549 | — | |
| 8 | Weight Sensor Rubber Cover YC.JG.MY001377 | $9.00 | |
| 9 | Spread Tank Block YC.JG.MY001780 | — | |
| 10 | Screw (M40-HC00600060-120030-0003-N) YC.ST.LL000668 | — | |
| 11 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 12 | Cable Clamp 02 YC.JG.ZS006139 | — | |
| 13 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 14 | Cable Clamp 01 YC.JG.ZS006138 | — | |
| 15 | Spread Tank Block YC.JG.MY001780 | — | |
| 16 | Screw (M40-HC00600060-120030-0003-N) YC.ST.LL000668 | — | |
| 17 | Payload Control Board BC.AG.SS001068 | $552.70 | |
| 18 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 19 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 | $0.65 | |
| 20 | 4-pin Cable Rubber Cover YC.JG.ZS006290 | $2.10 | |
| 21 | 4-pin Cable Sealing Ring YC.JG.MY001810 | $2.00 | |
| 22 | Socket Rubber Stopper YC.JG.MY001832 | — | |
| 23 | Spread Tank (100L) YC.JG.ZS006190 | — | |
| 24 | Screw (M40-HC01200120-072040-5103-Y) YC.ST.LL000705 | $0.60 | |
| 25 | Spread Tank Cover YC.JG.ZS004569 | — |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
