T70P Misting Spray Lance
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

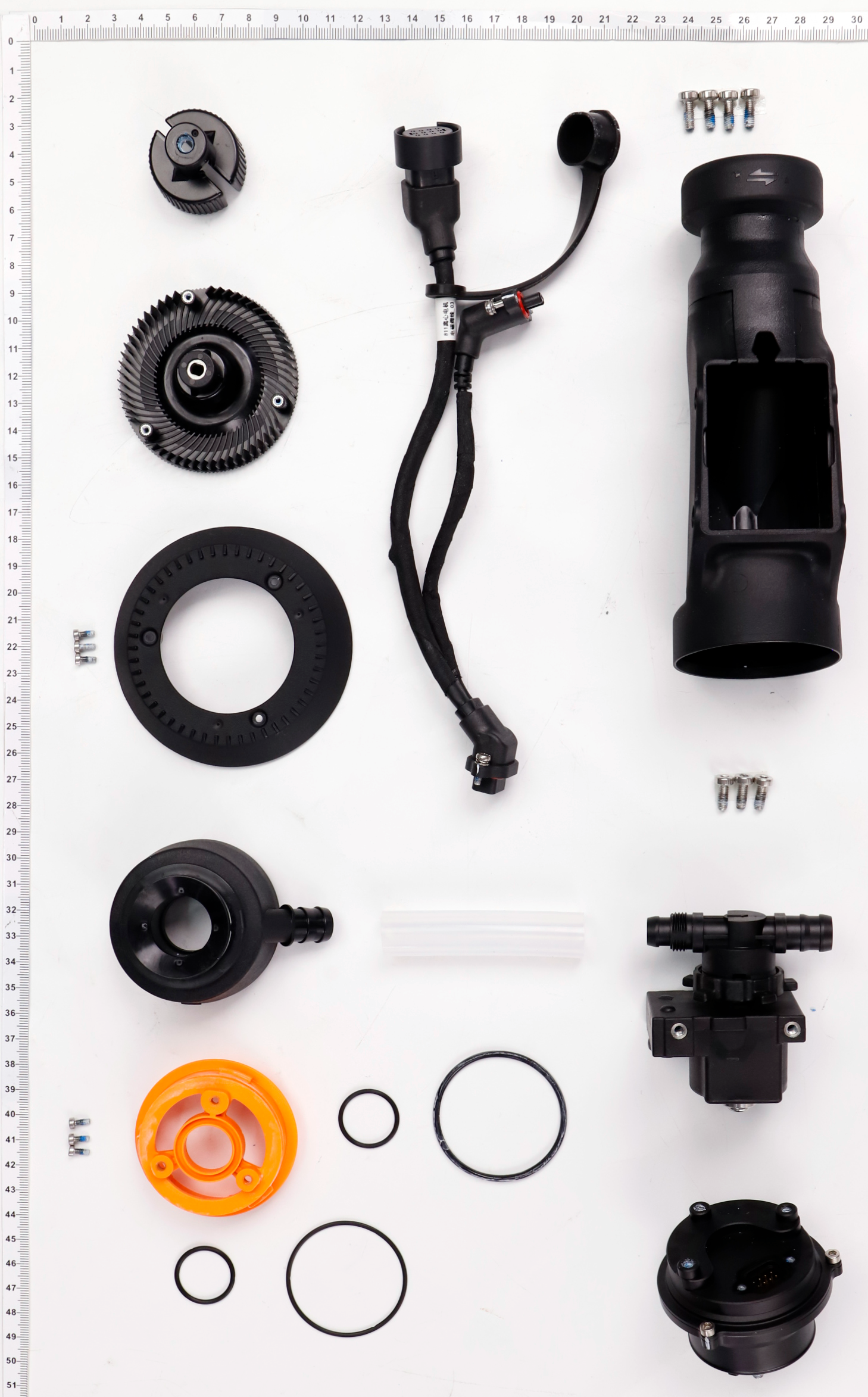

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | R-Type Pin YC.JG.TT000203 | $0.90 | |
| 2 | Centrifugal Sprinkler Nut YC.JG.ZS004510 | $1.76 | |
| 3 | Mist Sprinkler Lower Disk YC.JG.ZS006907 | $23.65 | |
| 4 | Centrifugal Sprinkler Adapter Cable YC.XC.XX001394 | $31.68 | |
| 5 | Screw (M25-HF00550038-040016-3126-Y) YC.ST.LL000381 | $0.72 | |
| 6 | Mist Sprinkler Upper Disk YC.JG.ZS006906 | $4.07 | |
| 7 | Sprinkler Soft Hose YC.JG.JS000067 | $1.55 | |
| 8 | Mist Sprinkler Lower Motor BC.AG.SS001175 | $263.89 | |
| 80 | Mist Sprinkler Upper Motor | — | |
| 9 | Mist Sprinkler Funnel YC.JG.ZS006905 | $23.65 | |
| 10 | Inlet Sealing Ring YC.JG.MY002043 | $2.53 | |
| 11 | Solenoid Valve Module BC.AG.SS001073 | $61.00 | |
| 12 | Screw (M40-HC01000100-072028-5103-N_01) YC.WJ.LL000232 | $2.05 | |
| 13 | Mist Spray Lance Shell YC.JG.ZS007536 | — | |
| 14 | Screw (M40-HC01000100-072028-5103-N_01) YC.WJ.LL000232 | $2.05 | |
| 15 | Thumb Nut YC.JG.ZS006171 | $2.30 | |
| 16 | ESC Sprinkler Adapter Cable YC.XC.XX001463 | — | |
| 17 | Hose (Optional) YC.JG.JS000076 | — |
