T70P Spray Lance

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

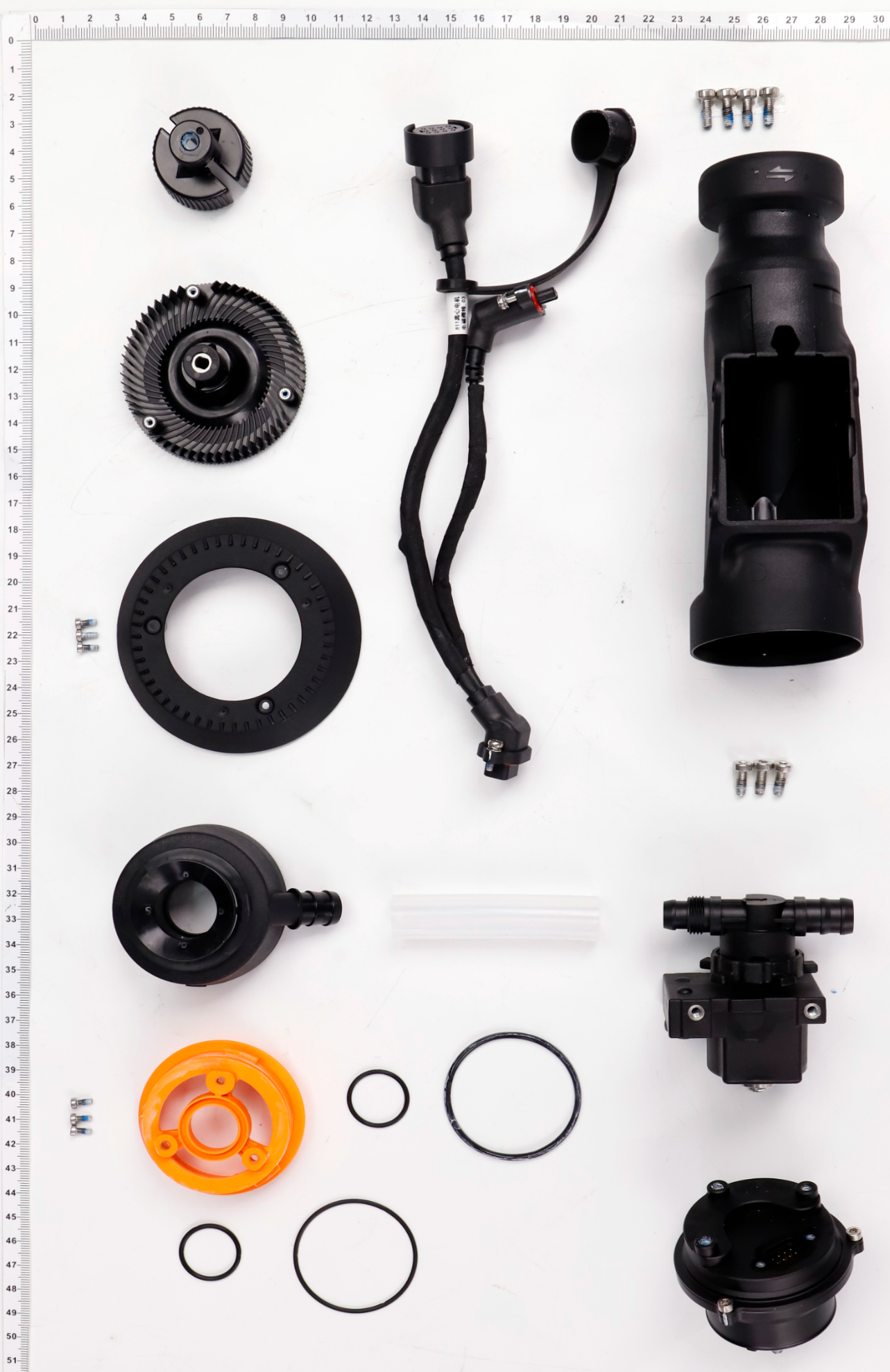

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.

No.	Part	$ Each (inc. GST)
1	Sprinkler Thumb Nut YC.JG.ZS006218	$3.10
2	Centrifugal Sprinkler Lower Disk YC.JG.ZS006219	$34.60
3	Centrifugal Sprinkler Adapter Cable YC.XC.XX001394	$31.68
4	M25-HC060060-45-85 YC.WJ.L01549	$2.75
5	Centrifugal Sprinkler Upper Disk YC.JG.ZS007737	$7.55
6	Sprinkler Soft Hose YC.JG.JS000067	$1.55
7	Sprinkler Funnel YC.JG.ZS006216	$43.00
8	Sprinkler Inner Sealing Ring (OD=23.6 mm) YC.JG.MY001829	$4.55
9	Sprinkler Funnel Bracket YC.JG.ZS006215	$28.60
10	M25-HC060060-45-85 YC.WJ.L01549	$2.75
11	Sprinkler Inner Sealing Ring (OD=23.6 mm) YC.JG.MY001829	$4.55
12	Pump Sealing Ring YC.JG.MY001052	$11.95
13	Centrifugal Motor BC.AG.SS001028	$453.00
14	Motor Sealing Ring (OD= 46.8 mm) YC.JG.MY001828	$10.60
15	Solenoid Valve Module BC.AG.SS001073	$61.00
16	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232	$2.05
17	Mist Spray Lance Shell YC.JG.ZS007536	—
18	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232	$2.05
	R-Type Pin YC.JG.TT000203	$0.90
	Centrifugal Sprinkler Nut YC.JG.ZS004510	$1.76
	Screw M25-HC00400040-050020-0003-N YC.WJ.LL000138	$3.60
	Spray Lance Bottom Shell YC.JG.ZS006807	$28.50
	Spray Lance Outer Shell YC.JG.ZS006356	$29.95
	Spring Fixing Piece YC.JG.ZS006592	$4.85
	Circlip YC.JG.BJ003348	$1.00
	Spray Lance Shaft Sleeve YC.JG.ZS006357	$18.40
	M60-HX100060-5103_01 YC.WJ.LM000044	$3.60
	Spray Lance Shaft YC.JG.QX004533	$4.85
	Compression Spring YC.JG.TT000275	$4.85
	Spray Lance Shaft Connector YC.JG.ZS006594	$28.05
	Spray Lance Slider YC.JG.ZS006593	$4.85
	Spray Lance Shaft Connector Shell (M2 & M4) YC.JG.ZS006808	$6.65
	Spray Lance Shaft Connector Shell (M1 & M3) YC.JG.ZS006809	$6.65
	Aircraft Arm Hose YC.JG.JS000077	$18.40
	Spray Lance Support Rod YC.JG.QX004534	$30.60
	Centrifugal Spray Lance Cable YC.XC.XX001460	$45.30
