T25P Cable Distribution Board
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

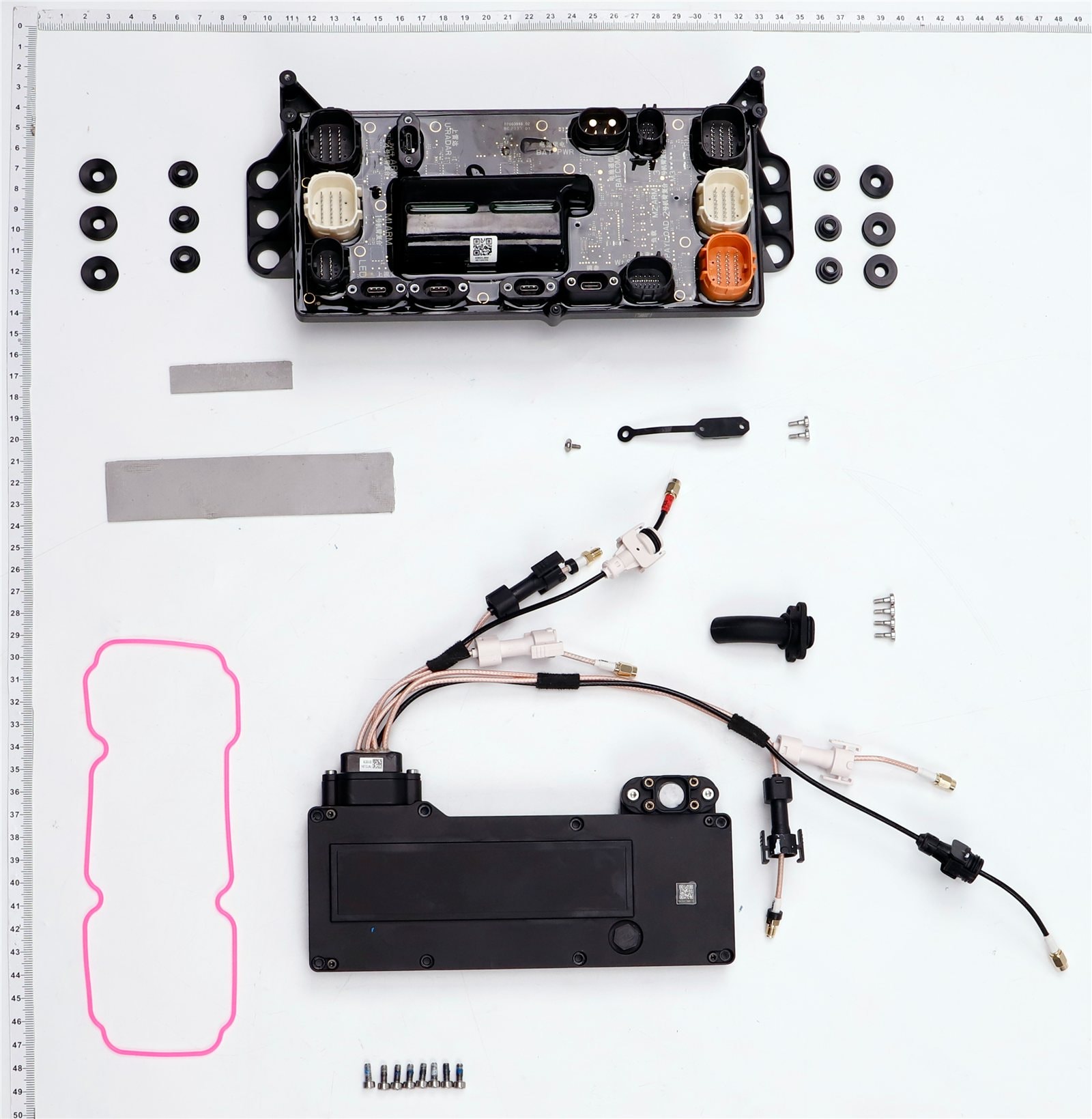

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Payload Control Board BC.AG.SS000861 | — | |
| 2 | Damping Pad A YC.JG.QX002311 | — | |
| 3 | Damping Pad B YC.JG.QX002312 | $9.50 | |
| 4 | Thermally Conductive Pad (53.1 x 12.9 mm) YC.JG.MQ002623 | $1.65 | |
| 5 | Thermally Conductive Pad (125.35 x 27.7 mm) YC.JG.MQ002463 | — | |
| 6 | Aerial-Electronics Module Sealing Ring YC.JG.MY001348 | — | |
| 7 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 8 | Aerial-Electronics System Module BC.AG.SS001138 | — | |
| 9 | Barometer Curve Connector YC.JG.MY001349 | — | |
| 10 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 11 | M20-HPW00600060-065016-5103-Y_02 YC.WJ.LL000235 | $0.75 | |
| 12 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 13 | Type-C Port Waterproof Cover YC.JG.MY000389 | $3.05 | |
| Vent Trap YC.SJ.S00717 | $37.25 | ||
| T20-PC00400040-040010-0323-N YC.WJ.LL000396 | $2.25 | ||
| Avionics_Barometer Protection Foam YC.PM.QT000137 | $2.05 | ||
| Barometer Waterproof Permeability Film YC.QT.QT000167 | $3.05 | ||
| Thermal Conductive Pad (11×42 mm) YC.JG.MQ003711 | $1.35 | ||
| Cable Distribution Board Module BC.AG.SS001091 | $560.75 | ||
| Damping Pad A YC.JG.ZS006682 | $4.00 | ||
| Aerial-Electronics Module (Overseas) BC.AG.SS001131 | $2,414.95 | ||
| Thermal Conductive Pad (162×23.5 mm) YC.JG.MQ003708 | $2.80 | ||
| Aerial-Electronics Module Sealing Ring YC.JG.MY001920 | $6.65 | ||
| Barometer Tube YC.JG.MY001918 | $6.65 | ||
| Screw (M40-HC01750080-100034-5103-Y) YC.ST.LL000718 | $0.65 |
