T25P Spray Tank (1)

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.

No.	Part	$ Each (inc. GST)

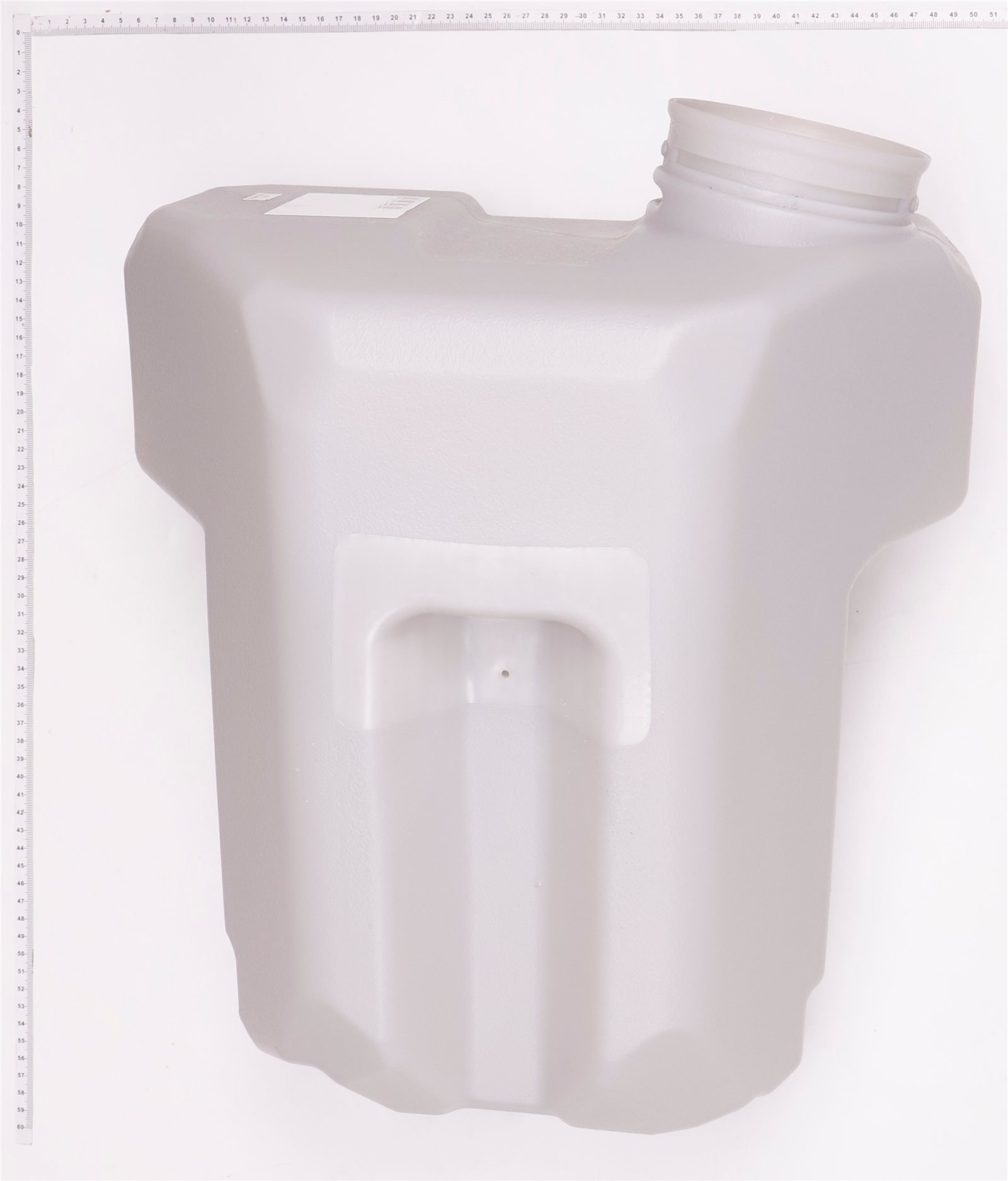

1	Spray Tank (20L) YC.JG.CS000017	—
	Spray Tank Cover Waterproof Permeability Cover YC.JG.ZS002250	$0.95
	Spray Tank Cover YC.JG.ZS002251	$55.00
	Spray Tank Cover Waterproof Permeability Film YC.JG.MY000678	$2.85
	Spray Tank Cover Sealing Ring YC.JG.MY000679	$3.65
	Filter Rubber Ring YC.SJ.J01186	$5.85
	Spray Tank Y-tee Part YC.JG.ZS002232	$21.90
	Spray Tank Y-tee Part Sealing Ring YC.JG.MY000687	$3.80
	Water Outlet Rotation Cover YC.JG.ZS002233	$3.65
	Spray Tank Inlet Filter YC.JG.ZS006111	$41.80
	Dosing Part Rubber Cover YC.JG.MY001721	$31.46
	Screw M40-HC080080-68-85 YC.WJ.L01234	$3.60
	Liquid Level Gauge Module BC.AG.SS001122	$153.90
	Liquid Level Gauge External Hose YC.JG.JS000085	$3.10
	Liquid Level Gauge Hose Module BC.AG.SS001121	$34.60
	Liquid Level Gauge External Hose Rubber Stopper YC.JG.ZS006843	$7.55
	Liquid Level Gauge Base Sealing Ring YC.JG.MY001801	$1.55
	Liquid Level Gauge Base YC.JG.ZS006114	$28.60
	Impeller Pump Bracket YC.JG.ZS006360	$13.55
	Spray Tank Y-tee Part Nut YC.JG.ZS005453	$5.75
	Liquid Level Gauge Hose Module YC.JG.ZS005454	$35.15
	Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698	$0.65
	Damping Rubber Pad YC.JG.MY000845	$0.95
	Spray Tank Cover Sealing Ring YC.JG.MY001720	$22.55
	Spray Tank Cover YC.JG.ZS006110	$28.60
	Spray Tank (100L) YC.JG.CS000050	$480.70
	Aluminum Clip YC.ST.AS000053	$6.65
	Spray Tank Lanyard YC.ST.AS000043	$6.65
	16-pin Connector Sealing Ring YC.JG.MY001811	$1.35
	16-pin Connector Plastic Cover YC.JG.ZS006291	$1.35
	Payload Control Board BC.AG.SS001068	$552.70
	20-pin Connector Plastic Cover YC.JG.ZS006858	$1.35
	20-pin Connector Sealing Ring YC.JG.MY001989	$1.35
	Flow Meter Bracket YC.JG.ZS004712	$1.65
	Liquid Level Gauge Signal Cable YC.XC.XX001398	$30.60
	Delivery Pump Flow Meter Cable YC.XC.XX001396	$58.00

Can't spot your part? Search by part number on the search page or call 1300 916 075.
