T25P Front Frame (2)
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

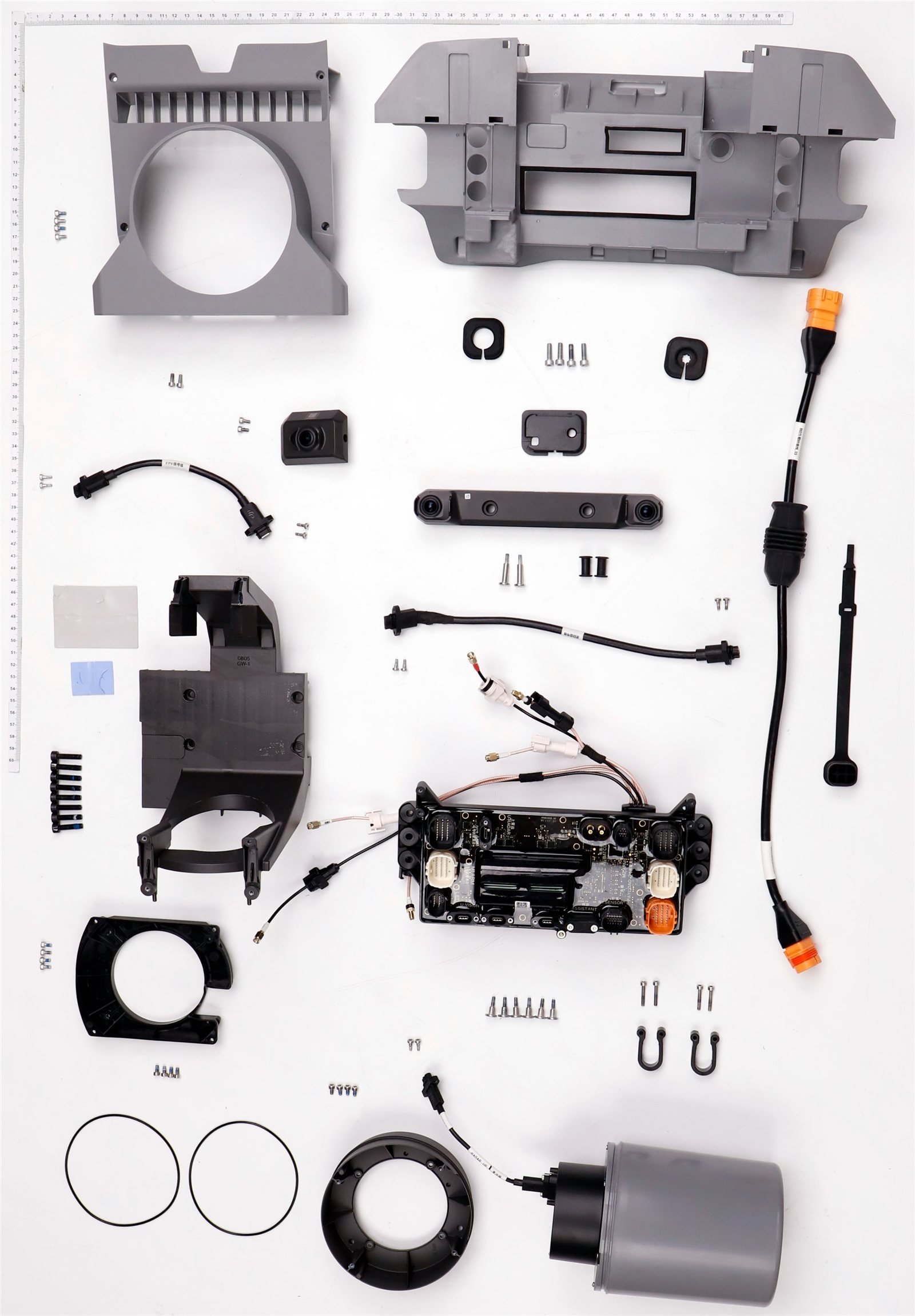

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Front Shell_Top Cover YC.JG.ZS004593 | — | |
| 2 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 3 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 4 | FPV Module (Incl. Signal Cable) BC.AG.SS000863 | — | |
| 5 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 6 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 7 | FPV Camera Signal Cable YC.XC.XX001215 | — | |
| 8 | Thermally Conductive Pad (71 x 51 mm) YC.JG.MQ002494 | — | |
| 9 | Thermally Conductive Pad (35 x 27 mm) YC.JG.MQ002497 | — | |
| 10 | Front Radar Bracket YC.JG.YZ000805 | — | |
| 11 | Screw M50-HC02000200-087052-4203-Y YC.ST.LL000489 | — | |
| 12 | Front Radar Base Bracket YC.JG.ZS004582 | — | |
| 13 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 14 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 15 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 16 | Radar Sealing Ring YC.JG.MY001041 | — | |
| 17 | Front Radar Base YC.JG.YZ000803 | — | |
| 18 | Front Radar Module (Incl. Signal Cable) BC.AG.SS001004 | — | |
| 19 | Front Radar Signal Cable YC.XC.XX001212 | — | |
| 20 | M30-HC01450080-100020-5103-Y YC.ST.LL000226 | — | |
| 21 | Propulsion Cable Clip YC.JG.ZS003453 | — | |
| 22 | Screw M30-HC1880-55-85 YC.WJ.L00873 | $3.05 | |
| 23 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 25 | Binocular Vision Sensor Signal Cable YC.XC.XX001214 | — | |
| 26 | Female Connector Rubber Stopper YC.JG.ZS005366 | — | |
| 27 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 28 | Screw M30-HC02380080-094020-5103-Y YC.ST.LL000541 | — | |
| 29 | Binocular Vision Sensor Damping Pad YC.JG.MY001353 | — | |
| 30 | Duct Tape YC.JG.MQ002156 | — | |
| 31 | Binocular Fisheye Sensor (Incl. Signal Cable) BC.AG.SS000873 | — | |
| 32 | Payload Adapter Cable YC.XC.XX001208 | — | |
| 33 | Cable Rubber Stopper YC.JG.MY001453 | — | |
| 34 | M40-HC01400140-070039-4105-Y YC.ST.LL000148 | — | |
| 35 | Front Shell Sealing Stopper YC.JG.MY001079 | — | |
| 36 | Front Shell Rubber Stopper YC.JG.MY001490 | — | |
| 37 | Sealing Foam (133.3 x 35.7 mm) YC.JG.MQ002641 | — | |
| 38 | Front Shell Bottom Plate YC.JG.ZS004478 | — | |
| 39 | Sealing Foam (59.5 x 19.3 mm) YC.JG.MQ002642 | — |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
