T25P Spreader 1
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

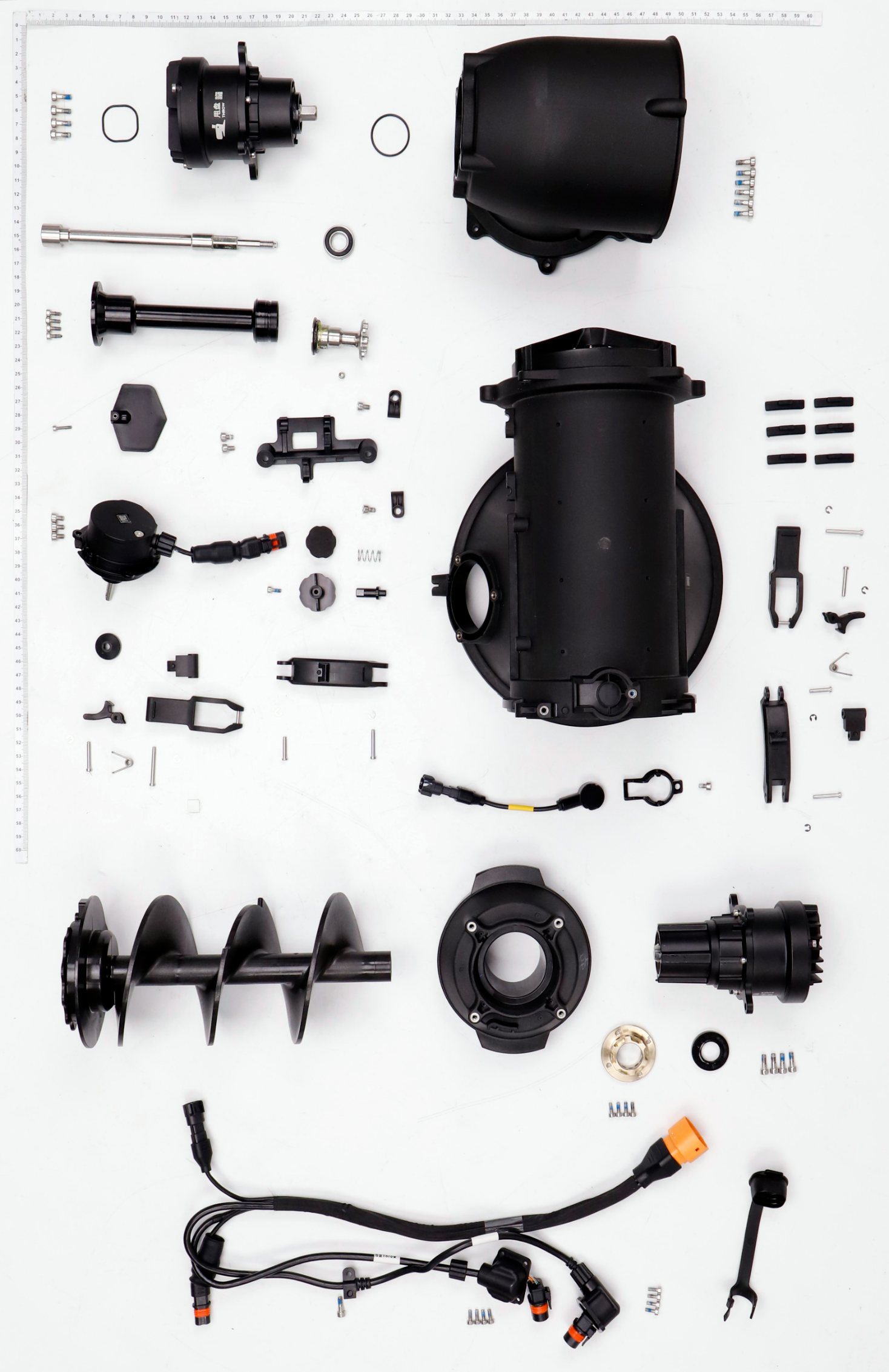

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Spinner Disk Shaft Sealing Ring YC.JG.MY001343 | — | |
| 2 | Spinner Disk Motor BC.AG.SS000913 | — | |
| 3 | Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 | — | |
| 4 | Motor Sealing Ring YC.JG.MY001342 | — | |
| 5 | One-Way Valve Core Sealing Ring YC.JG.MY001329 | — | |
| 6 | Spinner Disk Shaft YC.JG.QX003603 | — | |
| 7 | Shaft Sleeve Module BC.AG.SS000916 | — | |
| 8 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 9 | Screw YC.ST.LL000469.01 YC.ST.LL000469 | — | |
| 10 | Sensing Part YC.JG.ZS004580 | $7.00 | |
| 11 | Screw M25-HC01200120-045025-5103-Y YC.WJ.L00006 | $1.38 | |
| 12 | Screw M40-HC060060-55-85 YC.WJ.L00876 | — | |
| 13 | Composite Cable Clip YC.JG.ZS005201 | — | |
| 14 | Screw M40-HC060060-55-85 YC.WJ.L00876 | — | |
| 15 | Material Detection Motor BC.AG.SS000914 | $392.00 | |
| 16 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 17 | Fixing Knob YC.SJ.WS001064 | — | |
| 18 | Reduction Gearbox Motor Dustproof Cover YC.JG.MY000387 | $6.60 | |
| 19 | Medium Pin (22.2 mm) YC.JG.QX003649 | $4.30 | |
| 20 | Long Pin (29.4 mm) YC.JG.QX003648 | $4.00 | |
| 21 | Short Pin (17.6 mm) YC.JG.QX003650 | $4.30 | |
| 22 | Medium Pin (22.2 mm) YC.JG.QX003649 | $4.30 | |
| 23 | Auger Sensor BC.AG.SS000917 | — | |
| 24 | Large Auger BC.AG.SS000918 | — | |
| 25 | Auger Motor Base YC.JG.ZS004554 | — | |
| 26 | Swipe Bearing YC.ST.CG000012 | — | |
| 26.5 | 4-pin Cable Sleeve YC.JG.MY001491 | $0.90 | |
| 27 | Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 | — | |
| 28 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 29 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 30 | Male Connector Rubber Stopper YC.JG.ZS005365 | — | |
| 31 | Spreading Signal Cable YC.XC.XX001205 | — | |
| 32 | Screw M30-HC080080-55-85 YC.WJ.L00868 | $3.05 | |
| 33 | Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 | — | |
| 35 | Auger Motor BC.AG.SS000915 | — | |
| 36 | Motor Sealing Ring YC.JG.MY001342 | — | |
| 37 | Screw M40-HC060060-55-85 YC.WJ.L00876 | — | |
| 38 | Quick-Release Clamp YC.JG.ZS004696 | $4.30 | |
| 39 | Quick-Release Rod YC.JG.ZS004557 | $4.30 | |
| 40 | Liquid Level Gauge Bracket YC.JG.ZS002237 | — | |
| 41 | Torsion Spring YC.JG.TT000204 | $0.90 | |
| 42 | Lever 2 YC.JG.ZS004556 | $2.60 | |
| 43 | E-Type Circlip (OD=6 mm) YC.JG.BJ002409 | — | |
| 44 | Lever 1 YC.JG.ZS004555 | $4.30 | |
| 45 | Spread Tank Lock Button YC.JG.QX003018 | — | |
| 46 | Lock Button Spring YC.JG.TT000163 | — | |
| 47 | Spray System_ Locking Device EVA Foam YC.BZ.XX000417 | — | |
| 48 | Screw M40-HC060060-55-85 YC.WJ.L00876 | — | |
| 49 | Silicone Rubber Pad YC.JG.MY001300 | — | |
| 50 | Cable Clip YC.JG.ZS004913 | $0.90 | |
| 51 | Auger External Shell YC.JG.ZS004551 | — | |
| 52 | Spinner Disk Flange YC.JG.QX003604 | — | |
| 53 | Bearing (OD=24 mm) YC.ST.CT000101 | — | |
| 54 | Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 | — | |
| 55 | Spinner Disk External Shell YC.JG.ZS004552 | — |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
