T25P M3 Arm
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

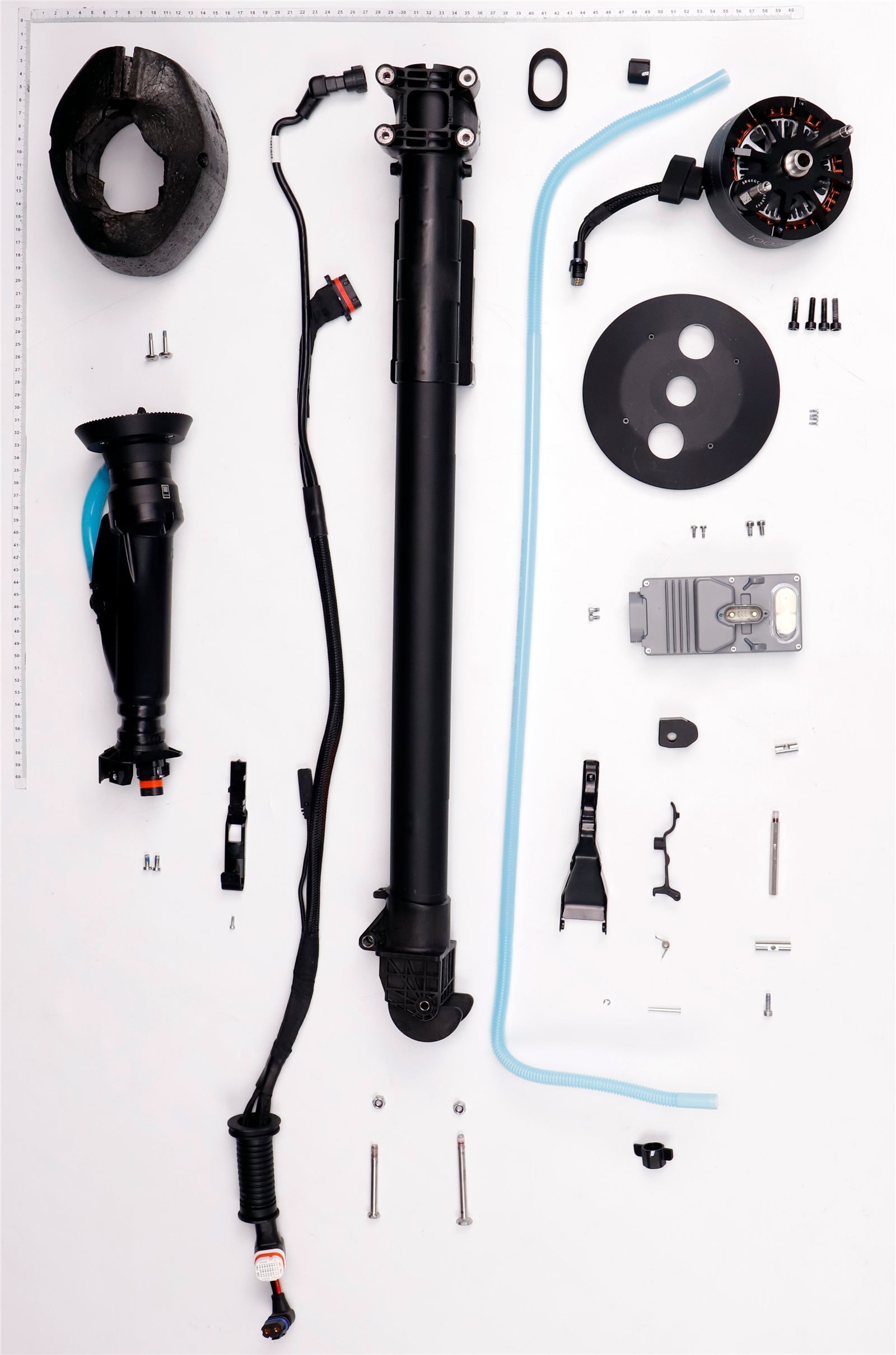

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | M3 Aircraft Arm (Rear Left) BC.AG.SS000867 | — | |
| 2 | Motor Cover YC.JG.FP000039 | — | |
| 3 | M3 & M4 Aircraft Arm ESC Composite Cable YC.XC.DD000678 | — | |
| 4 | M30-HT01930060-110025-5103-Y YC.WJ.LL000213 | — | |
| 6 | In-Position Detector Bracket YC.JG.ZS004019 | — | |
| 7 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 | |
| 8 | Screw T25-HC00800080-045025-4203-N YC.ST.LL000544 | — | |
| 9 | Locking Piece Fixing Screw Bolt YC.JG.LD000041 | $10.00 | |
| 10 | M60-HX100060-5103_01 YC.WJ.LM000044 | $3.60 | |
| 11 | Aircraft Arm Fixing Screw Bolt YC.JG.LD000045 | — | |
| 12 | Thumb Nut YC.JG.ZS003594 | — | |
| 13 | M60-HX100060-5103_01 YC.WJ.LM000044 | $3.60 | |
| 14 | E-Type Circlip (OD=6 mm) YC.JG.BJ002409 | — | |
| 15 | M40-HC01400140-070039-4105-Y YC.ST.LL000148 | — | |
| 16 | Buckle Rotation Shaft YC.JG.QX003014 | — | |
| 17 | Locking Piece Aircraft Arm Shaft YC.JG.QX002089 | $7.00 | |
| 18 | Buckle Torsion Spring YC.JG.TT000165 | — | |
| 19 | Locking Piece Connection Rod YC.JG.QX003942 | — | |
| 20 | Buckle Module BC.AG.SS000701 | $27.50 | |
| 21 | Locking Piece Handle YC.JG.BJ003468 | — | |
| 22 | Locking Piece_Handle Connecting Rod Shaft YC.JG.QX004662 | — | |
| 23 | Locking Piece Handle Rubber Sleeve YC.JG.ZS006831 | — | |
| 24 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 25 | ESC Module BC.AG.SS000869 | — | |
| 26 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 27 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 28 | Aircraft Arm Hose YC.JG.JS000045 | — | |
| 29 | M20-TC00700060-033010-0004-Y YC.ST.LL000208 | — | |
| 30 | Motor Upper Cover YC.JG.ZS005501 | — | |
| 31 | Screw M50-HC02000200-087052-4203-Y YC.ST.LL000489 | — | |
| 32 | Motor Sticker YC.BZ.TZ001048 | — | |
| 33 | 10028 Propulsion Motor BC.AG.SS000706 | — | |
| 34 | Hose Nut (M15) YC.JG.ZS003460 | $2.50 | |
| 35 | Aircraft Arm Rubber YC.JG.MY001465 | — | |
| 639 | M1 & M2 Aircraft Arm ESC Composite Cable | — | |
| 642 | M1 Aircraft Arm (Front Right) | — | |
| 645 | M2 Aircraft Arm (Front Left) | — | |
| 648 | M4 Aircraft Arm (Rear Right) | — | |
| Locking Piece Connection Rod YC.JG.QX002088 | $9.00 | ||
| Motor Upper Cover YC.JG.ZS002379 | $11.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
