T25P Landing Gear
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

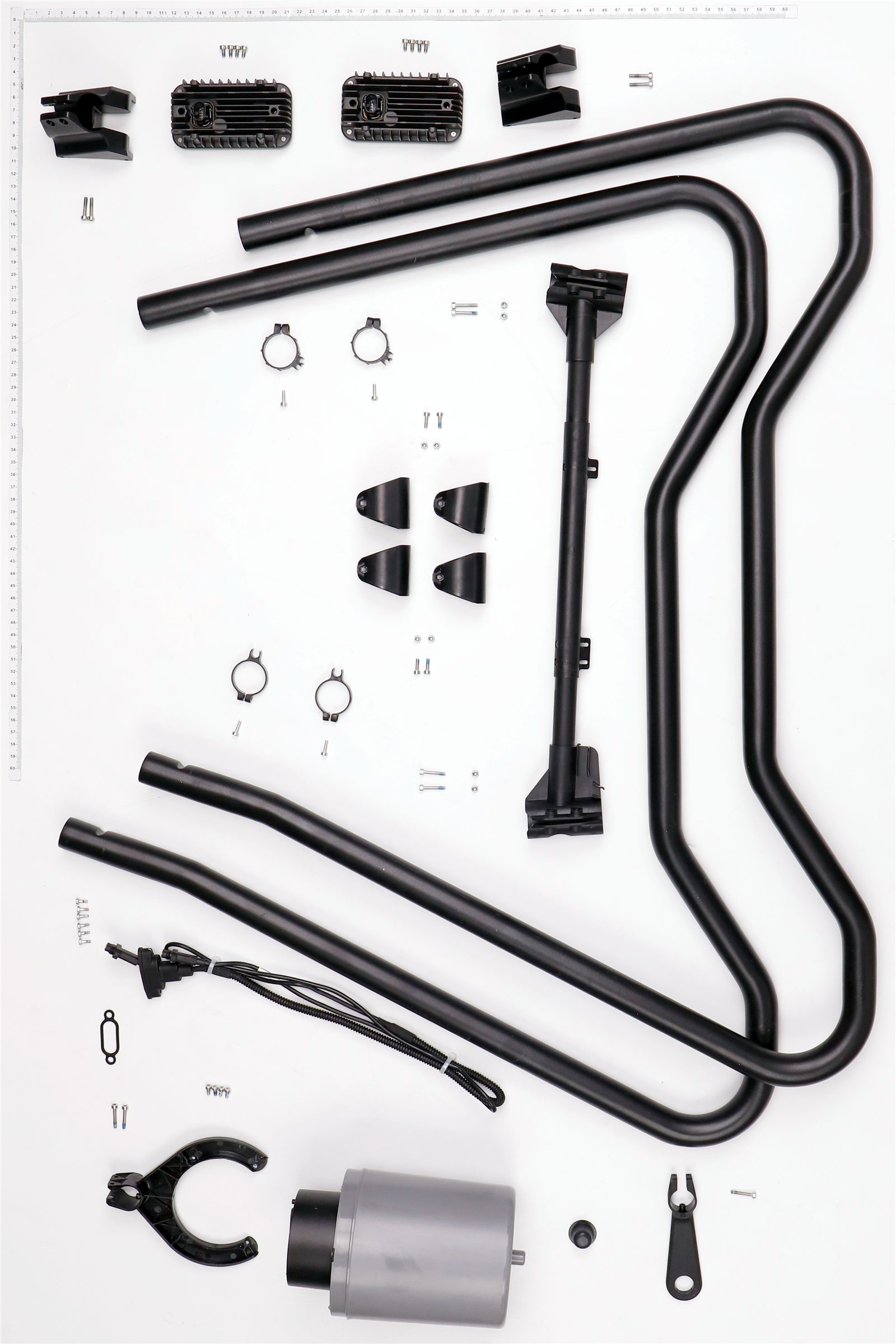

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 2 | Beacon BC.AG.SS000877 | — | |
| 3 | Beacon Bracket YC.JG.ZS004578 | — | |
| 4 | Screw M30-HC1880-55-85 YC.WJ.L00873 | $3.05 | |
| 5 | M3 Nut YC.WJ.L00877 | — | |
| 6 | Screw M30-HC1880-55-85 YC.WJ.L00873 | $3.05 | |
| 7 | Landing Gear Cable Clip B YC.JG.ZS005117 | — | |
| 8 | Screw T30-HC01000100-057030-5103-N YC.ST.LL000543 | $0.65 | |
| 9 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 10 | M3 Nut YC.WJ.L00877 | — | |
| 11 | Bottom Rubber Pad YC.JG.ZS003558 | — | |
| 12 | Landing Gear Crossbeam (Rear) YC.JG.ZS005273 | — | |
| 13 | Landing Gear Cable Clip YC.JG.ZS003725 | — | |
| 14 | Screw T30-HC01000100-057030-5103-N YC.ST.LL000543 | $0.65 | |
| 15 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | |
| 16 | Rear Radar Signal Cable YC.XC.XX001216 | — | |
| 17 | Rubber Pad YC.JG.MY001131 | — | |
| 18 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 19 | Screw M30-HC1880-55-85 YC.WJ.L00873 | $3.05 | |
| 20 | Radar Supporting Piece (Left) YC.JG.ZS004711 | — | |
| 21 | Rear Radar Module (Incl. Signal Cable) BC.AG.SS001005 | — | |
| 22 | Anti-Wear Rubber Stopper YC.JG.MY001575 | — | |
| 23 | Radar Supporting Piece (Right) YC.JG.ZS003492 | — | |
| 24 | Screw M30-HC1880-55-85 YC.WJ.L00873 | $3.05 | |
| 25 | Landing Gear Aluminum Tube YC.JG.BJ002268 | — | |
| Screw (M40-HC04000140-070040-5103-Y) YC.ST.LL000607 | $1.00 | ||
| Spotlight Signal Cable (Long) YC.XC.XX001393 | $36.00 | ||
| Spotlight BC.AG.SS001020 | $207.90 | ||
| Landing Gear Aluminum Tube YC.JG.BJ004111 | $94.00 | ||
| Landing Gear Hose Clamp YC.JG.ZS006786 | $6.65 | ||
| Anti-collision Soft Rubber YC.JG.MY002074 | $9.20 | ||
| Landing Gear Payload Cable Clamp B YC.JG.ZS006801 | $1.10 | ||
| Bottom Rubber Pad YC.JG.ZS006655 | $5.15 | ||
| M40-HX088065-5103 YC.ST.LM000107 | $0.70 | ||
| Spotlight Signal Cable YC.XC.XX001470 | $41.15 | ||
| Spotlight Bracket YC.JG.ZS006719 | $12.00 | ||
| Payload Adapter Cable YC.XC.DD000815 | $79.00 | ||
| Landing Gear Y-tee Part Cover YC.JG.ZS006708 | $5.15 | ||
| Screw (M40-HC04800220-088047-5103-Y) YC.ST.LL000731 | $1.10 | ||
| Landing Gear Spray Lance Connector YC.JG.ZS006709 | $15.95 | ||
| Landing Gear Crossbeam (Rear) YC.JG.ZS006693 | $60.00 | ||
| Rear Radar Signal Cable (Short) YC.XC.XX001523 | $41.15 | ||
| Rear Radar Module BC.AG.SS001107 | $449.35 | ||
| Rear Radar Bracket YC.JG.ZS007274 | $9.20 | ||
| Screw (M40-HCW01000070-070040-5104-N) YC.ST.LL000341 | $0.90 | ||
| Spray Tank C-Type Mounting Piece YC.JG.ZS006630 | $6.05 | ||
| Landing Gear Crossbeam (Front) YC.JG.ZS006692 | $47.80 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
