T25P Middle Frame
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

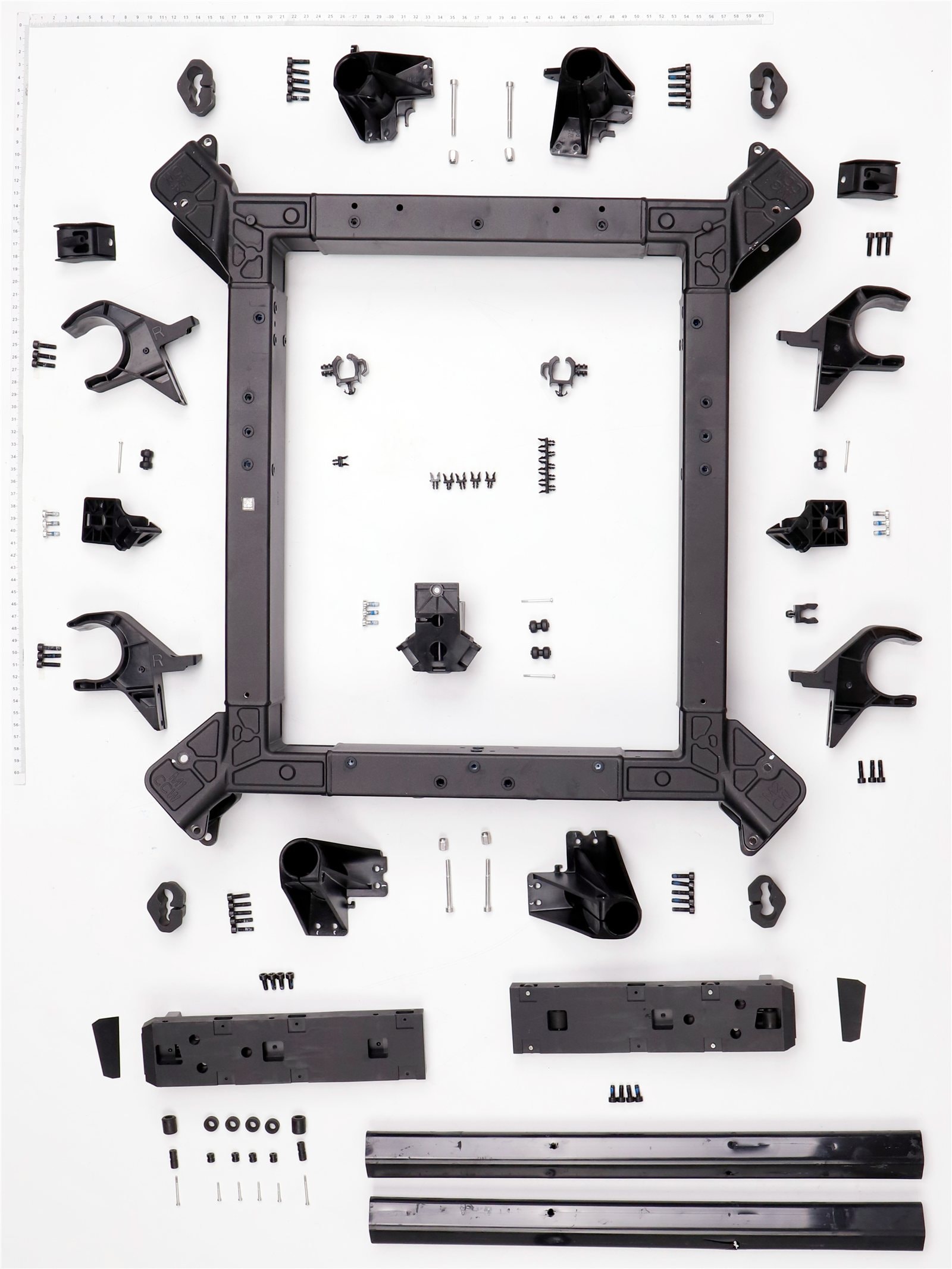

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Landing Gear Fixing Piece (Rear Right) YC.JG.ZS003467 | — | |
| 2 | Screw M40-HC01400140-070042-4203-Y YC.ST.LL000482 | — | |
| 3 | Cable Tube Rubber Stopper YC.JG.MY001051 | — | |
| 4 | Anti-Collision Pad YC.JG.MY001050 | — | |
| 5 | Hose Clip YC.JG.ZS004996 | — | |
| 6 | Screw M40-HC01400140-070042-4203-Y YC.ST.LL000482 | — | |
| 7 | Aircraft Arm Fixing Piece (Right) YC.JG.ZS003413 | — | |
| 8 | Weighing Sensor Bracket Roller YC.JG.ZS003602 | — | |
| 9 | Spray Tank Fixing Piece_Roller Shaft YC.WJ.ZZ002618 | — | |
| 10 | Weight Sensor Bracket (Right) YC.JG.ZS003599 | — | |
| 11 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 | |
| 12 | Aircraft Frame Module BC.AG.SS000864 | — | |
| 13 | Landing Gear Fixing Piece (Front Right) YC.JG.ZS003464 | $69.00 | |
| 14 | Extended Battery Supporting Piece (Right) YC.JG.ZS004978 | — | |
| 15 | Battery Supporting Piece Patch (Right) YC.JG.MQ001386 | — | |
| 16 | Outer Scroll Wheel（Small) YC.JG.MY001402 | — | |
| 17 | Battery Fixing Piece_External Roller YC.XJ.QT000247 | — | |
| 18 | Spray Tank Fixing Piece_Internal Roller YC.SJ.WS002500 | $2.05 | |
| 19 | Spray Tank Fixing Piece_Roller Shaft YC.WJ.ZZ002618 | — | |
| 20 | Inner Scroll Wheel（Small) YC.JG.ZS004993 | — | |
| 21 | Screw T20-PR01450045-035015-5103-N YC.ST.LL000480 | — | |
| 22 | Cable Tube YC.JG.JS000034 | — | |
| 23 | Screw M40-HC01000100-072042-4203-Y YC.ST.LL000483 | — | |
| 24 | Battery Supporting Piece Patch (Left) YC.JG.MQ001385 | — | |
| 25 | Extended Battery Supporting Piece (Left) YC.JG.ZS004979 | — | |
| 26 | Landing Gear Fixing Piece (Front Left) YC.JG.ZS003465 | $69.00 | |
| 27 | Cable Clip YC.JG.ZS003589 | — | |
| 28 | Weighing Sensor Bracket (Front) YC.JG.ZS003601 | — | |
| 29 | Weight Sensor Bracket (Left) YC.JG.ZS003600 | — | |
| 30 | Load Sensor Cable Clip YC.JG.ZS002229 | — | |
| 31 | Aircraft Arm Fixing Piece (Left) YC.JG.ZS003412 | — | |
| 32 | Landing Gear Fixing Piece (Rear Left) YC.JG.ZS003466 | — | |
| 33 | Nut (M40-HN068100-5103) YC.ST.LM000092 | — | |
| 34 | Screw (M40-HC04000140-070040-5103-N) YC.ST.LL000537 | — |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
