T25P Impeller Pump
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

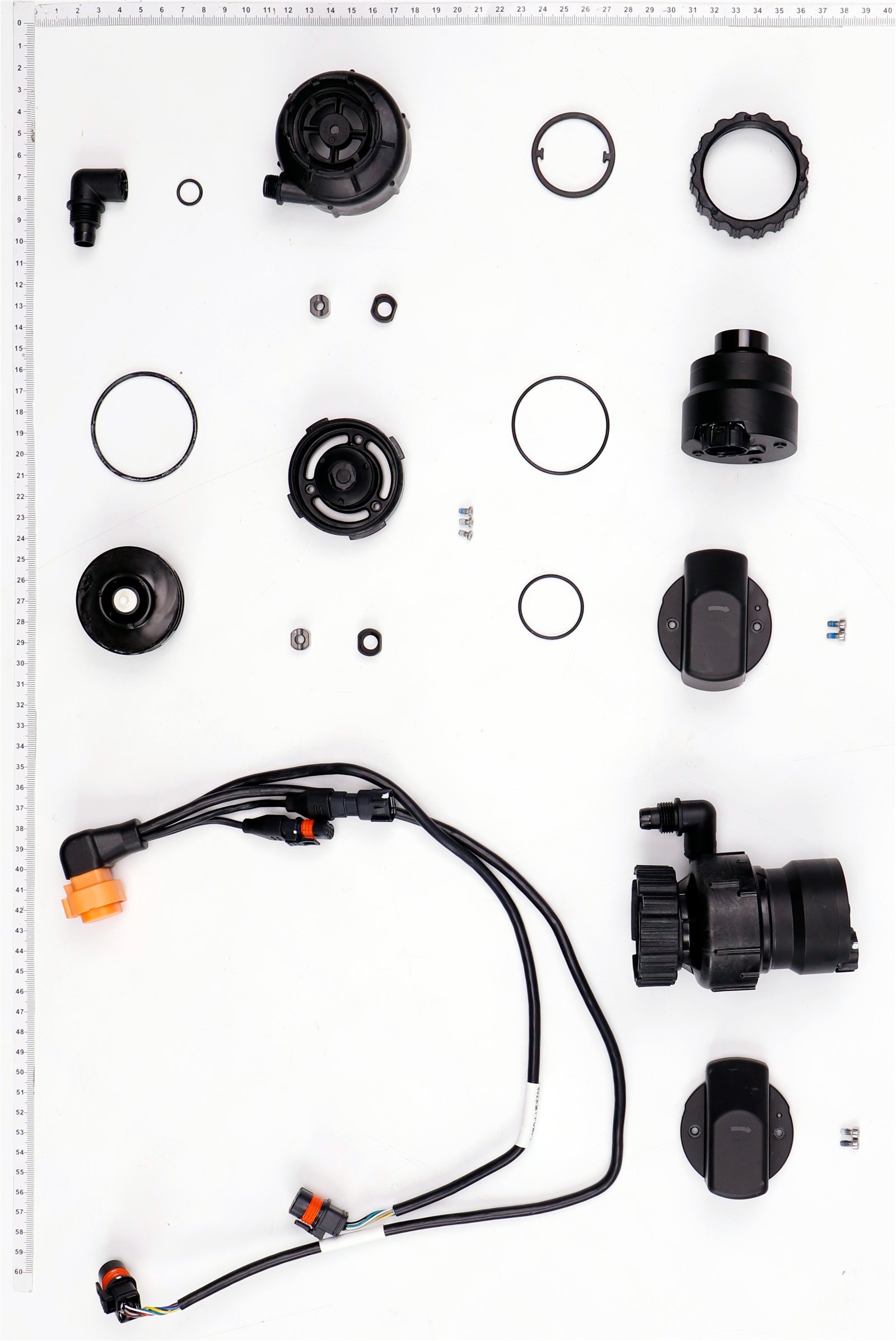

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Pump Shell YC.JG.ZS004649 | — | |
| 2 | Pump_Connector Sealing Ring YC.XJ.QT000350 | — | |
| 3 | Impeller Pump Curving Connector YC.JG.ZS003420 | — | |
| 4 | Ceramic Rubber Pad YC.JG.MY001327 | $2.00 | |
| 5 | Ceramic Gasket YC.JG.FM000157 | — | |
| 6 | Isolation Sleeve YC.JG.ZS004667 | — | |
| 7 | Pump Sealing Ring YC.JG.MY001052 | $11.95 | |
| 8 | Impeller Pump Module BC.AG.SS000710 | — | |
| 9 | Spray Tank Signal Cable YC.XC.XX001209 | — | |
| 10 | Sealing Ring (OD=31.4 mm) YC.JG.MY001315 | $3.15 | |
| 11 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 12 | Impeller Pump Protective Hood YC.JG.ZS002389 | — | |
| 13 | Screw M30-HC00630050-050013-5103-Y YC.ST.LL000454 | — | |
| 14 | Impeller Pump Motor BC.AG.SS000870 | — | |
| 15 | Sealing Ring (OD=46.5 mm) YC.JG.MY001316 | — | |
| 16 | Water Outlet Rotation Cover YC.JG.ZS002233 | $3.65 | |
| 17 | Y-tee Part Sealing Pad YC.JG.MY001053 | $6.00 | |
| Impeller Pump Motor BC.AG.SS000543 | $429.00 | ||
| Impeller Pump Curving Connector YC.JG.ZS006175 | $7.55 | ||
| Curving Connector Sealing Ring YC.JG.MY001830 | $9.00 | ||
| Pump Shell YC.JG.ZS006166 | $22.55 | ||
| Motor Sealing Ring (OD= 46.8 mm) YC.JG.MY001828 | $10.60 | ||
| Screw (M25-HC00500050-050020-5104-N) YC.ST.LL000717 | $0.65 | ||
| Spacing Sleeve YC.JG.ZS006167 | $22.55 | ||
| Impeller Pump Motor BC.AG.SS001033 | $453.00 | ||
| Sprinkler Adapter Cable YC.XC.XX001409 | $66.00 | ||
| Impeller Module BC.AG.SS001032 | $68.00 |
