T100 C12000

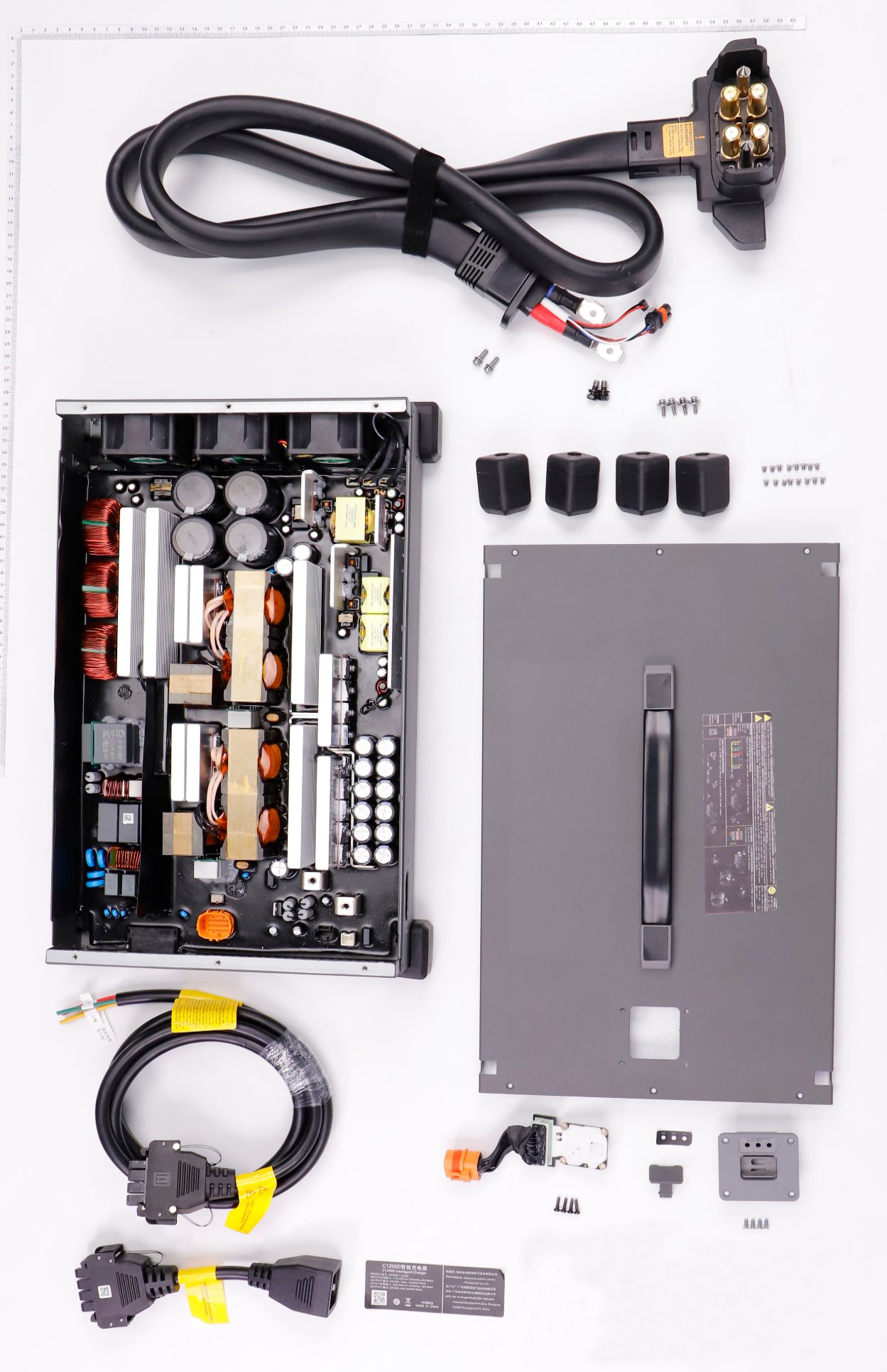

Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Battery Charging Cable(Overseas) YC.XC.DD000873 | — | |
| 2 | Screw (Securing Battery Charging Cable) YC.DZ.BC000149 | — | |
| 3 | Power Module (Excl. Charging Cable) BC.AG.SS001016 | — | |
| 4 | Intelligent Charger Three-Phased Input Cable YC.XC.DD000727 | — | |
| 5 | Intelligent Charger Charging Cable YC.XC.DD000597 | — | |
| 6 | Power Module Management Board Module BC.AG.SS001069 | — | |
| 7 | Charger Nameplate Sticker YC.DZ.BC000141 | — | |
| 8 | Screw (Securing Outer Shell) YC.DZ.BC000153 | — | |
| 9 | Charger Fan Bracket YC.DZ.BC000144 | — | |
| 10 | Screw (Securing Fan Dust Filter) YC.DZ.BC000146 | — | |
| 11 | Charger Fan Dust Filter YC.DZ.BC000145 | — | |
| 12 | Charger Fan YC.DZ.BC000143 | — | |
| 13 | Screw (Securing Fan) YC.DZ.BC000147 | — | |
| 14 | Battery Handle Inner Liner YC.JG.BJ000577 | — | |
| 15 | Battery Handle Upper Cover Sticker YC.SJ.MQ000068 | — | |
| 16 | Battery Handle YC.JG.JS000005 | — | |
| 17 | Battery Handle Upper Cover YC.WJ.ZZ002745 | — | |
| 18 | Screw (Securing Handle) YC.DZ.BC000152 | — | |
| 19 | #N/A #N/A | — | |
| 20 | Charger Instruction Sticker YC.DZ.BC000142 | — | |
| 21 | Screw (Securing Corner Protector) YC.DZ.BC000148 | — | |
| 22 | Battery Station Corner Protector YC.JG.MY000738 | — | |
| 23 | Power Module (Excl. Charging Cable) BC.AG.SS001016 | — | |
| 23.1 | Power Module (Excl. Charging Cable(EMC) BC.AG.SS001168 | — | |
| 24 | Screw (Securing Management Board) YC.DZ.BC000150 | — | |
| 25 | Status LED Pipe YC.JG.MY000787 | — | |
| 26 | Screw (Securing Management Board Bottom Shell) YC.DZ.BC000151 | — | |
| 27 | T50 Power Module Type-C Port Silicone Rubber YC.JG.MY001083 | — | |
| 28 | T50 Power Module Management Board Module YC.JG.ZS003556 | — | |
| 29 | T50 Management Board Base Instruction Sticker (JWY) YC.DZ.GR000577 | — | |
| 30 | Charger Upper Cover Module BC.AG.SS001070 | — | |
| 31 | Screw (Securing Outer Shell) YC.DZ.BC000153 | — | |
| 32 | Battery Station Corner Protector YC.JG.MY000738 | — | |
| 33 | Screw (Securing Corner Protector) YC.DZ.BC000148 | — |
