T100 Lift System Winch
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

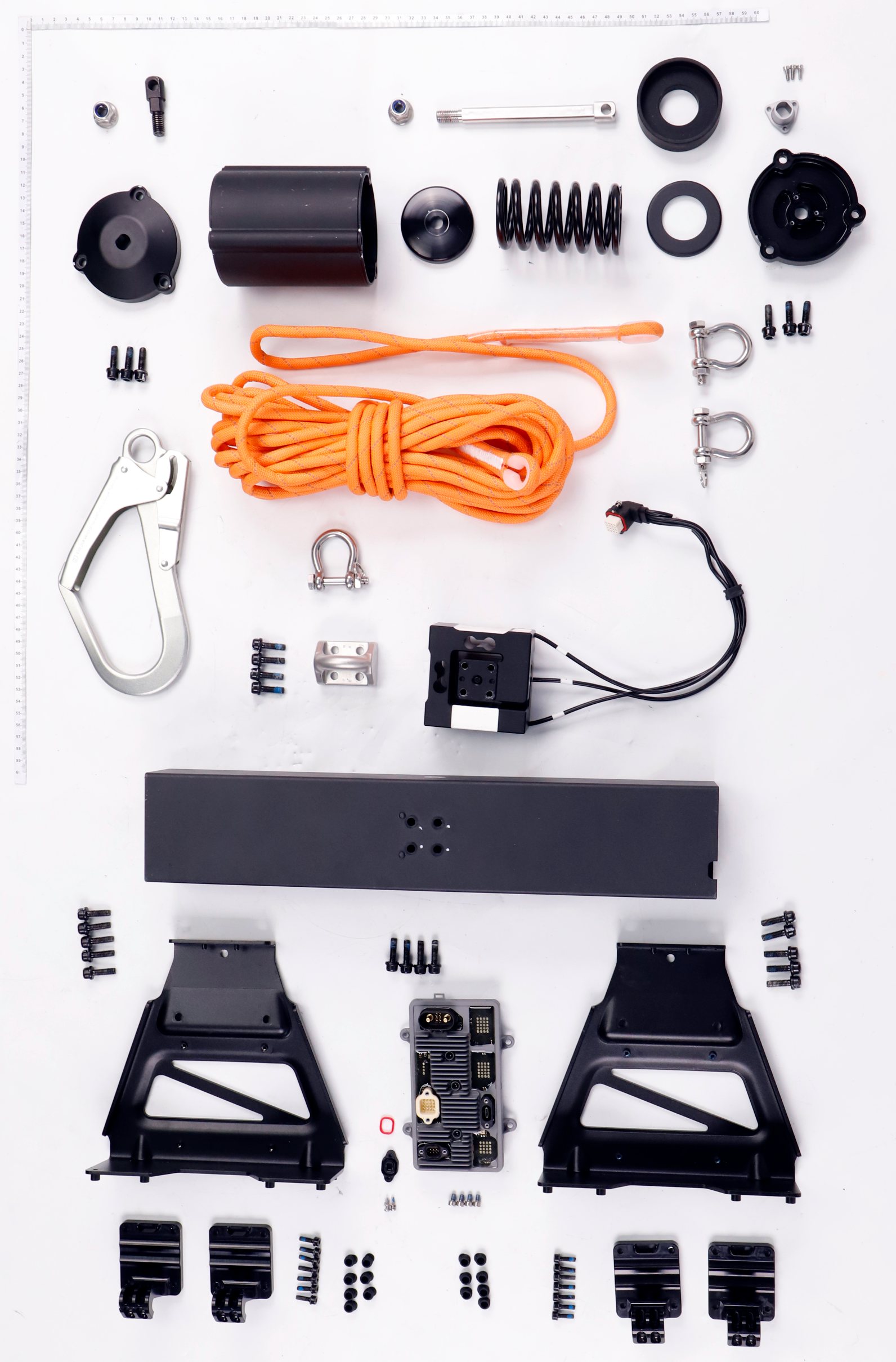

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Lifting Hook YC.ST.AS000061 | $27.00 | |
| 2 | Screw (M60-HC02000180-100080-4203-Y) YC.ST.LL000696 | $1.00 | |
| 3 | Lanyard Buckle YC.JG.FM000229 | $54.00 | |
| 4 | Lift System Crossbeam YC.JG.QX004715 | $143.00 | |
| 5 | Screw (M60-HC02000180-100080-4203-Y) YC.ST.LL000696 | $1.00 | |
| 6 | Screw (M60-HC02000180-100080-4203-Y) YC.ST.LL000696 | $1.00 | |
| 7 | Lift System Bracket YC.JG.BJ003552 | — | |
| 8 | Buckle Hook YC.JG.QX004626 | $31.60 | |
| 9 | Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 | $0.70 | |
| 10 | Landing Gear Hole Plug Rubber YC.JG.MY002073 | $1.10 | |
| 11 | Screw (M40-HC00600060-072072-5103-Y) YC.ST.LL000659 | $4.19 | |
| 12 | Payload Lifting Control Module BC.AG.SS001123 | $620.00 | |
| 13 | Screw (M60-HC02000180-100080-4203-Y) YC.ST.LL000696 | $1.00 | |
| 14 | Three-Axis Force Sensor Module BC.AG.SS001124 | $314.00 | |
| 15 | Damper Hook YC.ST.AS000051 | $14.00 | |
| 16 | Lifting Rope YC.ST.AS000050 | $71.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
