T100 Mist Kit Mist Spray Boom
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

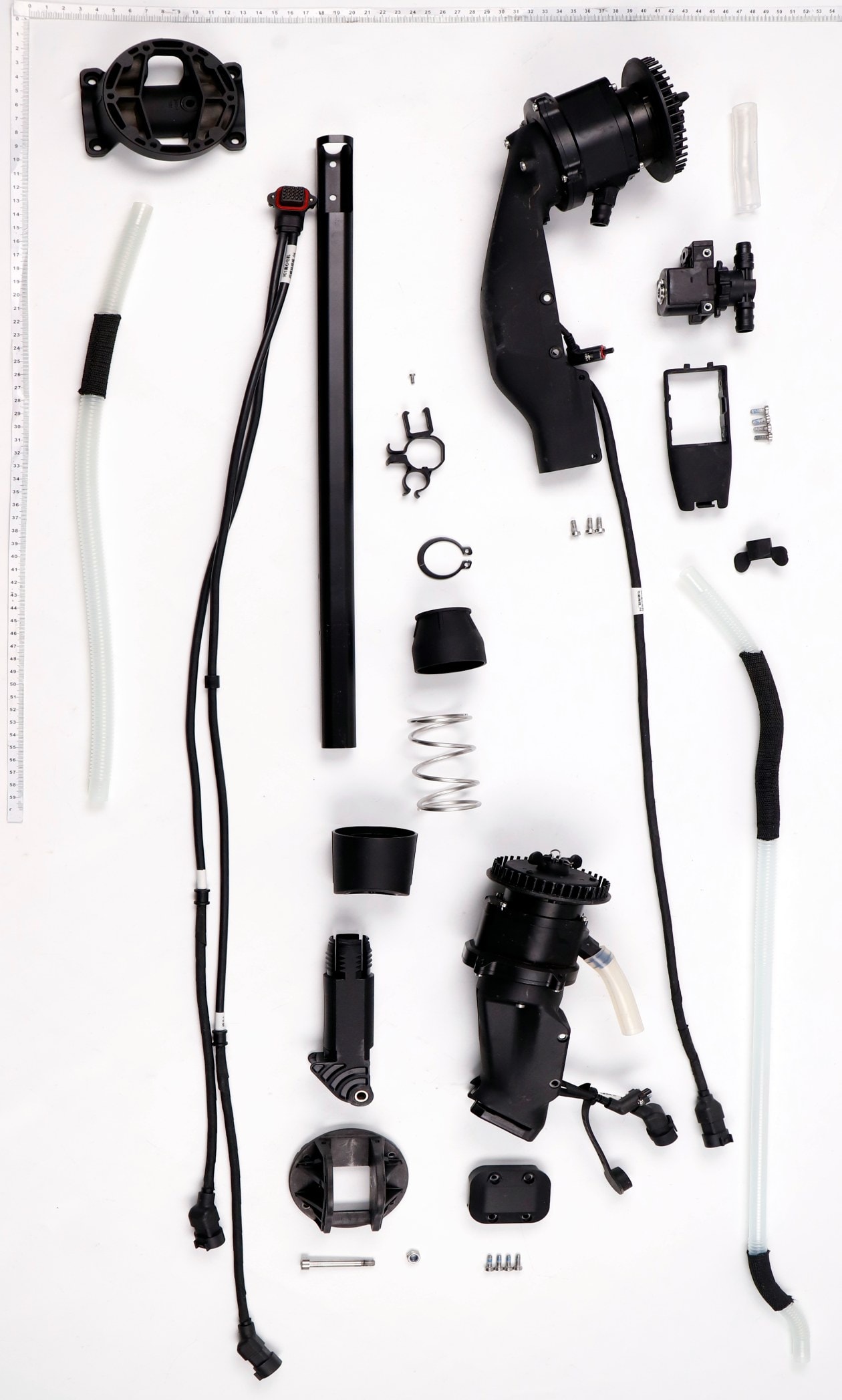

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Mist Sprinkler Support Rod YC.JG.QX004849 | $134.15 | |
| 2 | Mist Spray Lance Connector YC.JG.YZ001151 | $32.95 | |
| 3 | Centrifugal Sprinkler Adapter Cable (Optional) YC.XC.XX001410 | — | |
| 4 | Mist Hose (Optional) YC.JG.JS000078 | $9.63 | |
| 5 | M25-HC060060-45-85 YC.WJ.L01549 | $2.75 | |
| 6 | Hose Clip YC.JG.ZS007186 | $5.33 | |
| 7 | Circlip YC.JG.BJ003348 | $1.00 | |
| 8 | Spring Fixing Piece YC.JG.ZS006592 | $4.85 | |
| 9 | Compression Spring YC.JG.TT000275 | $4.85 | |
| 10 | Spray Lance Slider YC.JG.ZS006593 | $4.85 | |
| 11 | Spray Lance Shaft Sleeve YC.JG.ZS006357 | $18.40 | |
| 12 | Spray Lance Shaft Connector YC.JG.ZS006594 | $28.05 | |
| 13 | Spray Lance Shaft YC.JG.QX004533 | $4.85 | |
| 14 | M60-HX100060-5103_01 YC.WJ.LM000044 | $3.60 | |
| 15 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 | |
| 16 | Mist Spray Lance Fixing Base YC.JG.ZS007187 | $5.33 | |
| 17 | See Mist Kit Internal Spray Boom | — | |
| 18 | Aircraft Arm Hose YC.JG.JS000077 | $18.40 | |
| 19 | Thumb Nut YC.JG.ZS006171 | $2.30 | |
| 20 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 | |
| 21 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 | |
| 22 | Spray Lance Bottom Shell YC.JG.ZS006807 | $28.50 | |
| 23 | Solenoid Valve Module BC.AG.SS001073 | $61.00 | |
| 24 | Sprinkler Soft Hose YC.JG.JS000067 | $1.55 | |
| 25 | See Mist Kit External Spray Boom | — |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
