T100 Flow Meter
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

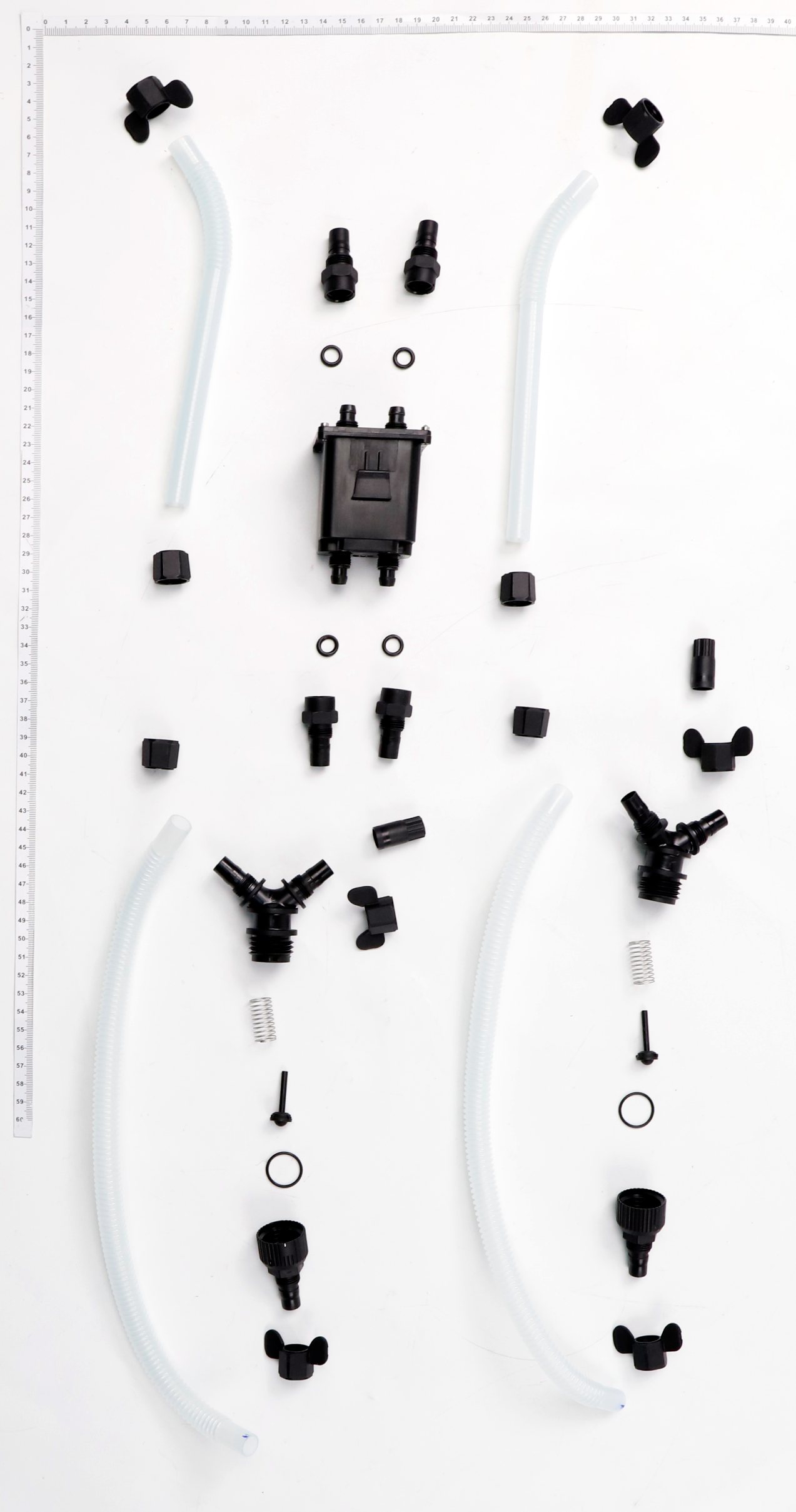

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Thumb Nut YC.JG.ZS006171 | $2.30 | |
| 2 | Flow Meter Adapter YC.JG.ZS006199 | $3.10 | |
| 3 | Flow Meter Adapter Sealing Ring YC.JG.MY001790 | $4.55 | |
| 4 | Flow Meter Module BC.AG.SS001031 | $634.50 | |
| 5 | Hose Nut YC.JG.ZS006165 | $1.55 | |
| 6 | Flow Meter Water Outlet Hose YC.JG.JS000080 | $12.00 | |
| 7 | Thumb Nut YC.JG.ZS006171 | $2.30 | |
| 8 | One-Way Valve YC.JG.ZS006170 | $7.55 | |
| 9 | One-Way Valve Sealing Ring YC.JG.MY001774 | $1.55 | |
| 10 | Valve Core Sealing Ring YC.JG.MY001775 | $9.00 | |
| 11 | One-Way Valve Spring YC.JG.TT000285 | $1.71 | |
| 12 | Hose Y-tee Part YC.JG.ZS006644 | $6.65 | |
| 13 | Single Connector Rubber Stopper YC.JG.ZS006115 | $3.10 | |
| 14 | Flow Meter Water Inlet Hose YC.JG.JS000088 | $10.85 |
