T100 Landing Gear (2)

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

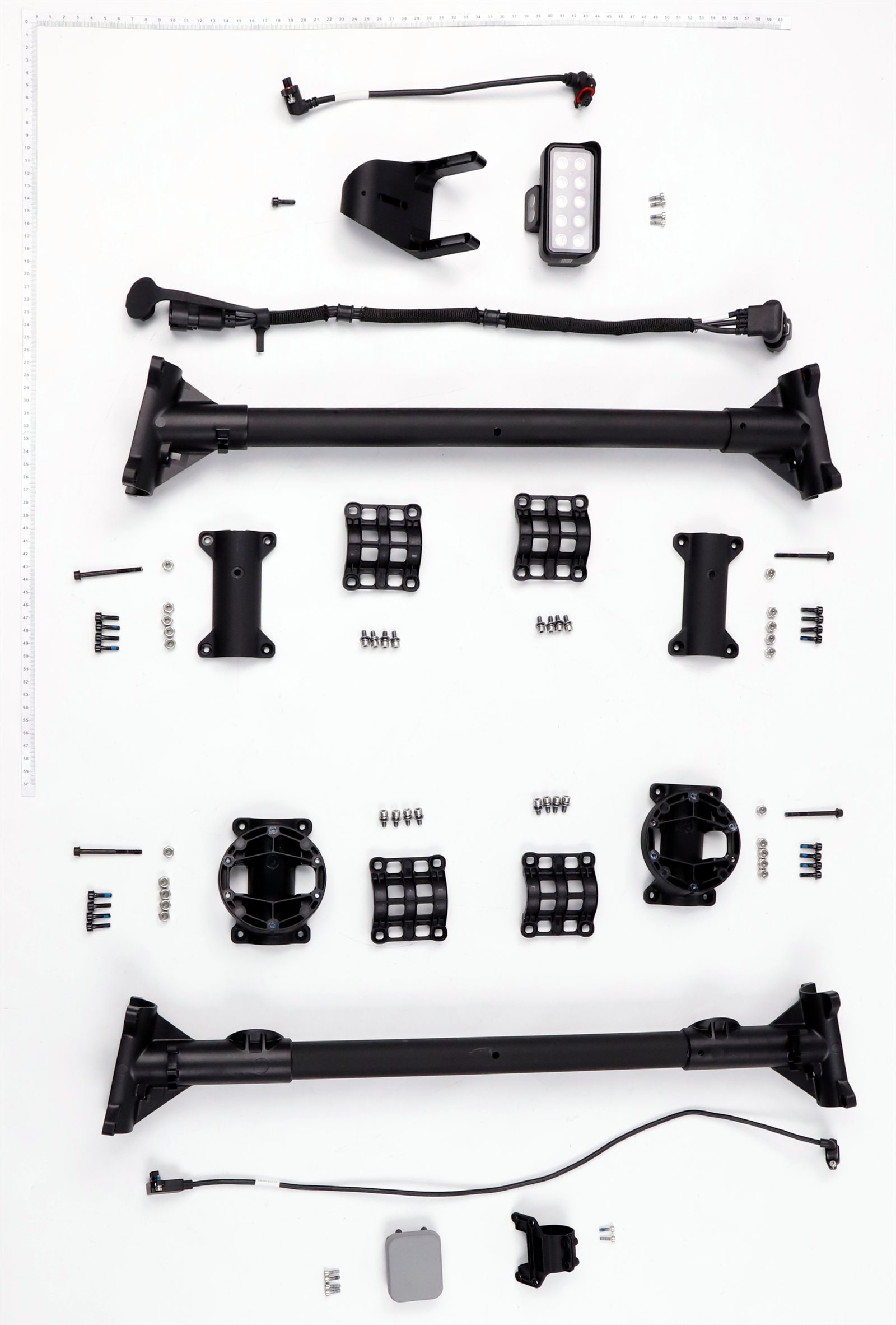

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.

No.	Part	$ Each (inc. GST)
1	Spotlight Signal Cable YC.XC.XX001470	$41.15
2	Spotlight Bracket YC.JG.ZS006719	$12.00
3	Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730	$0.70
4	Payload Adapter Cable YC.XC.DD000815	$79.00
5	Landing Gear Y-tee Part Cover YC.JG.ZS006708	$5.15
6	Screw (M40-HC04800220-088047-5103-Y) YC.ST.LL000731	$1.10
7	M40-HX088065-5103 YC.ST.LM000107	$0.70
8	Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730	$0.70
9	Landing Gear Spray Lance Connector YC.JG.ZS006709	$15.95
10	Screw (M40-HC04800220-088047-5103-Y) YC.ST.LL000731	$1.10
11	M40-HX088065-5103 YC.ST.LM000107	$0.70
12	Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730	$0.70
13	Landing Gear Crossbeam (Rear) YC.JG.ZS006693	$60.00
14	Rear Radar Signal Cable (Short) YC.XC.XX001523	$41.15
15	Rear Radar Module BC.AG.SS001107	$449.35
16	Screw M30-HC100100-55-85 YC.WJ.L00871	$2.05
17	Rear Radar Bracket YC.JG.ZS007274	$9.20
18	Screw M30-HC100100-55-85 YC.WJ.L00871	$2.05
19	Screw (M40-HCW01000070-070040-5104-N) YC.ST.LL000341	$0.90
20	Spray Tank C-Type Mounting Piece YC.JG.ZS006630	$6.05
21	Landing Gear Crossbeam (Front) YC.JG.ZS006692	$47.80
22	Screw M30-HC100100-55-85 YC.WJ.L00871	$2.05
23	Spotlight BC.AG.SS001020	$207.90

Can't spot your part? Search by part number on the search page or call 1300 916 075.
