T100 Spreading Spread Tank
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

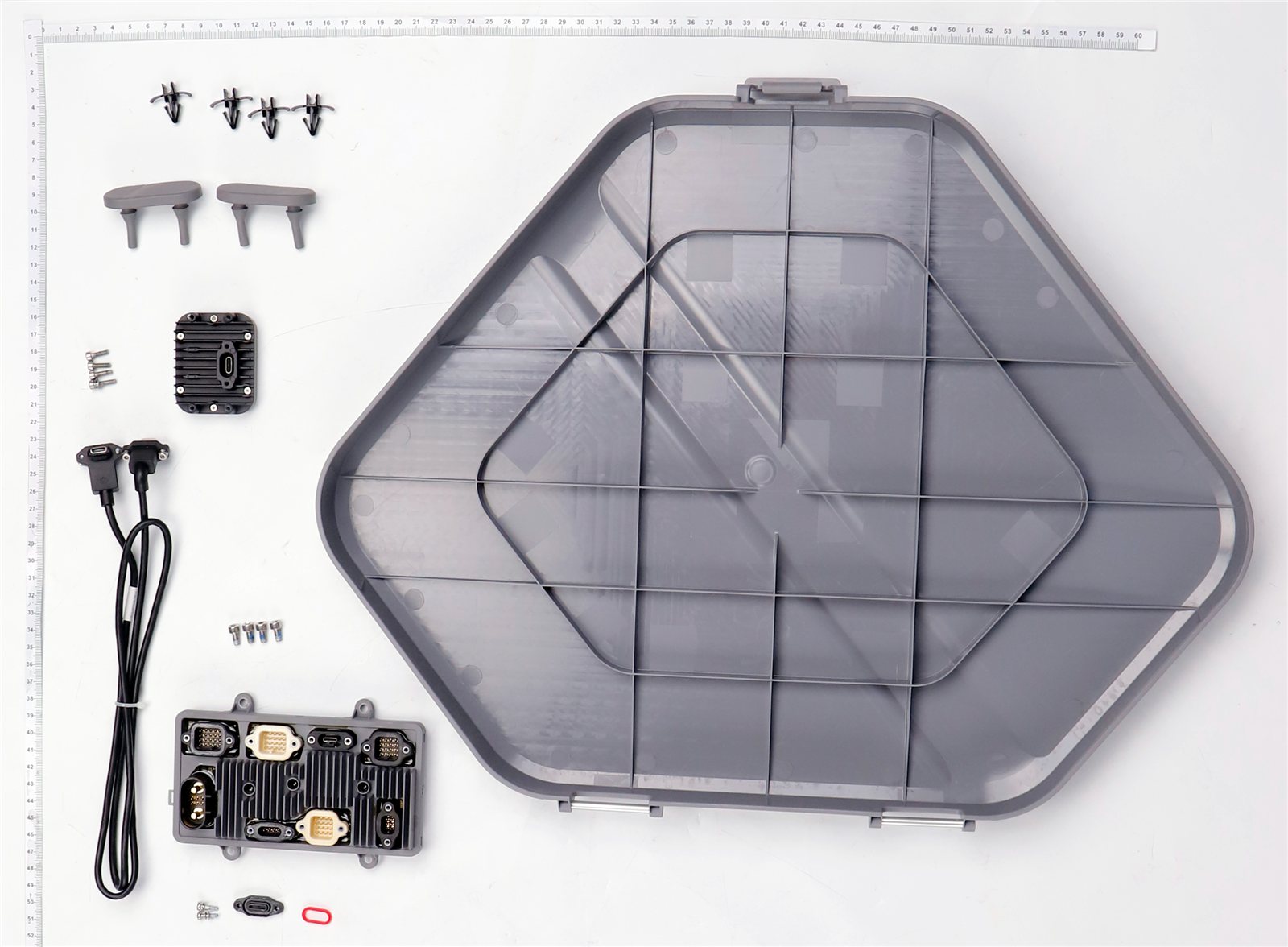

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Spread Tank Radar Cable Clamp YC.JG.ZS007196 | $0.90 | |
| 2 | Spread Tank Propeller Guard Rubber Pad YC.JG.MY002087 | $4.60 | |
| 3 | Spread Tank Cover YC.JG.ZS005975 | $35.00 | |
| 4 | Rear Radar Module BC.AG.SS001107 | $449.35 | |
| 5 | Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | |
| 6 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 7 | Rear Radar Signal Cable (Long) YC.XC.XX001522 | $31.60 | |
| 8 | Payload Control Board BC.AG.SS001068 | $552.70 | |
| 9 | 4-pin Cable Rubber Cover YC.JG.ZS006290 | $2.10 | |
| 10 | Screw (M25-HCW00960040-055020-5103-Y) YC.ST.LL000698 | $0.65 | |
| 11 | 4-pin Cable Sealing Ring YC.JG.MY001810 | $2.00 | |
| 12 | Spread Tank (150L) YC.JG.CS000044 | $387.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
