T100 Lift System Landing Gear (2)
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

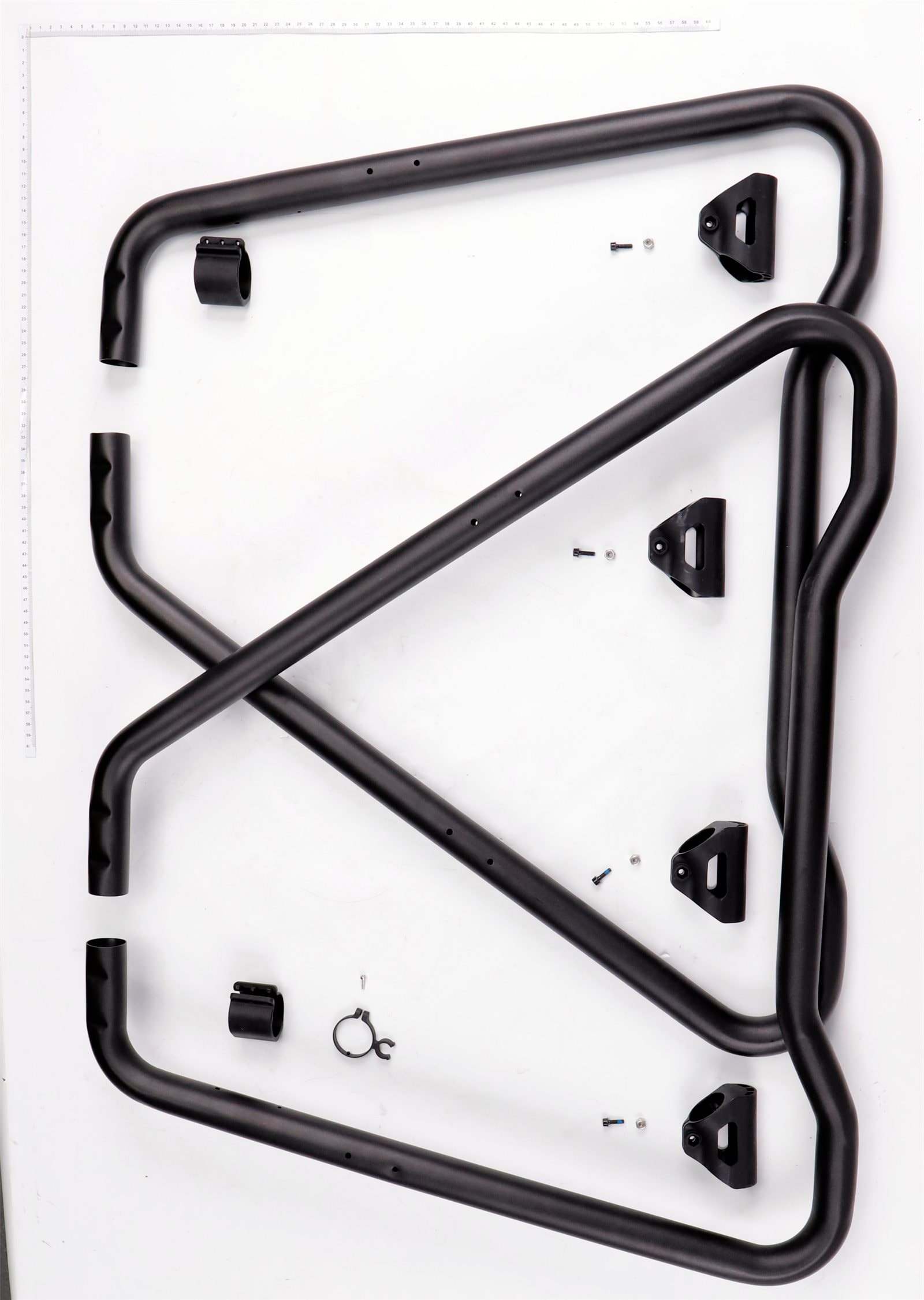

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Landing Gear Aluminum Tube YC.JG.BJ003419 | $107.00 | Get a Quote |
| 2 | Screw T30-HC01000100-057030-5103-N YC.ST.LL000543 | $0.65 | |
| 3 | Landing Gear Payload Cable Clamp B YC.JG.ZS006801 | $1.10 | |
| 4 | Anti-collision Soft Rubber YC.JG.MY002074 | $9.20 | |
| 5 | Bottom Rubber Pad YC.JG.ZS006655 | $5.15 | |
| 6 | M40-HX088065-5103 YC.ST.LM000107 | $0.70 | |
| 7 | Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 | $0.70 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
