T100 Lift System Landing Gear (1)
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

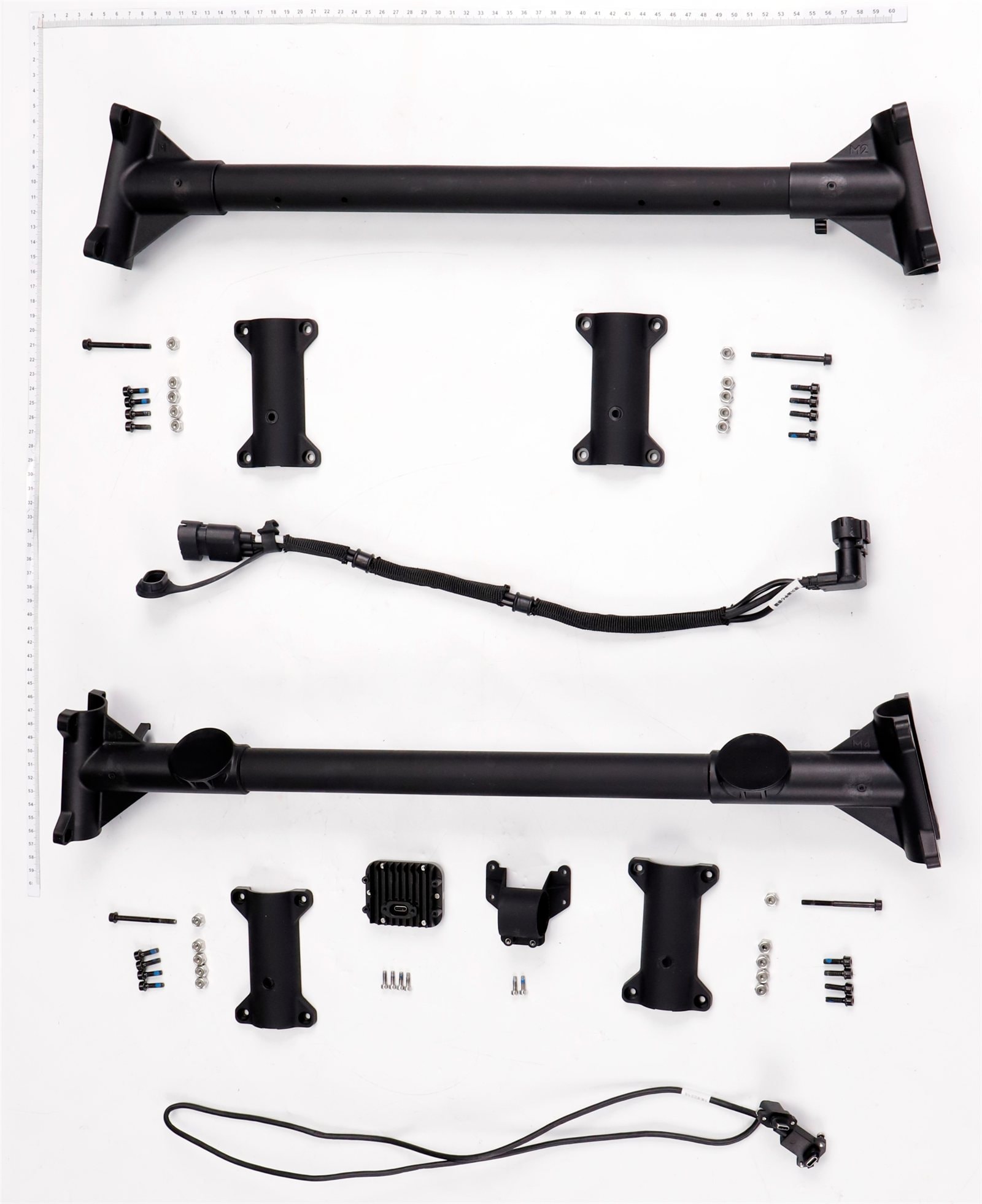

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Landing Gear Crossbeam (Front) YC.JG.ZS006692 | $47.80 | |
| 2 | M40-HX088065-5103 YC.ST.LM000107 | $0.70 | |
| 3 | Screw (M40-HC04800220-088047-5103-Y) YC.ST.LL000731 | $1.10 | |
| 4 | Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 | $0.70 | |
| 5 | Landing Gear Y-tee Part Cover YC.JG.ZS006708 | $5.15 | |
| 6 | Payload Adapter Cable YC.XC.DD000815 | $79.00 | |
| 7 | Landing Gear Crossbeam (Rear) YC.JG.ZS006693 | $60.00 | |
| 8 | Rear Radar Module BC.AG.SS001107 | $449.35 | |
| 9 | Screw M30-HC100100-55-85) YC.WJ.L00871 | $2.05 | |
| 10 | Rear Radar Signal Cable (Long) YC.XC.XX001522 | $31.60 | |
| 11 | Screw M30-HC100100-55-85) YC.WJ.L00871 | $2.05 | |
| 12 | Rear Radar Bracket YC.JG.ZS007274 | $9.20 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
