T100 Spray Lance

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

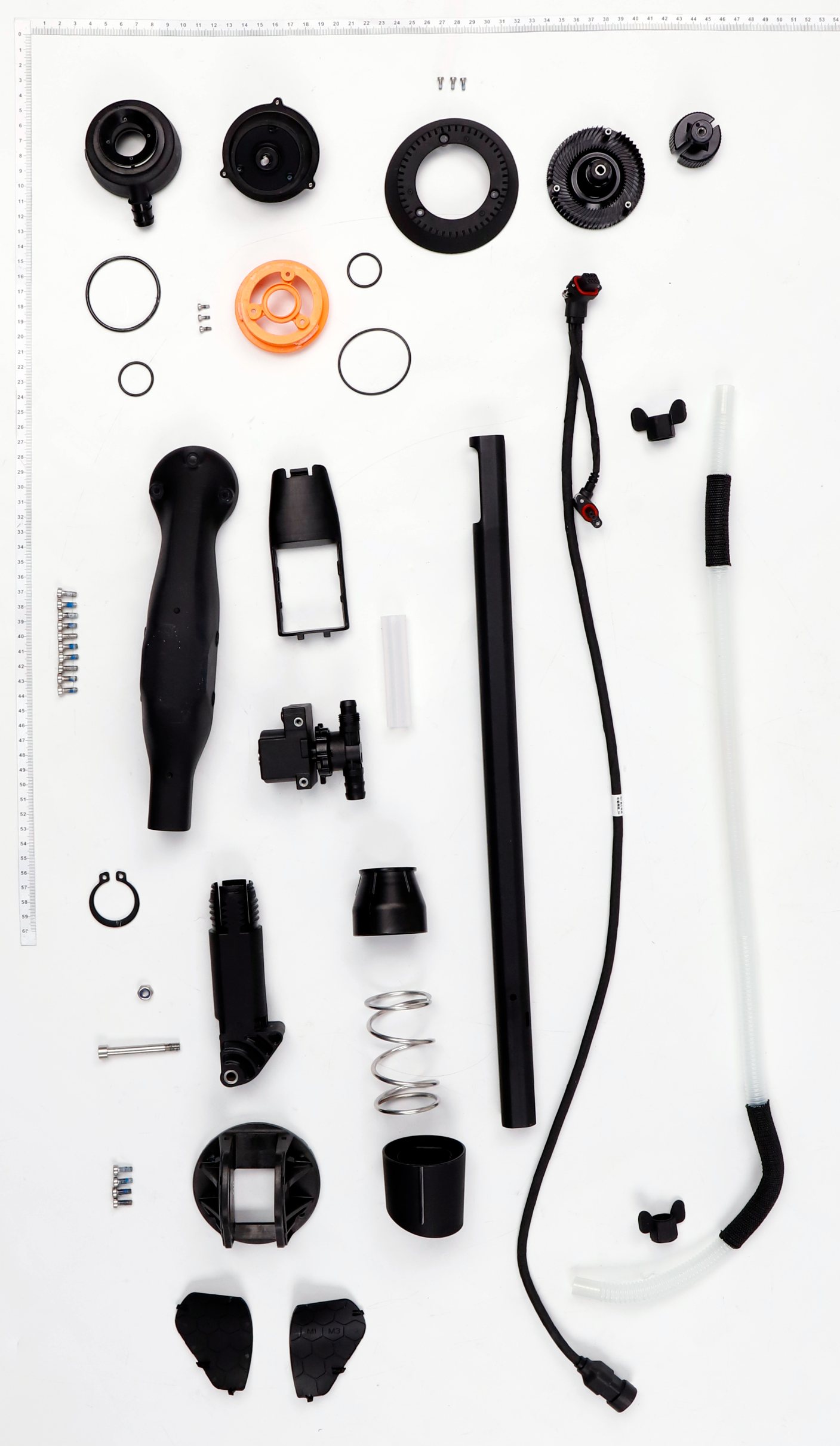

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.

No.	Part	$ Each (inc. GST)
1	Centrifugal Motor BC.AG.SS001028	$453.00
2	Sprinkler Funnel YC.JG.ZS006216	$43.00
3	M25-HC060060-45-85 YC.WJ.L01549	$2.75
4	Pump Sealing Ring YC.JG.MY001052	$11.95
5	Sprinkler Inner Sealing Ring (OD=23.6 mm) YC.JG.MY001829	$4.55
6	Sprinkler Funnel Bracket YC.JG.ZS006215	$28.60
7	Spray Lance Bottom Shell YC.JG.ZS006807	$28.50
8	Spray Lance Outer Shell YC.JG.ZS006356	$29.95
9	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232	$2.05
10	Sprinkler Soft Hose YC.JG.JS000067	$1.55
11	Solenoid Valve Module BC.AG.SS001073	$61.00
12	Spring Fixing Piece YC.JG.ZS006592	$4.85
13	Circlip YC.JG.BJ003348	$1.00
14	Spray Lance Shaft Sleeve YC.JG.ZS006357	$18.40
15	M60-HX100060-5103_01 YC.WJ.LM000044	$3.60
16	Spray Lance Shaft YC.JG.QX004533	$4.85
17	Compression Spring YC.JG.TT000275	$4.85
18	Spray Lance Shaft Connector YC.JG.ZS006594	$28.05
19	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232	$2.05
20	Spray Lance Slider YC.JG.ZS006593	$4.85
21	Spray Lance Shaft Connector Shell (M2 & M4) YC.JG.ZS006808	$6.65
22	Spray Lance Shaft Connector Shell (M1 & M3) YC.JG.ZS006809	$6.65
23	Thumb Nut YC.JG.ZS006171	$2.30
24	Aircraft Arm Hose YC.JG.JS000077	$18.40
25	Spray Lance Support Rod YC.JG.QX004534	$30.60
26	Thumb Nut YC.JG.ZS006171	$2.30
27	Motor Sealing Ring (OD= 46.8 mm) YC.JG.MY001828	$10.60
28	Centrifugal Spray Lance Cable YC.XC.XX001460	$45.30
29	Sprinkler Inner Sealing Ring (OD=23.6 mm) YC.JG.MY001829	$4.55
30	Centrifugal Sprinkler Lower Disk YC.JG.ZS006219	$34.60
31	Sprinkler Thumb Nut YC.JG.ZS006218	$3.10
32	Centrifugal Sprinkler Upper Disk YC.JG.ZS007737	$7.55
33	M25-HC060060-45-85 YC.WJ.L01549	$2.75
	R-Type Pin YC.JG.TT000203	$0.90
	Centrifugal Sprinkler Nut YC.JG.ZS004510	$1.76
	Screw M25-HC00400040-050020-0003-N YC.WJ.LL000138	$3.60
	Centrifugal Sprinkler Adapter Cable YC.XC.XX001394	$31.68

Can't spot your part? Search by part number on the search page or call 1300 916 075.
