T100 Mist Kit External Spray Boom
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

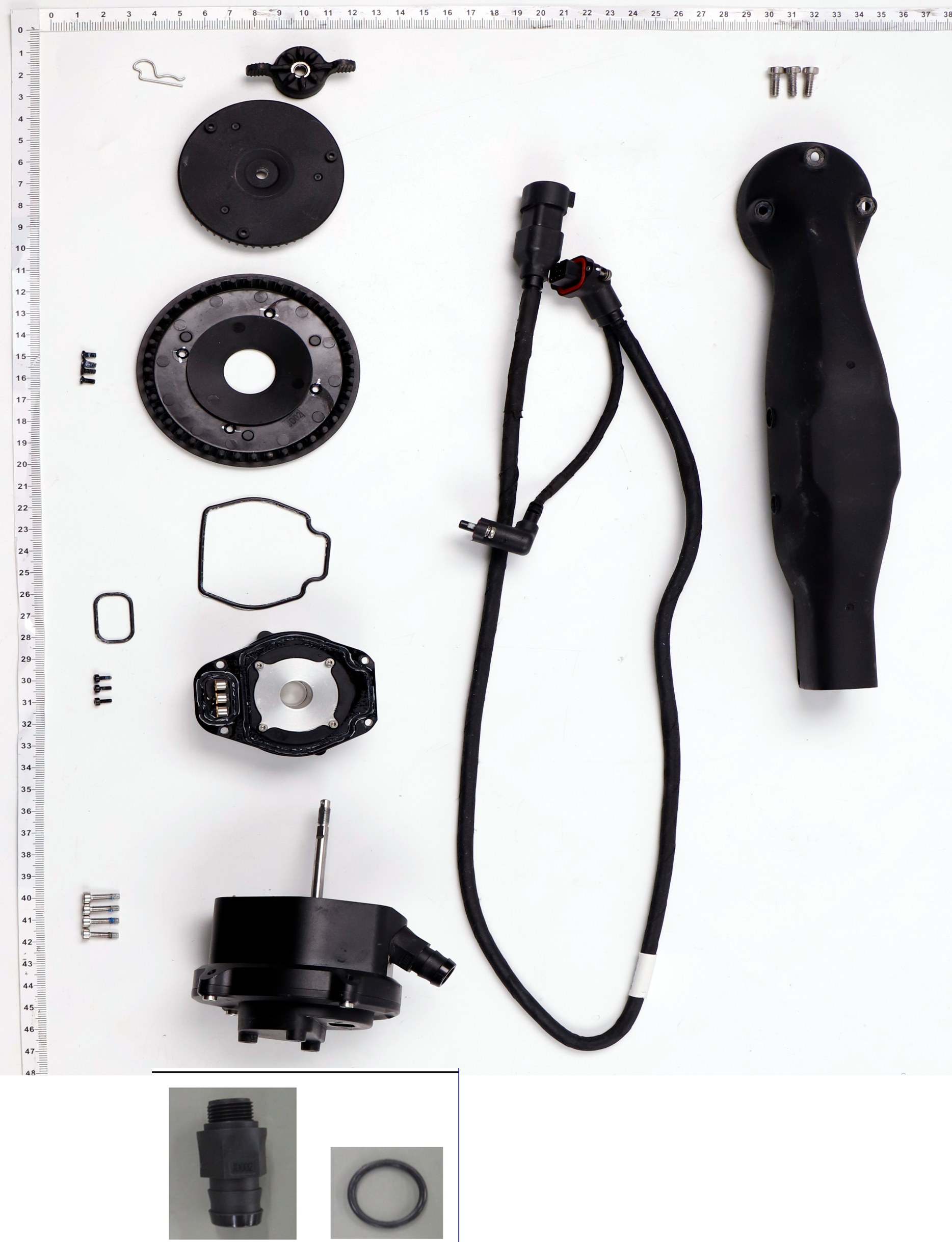

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Centrifugal Sprinkler Nut YC.JG.ZS004510 | $1.76 | |
| 2 | R-Type Pin YC.JG.TT000203 | $0.90 | |
| 3 | Mist Sprinkler Lower Disk YC.JG.ZS006907 | $23.65 | |
| 4 | Screw (M25-HF00550038-040016-3126-Y) YC.ST.LL000381 | $0.72 | |
| 5 | Mist Sprinkler Upper Disk YC.JG.ZS006906 | $4.07 | |
| 6 | Sealing Ring L YC.JG.MY002093 | $4.40 | |
| 7 | Sealing Ring S YC.JG.MY002094 | $1.49 | |
| 8 | M20-HC00500050-040020-3123-Y YC.ST.LL000159 | $0.72 | |
| 9 | 4810 Mist Sprinkler Lower Motor BC.AG.SS001175 | $263.89 | |
| 10 | 4212 Mist Sprinkler Upper Motor BC.AG.SS001174 | $576.80 | |
| 11 | Screw M30-HC01200120-055030-5104-Y YC.ST.LL000363 | $0.72 | |
| 12 | Mist Sprinkler Funnel YC.JG.ZS006905 | $23.65 | |
| 13 | Inlet Sealing Ring YC.JG.MY002043 | $2.53 | |
| 14 | Spray Lance Outer Shell YC.JG.ZS006356 | $29.95 | |
| 15 | Centrifugal Spray Lance Cable YC.XC.XX001460 | $45.30 | |
| 16 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 | $2.05 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
