T100 Middle Rear Frame (1)
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

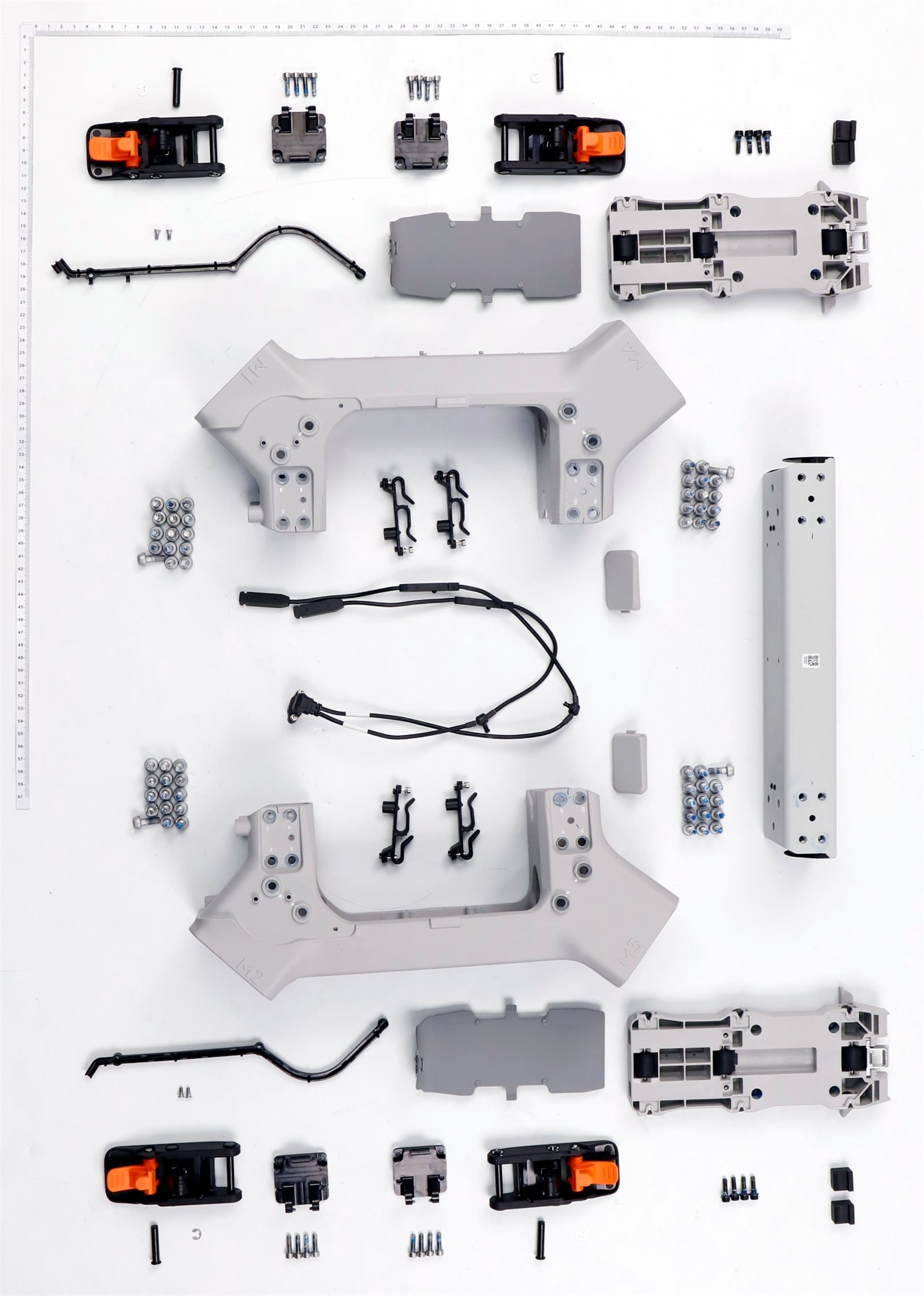

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | |
| 2 | Buckle Support Base YC.JG.QX004627 | $30.60 | |
| 3 | Pin Shaft (29.7 mm) YC.JG.QX004628 | $6.65 | |
| 4 | E-Type Circlip (OD=9 mm) YC.JG.BJ003137 | $1.35 | |
| 5 | Middle Frame Buckle Module BC.AG.SS001094 | $112.00 | |
| 6 | Screw M30-HC00700054-058012-4203-Y YC.ST.LL000542 | $0.65 | |
| 7 | SDR Cable Clamp B0 YC.JG.ZS006716 | $6.65 | |
| 8 | Airframe Cable Cover YC.JG.ZS006685 | $6.65 | |
| 9 | Middle Frame Aluminum Tube (Right) BC.AG.SS001105 | $496.55 | |
| 10 | Airframe Cable Clamp YC.JG.ZS006713 | $6.65 | |
| 11 | In-Position Detector Cable YC.XC.XX001488 | $77.00 | |
| 12 | Middle Frame Aluminum Tube (Left) BC.AG.SS001104 | $496.55 | |
| 13 | SDR Cable Clamp B1 YC.JG.ZS006717 | $6.65 | |
| 14 | Rear Frame Aluminum Tube BC.AG.SS001106 | $129.00 | |
| 15 | Airframe Screw Cover YC.JG.ZS007292 | $1.35 | |
| 16 | Screw (M60-HT01530110-113060-5103-Y) YC.ST.LL000720 | $1.35 | |
| 17 | Battery Slider Module BC.AG.SS001095 | $77.00 | |
| 18 | Battery Bracket Rubber Pad YC.JG.MY001504 | — | |
| 19 | Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 | $0.70 |
