T100 Landing Gear (1)
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

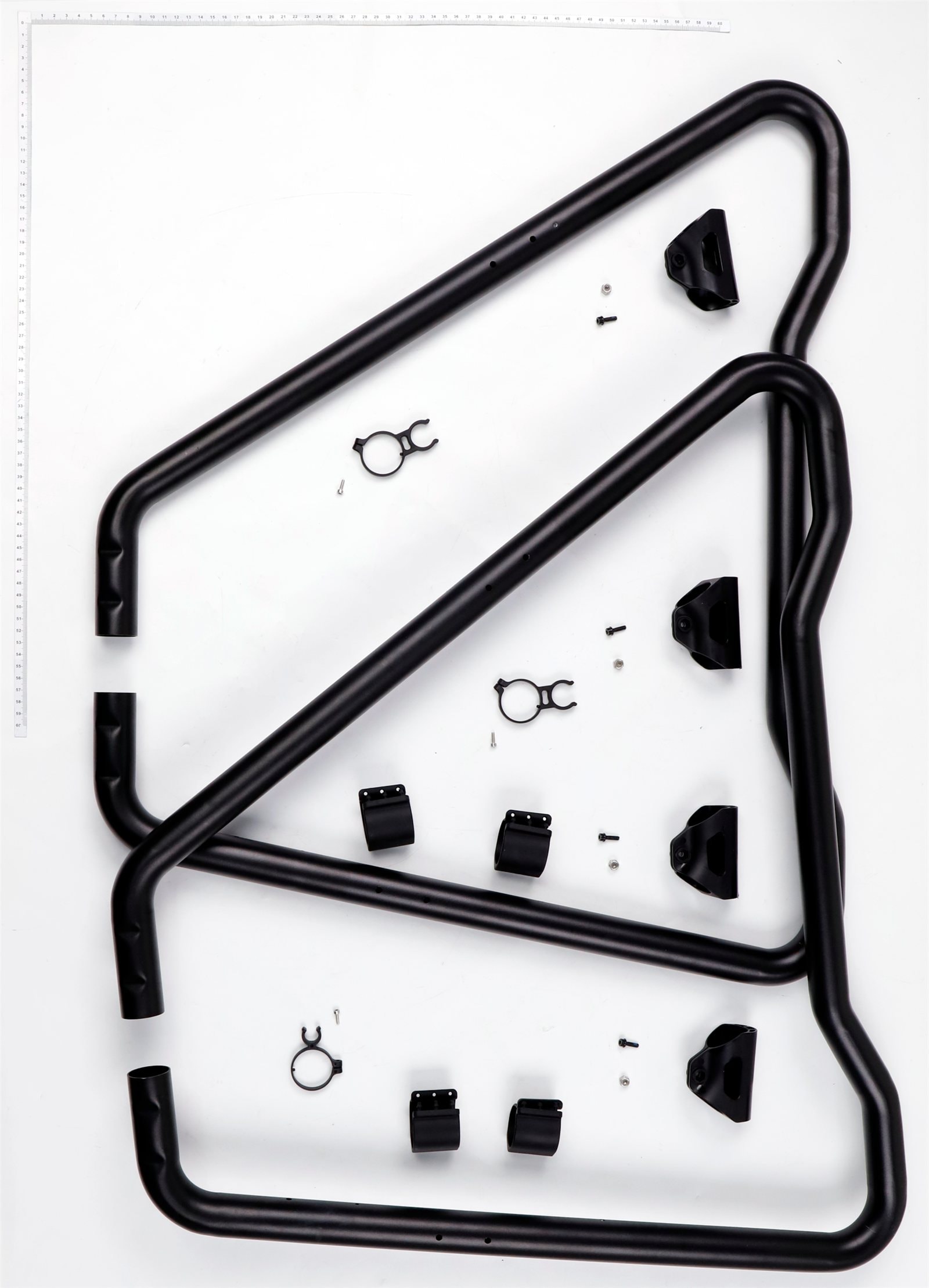

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Landing Gear Aluminum Tube YC.JG.BJ004111 | $94.00 | |
| 2 | Landing Gear Hose Clamp YC.JG.ZS006786 | $6.65 | |
| 3 | Screw T30-HC01000100-057030-5103-N YC.ST.LL000543 | $0.65 | |
| 4 | Anti-collision Soft Rubber YC.JG.MY002074 | $9.20 | |
| 5 | Landing Gear Payload Cable Clamp B YC.JG.ZS006801 | $1.10 | |
| 6 | Landing Gear Hose Clamp YC.JG.ZS006786 | $6.65 | |
| 7 | Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730 | $0.70 | |
| 8 | Bottom Rubber Pad YC.JG.ZS006655 | $5.15 | |
| 9 | M40-HX088065-5103 YC.ST.LM000107 | $0.70 | |
| Screw M30-HC1880-55-85 YC.WJ.L00873 | $3.05 | ||
| Screw M30-HC100100-55-85 YC.WJ.L00871 | $2.05 | ||
| Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 | $2.05 | ||
| Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 | $2.05 | ||
| Screw (M40-HC04000140-070040-5103-Y) YC.ST.LL000607 | $1.00 | ||
| Spotlight Signal Cable (Long) YC.XC.XX001393 | $36.00 | ||
| Spotlight BC.AG.SS001020 | $207.90 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
