T100 Large Aircraft Arm
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

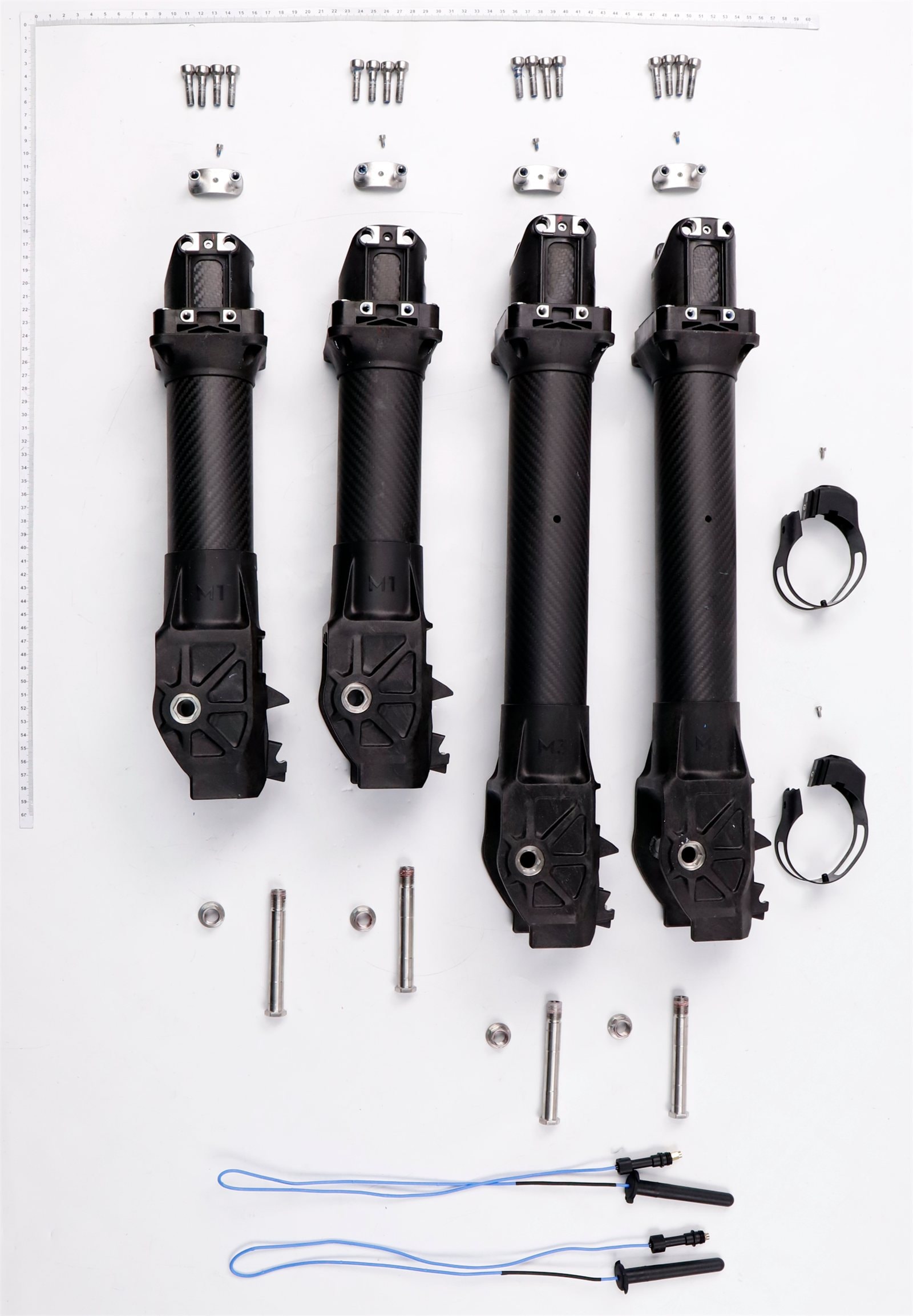

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Large Aircraft Arm (Front) BC.AG.SS001097 | $199.75 | |
| 2 | Aircraft Arm Fixing Nut YC.JG.QX004654 | $6.65 | |
| 3 | Aircraft Arm Fixing Screw Bolt YC.JG.QX004581 | $19.95 | |
| 4 | SDR Antenna (Rear) YC.DZ.AA000573 | $41.15 | |
| 5 | SDR Bracket YC.JG.ZS006676 | $12.00 | |
| 6 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 7 | Large Aircraft Arm (Rear) BC.AG.SS001098 | $199.75 | |
| 8 | Aircraft Arm Insert YC.JG.FM000215 | $19.95 | |
| 9 | Screw M30-HC060060-55-85 YC.WJ.L00870 | $2.05 | |
| 10 | Screw (M60-HC02170160-110078-5103-Y) YC.ST.LL000721 | $1.35 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
