T100 Front Frame (1)

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

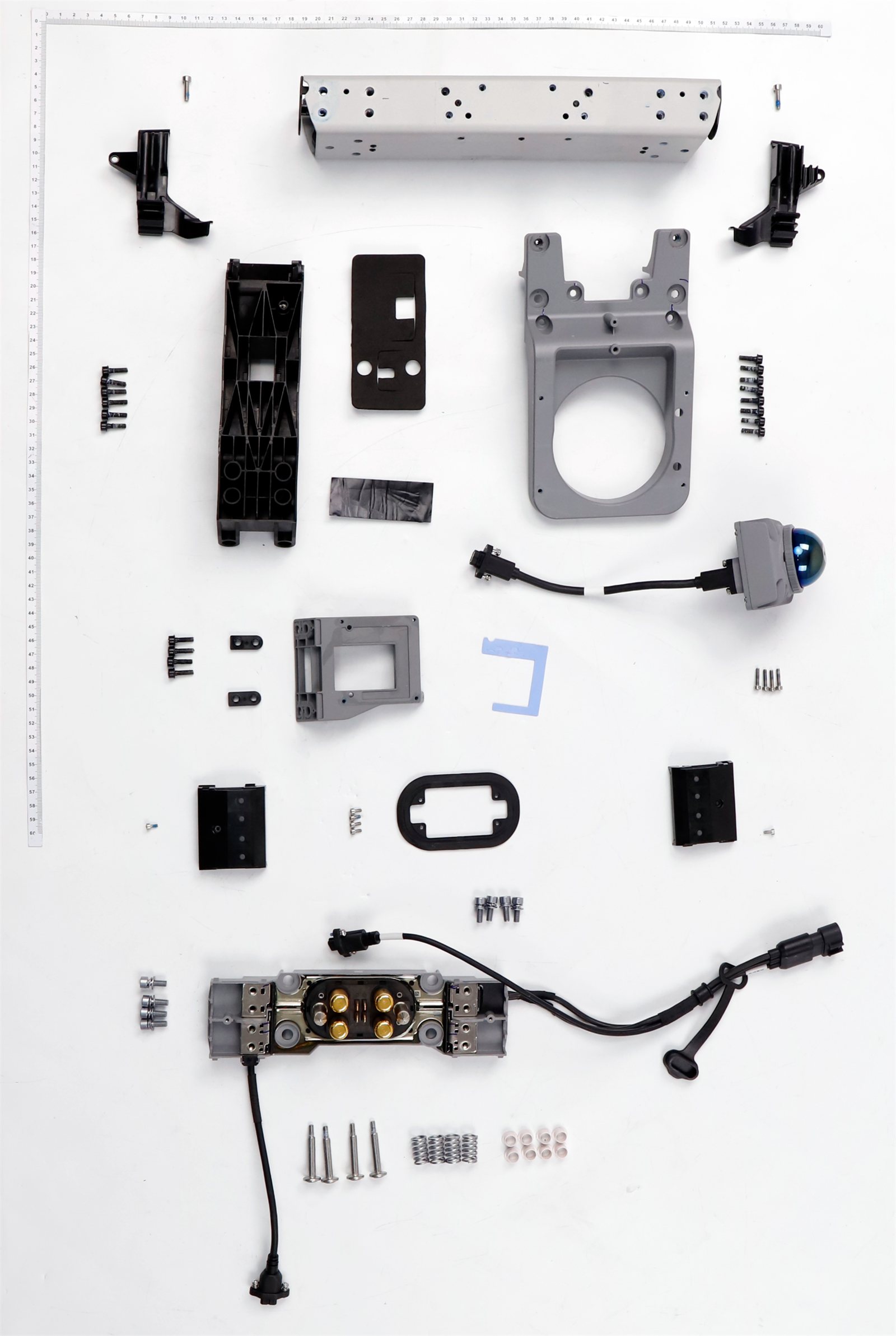

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.

No.	Part	$ Each (inc. GST)
1	Front Frame Aluminum Tube BC.AG.SS001103	$188.75
2	Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013	$2.05
3	Power Cable Clamp B0 YC.JG.ZS006714	$9.35
4	FPV Sealing Foam YC.JG.MQ003801	$2.80
5	FPV Bracket YC.JG.ZS006589	$58.00
6	Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730	$0.70
7	Wear-Resistant Foam (77×30) YC.JG.MQ003860	$2.80
8	Laser Radar Insulation Spacer YC.JG.ZS006590	$1.35
9	Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730	$0.70
10	Laser Radar Bracket YC.JG.YZ001068	$50.00
11	Screw (M25-HC00580058-050025-5103-Y) YC.ST.LL000726	$0.65
12	Power Distribution Board Protective Cover YC.JG.ZS006649	$13.30
13	Screw (M25-HC00580058-050025-5103-Y) YC.ST.LL000726	$0.65
14	Power Distribution Board Module BC.AG.SS001090	$432.40
15	Screw (M50-HC01300107-087050-5103-N) YC.ST.LL000699	$2.80
16	Screw (M40-HC03800090-135020-5103-Y) YC.ST.LL000697	$1.35
17	Power Distribution Module Spring YC.JG.TT000282	$1.35
18	Power Distribution Module Spring Pad YC.JG.ZS006775	$1.35
19	Screw (M50-HC01300107-087050-5103-N) YC.ST.LL000699	$2.80
20	Power Distribution Board Dustproof Cover YC.JG.ZS004560	$15.05
21	Thermal Conductive Pad (49.6×35.6 mm) YC.JG.MQ003697	$1.35
22	Screw (M20-PC01200100-040010-0323-Y) YC.ST.LL000551	$0.65
23	Laser Radar Signal Cable YC.XC.XX001498	$30.60
24	Laser Radar Module (Overseas) BC.AG.SS001166	$1,420.30
25	Screw (M40-HC01400115-085047-4203-Y) YC.ST.LL000730	$0.70
26	Front Radar Bracket YC.JG.YZ001069	$58.00
27	Power Cable Clamp B1 YC.JG.ZS006715	$6.65
	SDR Antenna (Front) YC.DZ.AA000462	$46.55
	RTK Antenna Module BC.AG.SS001034	$176.00
	Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667	$0.65
	FPV Signal Cable YC.XC.XX001419	$63.00
	Front Radar Signal Cable YC.XC.XX001467	$46.55
	Screw M50-HC01300112-087052-4203-Y YC.ST.LL000485	$1.85
