T100 Front Frame (2)

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

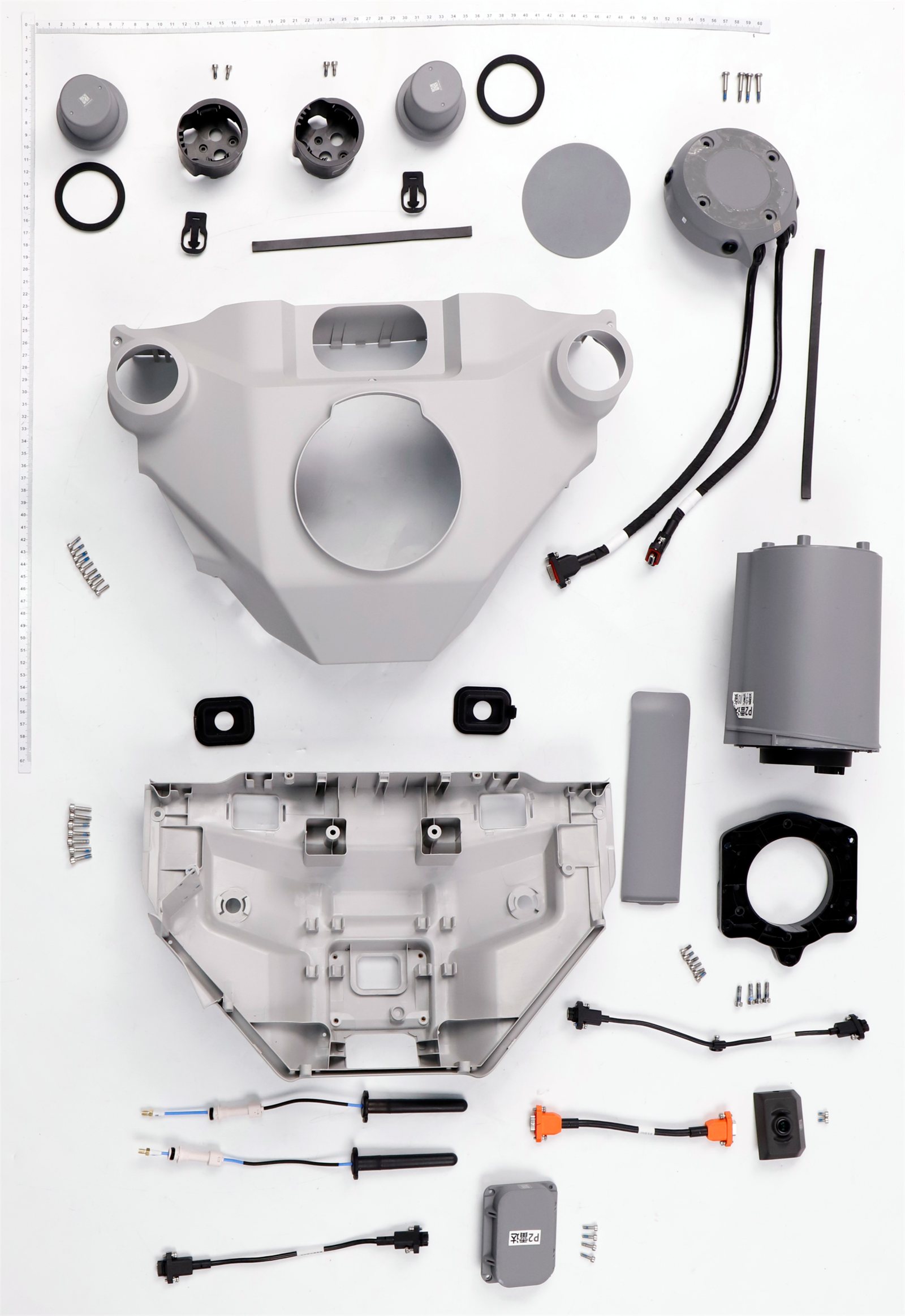

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.

No.	Part	$ Each (inc. GST)
1	Screw M30-HC080080-55-85 YC.WJ.L00868	$3.05
2	RTK Bracket YC.JG.ZS006627	$6.65
3	RTK Antenna Module BC.AG.SS001034	$176.00
516	RTK Lower Cover YC.JG.ZS006626	$8.30
520	RTK Sealing Ring YC.JG.MY001919	$3.41
4	RTK Rubber Ring YC.JG.MY001898	$6.65
6	Front Radar Sealing Foam YC.JG.MQ003696	$6.65
7	Front Top Shell YC.JG.ZS006459	$77.00
8	Screw M30-HC100100-55-85 YC.WJ.L00871	$2.05
9	Cable Rubber Stopper YC.JG.MY001896	$6.65
10	Front Shell Bottom Cover YC.JG.ZS006460	$83.00
11	Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013	$2.05
12	SDR Antenna (Front) YC.DZ.AA000462	$46.55
13	Downward Radar Signal Cable YC.XC.XX001427	$50.00
14	Screw M30-HC100100-55-85 YC.WJ.L00871	$2.05
15	Downward Radar Module BC.AG.SS001087	$368.20
16	FPV Signal Cable YC.XC.XX001419	$63.00
17	Screw M30-HC060060-55-85 YC.WJ.L00870	$2.05
18	FPV Module BC.AG.SS001021	—
19	Front Radar Signal Cable YC.XC.XX001467	$46.55
20	Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013	$2.05
21	Screw M30-HC080080-55-85 YC.WJ.L00868	$3.05
22	Front Radar Base Bracket YC.JG.ZS006690	$25.25
23	Quad Vision Sensor Cable Decorative Cover YC.JG.ZS006691	$12.00
24	Front Radar Module (Overseas) BC.AG.SS001167	$1,704.50
25	Radar Protective Foam YC.JG.MQ003829	$1.35
26	Quad-Fisheye Vision Sensor Module BC.AG.SS001093	$759.55
27	M30-HC02050080-070020-5103-Y_01 YC.WJ.LL000211	$2.05
28	Quad Vision Sensor Cover Plate YC.JG.MQ003804	$6.65
