T100 M1M3 Small Arm

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

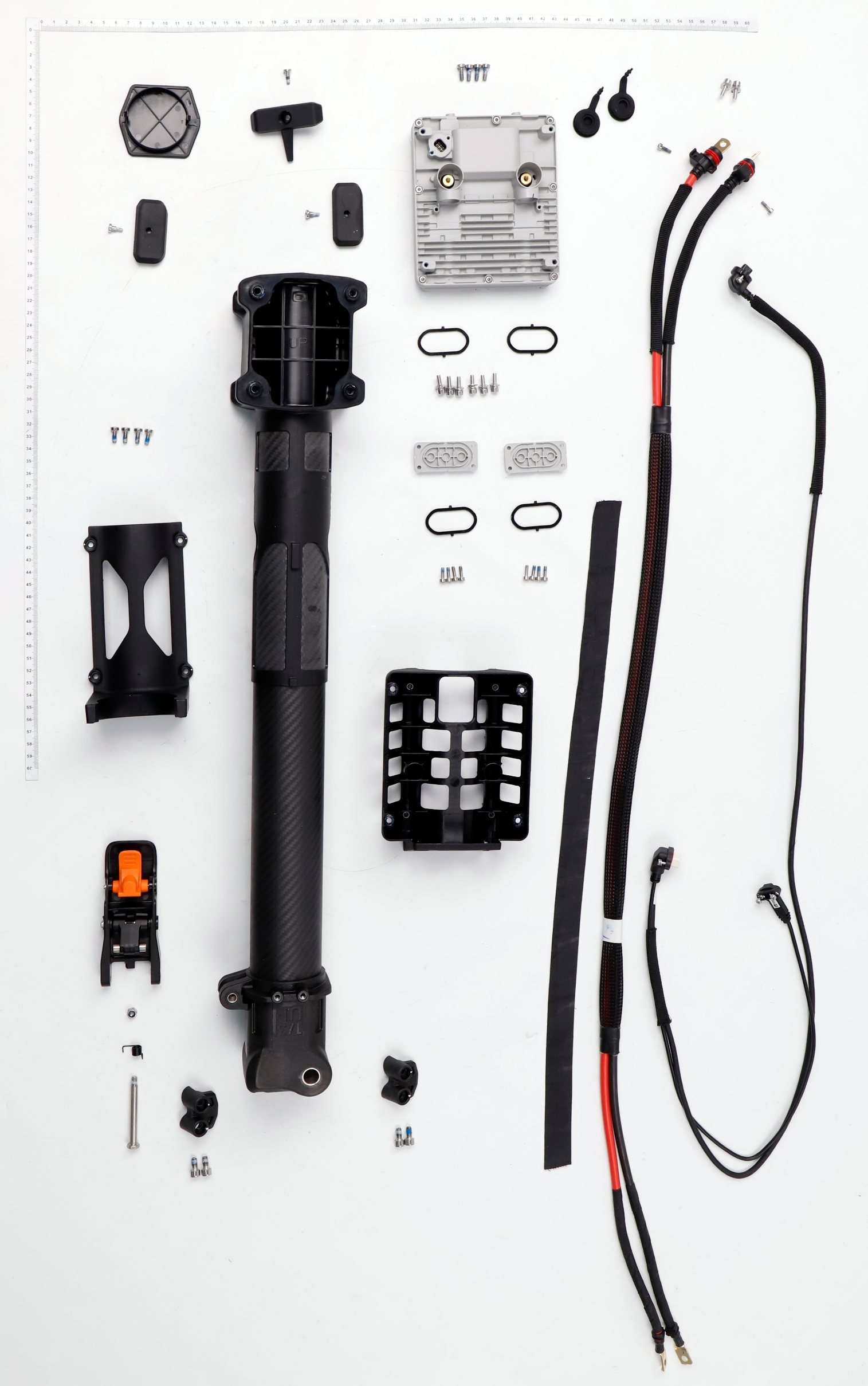

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.

No.	Part	$ Each (inc. GST)
1	ESC Module BC.AG.SS001189	$753.25
2	Screw (M30-HC00930058-060030-5103-Y) YC.ST.LL000732	$0.65
3	Motor Cable Clamp YC.JG.ZS006704	$6.65
4	Aircraft Arm End Cap YC.JG.ZS006705	$6.65
5	Aircraft Arm Anti-Collision Pad YC.JG.MY001951	$6.65
6	Screw (M30-HC00930058-060030-5103-Y) YC.ST.LL000732	$0.65
7	M1 & M3 Small Aircraft Arm BC.AG.SS001100	$198.00
8	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232	$2.05
9	Aircraft Arm ESC Base Fixing Piece YC.JG.ZS006702	$12.00
10	Aircraft Arm Buckle Module BC.AG.SS001099	$112.00
11	Nut ( M50-HN078050-5103) YC.ST.LM000026	$2.50
12	Buckle Torsion Spring YC.JG.TT000278	$1.35
13	Pin Shaft (57.1 mm) YC.JG.LD000124	$1.35
14	Aircraft Arm Limit Block YC.JG.ZS006673	$6.65
15	Screw (M50-HC01000082-087052-5103-Y) YC.ST.LL000771	$1.35
16	Aircraft Arm ESC Base YC.JG.ZS006701	$25.25
17	Duct Tape YC.JG.MQ002156	—
18	Screw M30-HC100100-55-85 YC.WJ.L00871	$2.05
19	Aircraft Arm Signal Cable (Front) YC.XC.XX001468	$58.00
20	ESC Three-Phase Waterproof Cover YC.JG.ZS006620	$6.65
21	Aircraft Arm Propulsion Cable (Front) YC.XC.DD000812	$94.00
22	Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667	$0.65
23	ESC Three-Phase Waterproof Cover Rubber Seal YC.JG.MY001908	$1.35
24	Screw M30-HC100100-55-85 YC.WJ.L00871	$2.05
25	Screw (M40-HCW01150115-070040-5103-N) YC.ST.LL000667	$0.65
26	ESC Waterproof Seal Plug YC.JG.MY001907	$6.65
27	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232	$2.05

Can't spot your part? Search by part number on the search page or call 1300 916 075.
