T100 Impeller Pump
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.

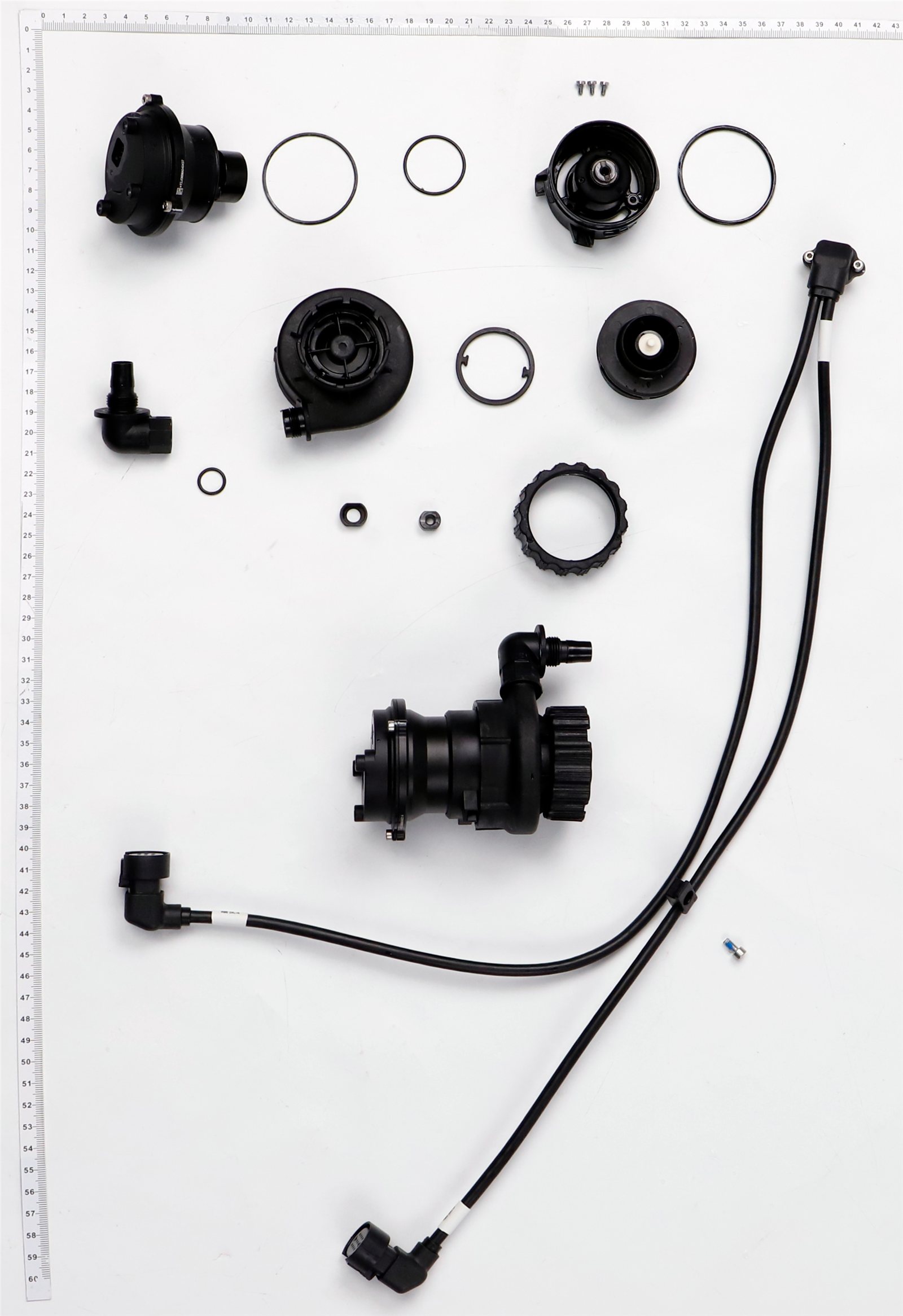

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Sealing Ring (OD=31.4 mm) YC.JG.MY001315 | $3.15 | |
| 2 | Motor Sealing Ring (OD= 46.8 mm) YC.JG.MY001828 | $10.60 | |
| 3 | Impeller Pump Motor BC.AG.SS001033 | $453.00 | |
| 4 | Pump Shell YC.JG.ZS006166 | $22.55 | |
| 5 | Impeller Pump Curving Connector YC.JG.ZS006175 | $7.55 | |
| 6 | Curving Connector Sealing Ring YC.JG.MY001830 | $9.00 | |
| 7 | Ceramic Rubber Pad YC.JG.MY001327 | $2.00 | |
| 8 | Ceramic Gasket YC.JG.FM000157 | — | |
| 9 | Screw M40-HC080080-68-85 YC.WJ.L01234 | $3.60 | |
| 10 | Water Outlet Rotation Cover YC.JG.ZS002233 | $3.65 | |
| 11 | Sprinkler Adapter Cable YC.XC.XX001409 | $66.00 | |
| 12 | Impeller Module BC.AG.SS001032 | $68.00 | |
| 13 | Y-tee Part Sealing Pad YC.JG.MY001053 | $6.00 | |
| 14 | Pump Sealing Ring YC.JG.MY001052 | $11.95 | |
| 15 | Spacing Sleeve YC.JG.ZS006167 | $22.55 | |
| 16 | Screw (M25-HC00500050-050020-5104-N) YC.ST.LL000717 | $0.65 | |
| Impeller Pump Motor BC.AG.SS000543 | $429.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
